T18-2 Series: Diffuse Reflective With Pot (T18-2VPDLIR-2M)

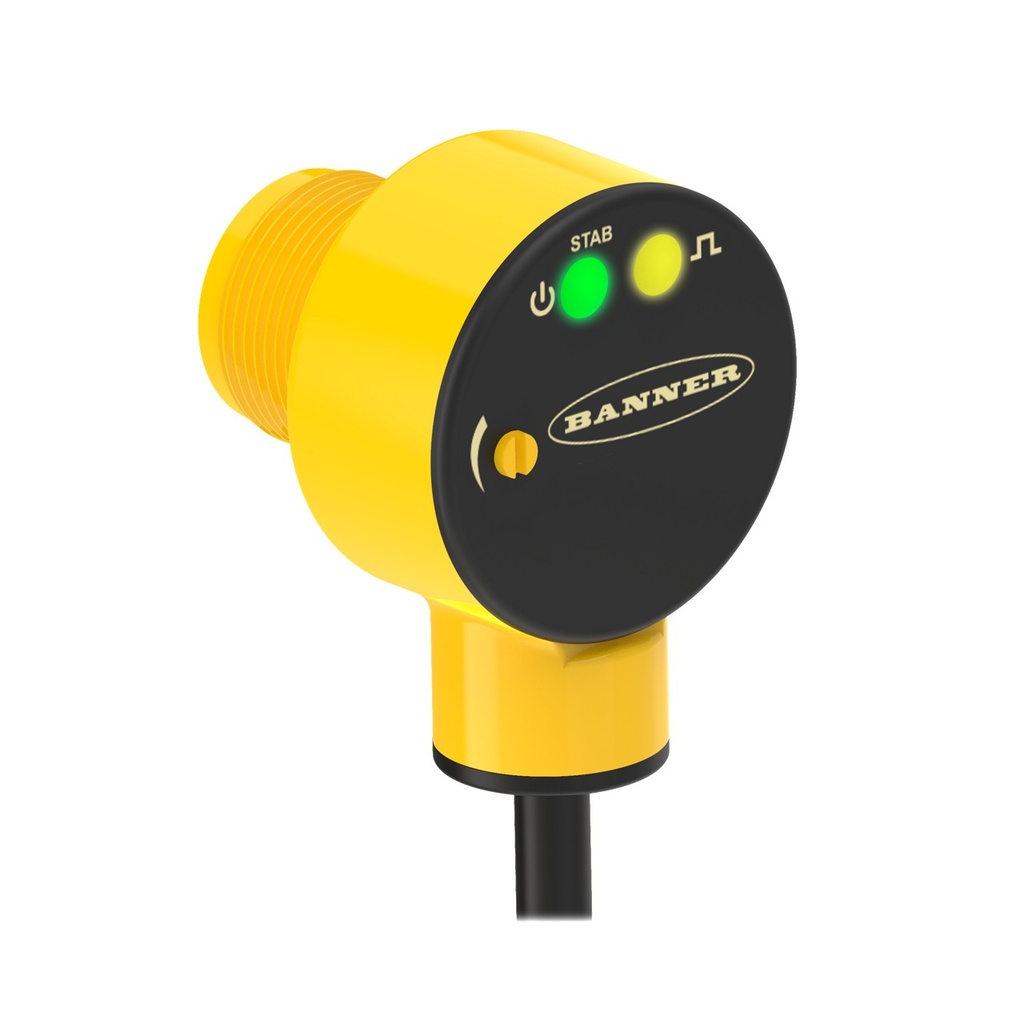

Representative photo. Please check item description for details.

T18-2 Series: Diffuse Reflective With Pot (T18-2VPDLIR-2M)

https://www.branom.com/web/image/product.template/204631/image_1920?unique=c26756c
(0 review)

Features:

    T18-2 Series: Diffuse Reflective with Pot; IR; Range: 750 mm; Input: 10-30 V dc; Outputs: complementary PNP; Connection: 4-conductor 2 m PVC Cable
    • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 500 ms
  • Ingress Protection: IP67/68/69
  • Repeatability (µs): 100
  • Sensing Beam: Infrared LED
  • Sensing Beam Wavelength: 850
  • Housing Style: Barrel
  • Max Sensing Distance: 750 mm
  • Sensing Mode (Detailed): Diffuse
  • Sensing Mode (General): Proximity
  • Max Relative Humidity: 95% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Washdown Rated: Yes
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: No
  • Feature: Audible: No
  • Feature: Chemical Resistant: Yes
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 1.5 ms
  • Operation: Light/Dark Operate
  • Adjustments: Potentiometer
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: Yes
  • Input/Output: Discrete
  • Barrel Diameter: 18 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Cable
  • NEMA / UL: NEMA 6P
  • Cord/Cable Length: 2 m
  • Indicator Type: Indicator LED
