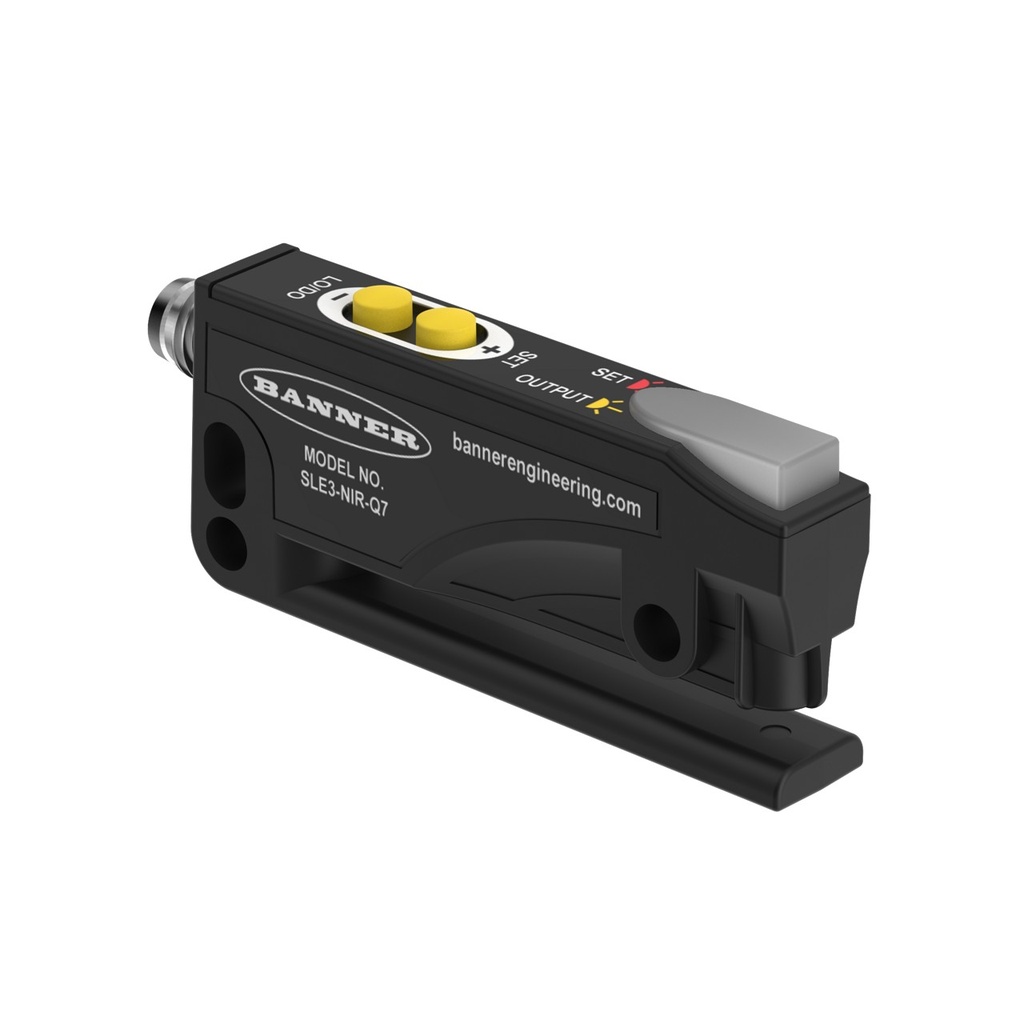

Sle3 Series: Label Sensor (SLE3-NIR-Q7)
Representative photo. Please check item description for details.

Sle3 Series: Label Sensor (SLE3-NIR-Q7)

https://www.branom.com/web/image/product.template/204554/image_1920?unique=c26756c
(0 review)

Features:

    SLE3 Series: Label Sensor; Slot width: 3 mm; Input: 4.75-30 V dc; Output: NPN; Integral Pico M8 4-pin
    • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: N/A
  • Power Supply: 4.75-30 VDC
  • Ingress Protection: IP65
  • Housing Style: Label
  • Max Sensing Distance: 3 mm
  • Sensing Mode (Detailed): Emitter/Receiver Pair
  • Number of Beams: 1
  • Housing Material_: Polycarbonate
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M8
  • Output: NPN
  • Number of Pins: 4
  • Output Response Time: 0.04 ms
  • Operation: Light/Dark Operate
  • Adjustments: Teach Button
  • Feature: Remote Teach: Yes
  • Connection Type: Integral QD
  • Indicator Type: LED
  • Max Sensing Range: 3 mm
  • Slot Depth/Array Length (mm): 44 mm
  • Slot Overall Depth (mm): 44 mm

$ 137.00 137.0 USD $ 137.00

$ 137.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
