World-Beam Q20 Series: Long Range Diffuse (Ir) (Q20RPDXLQ5-2000)

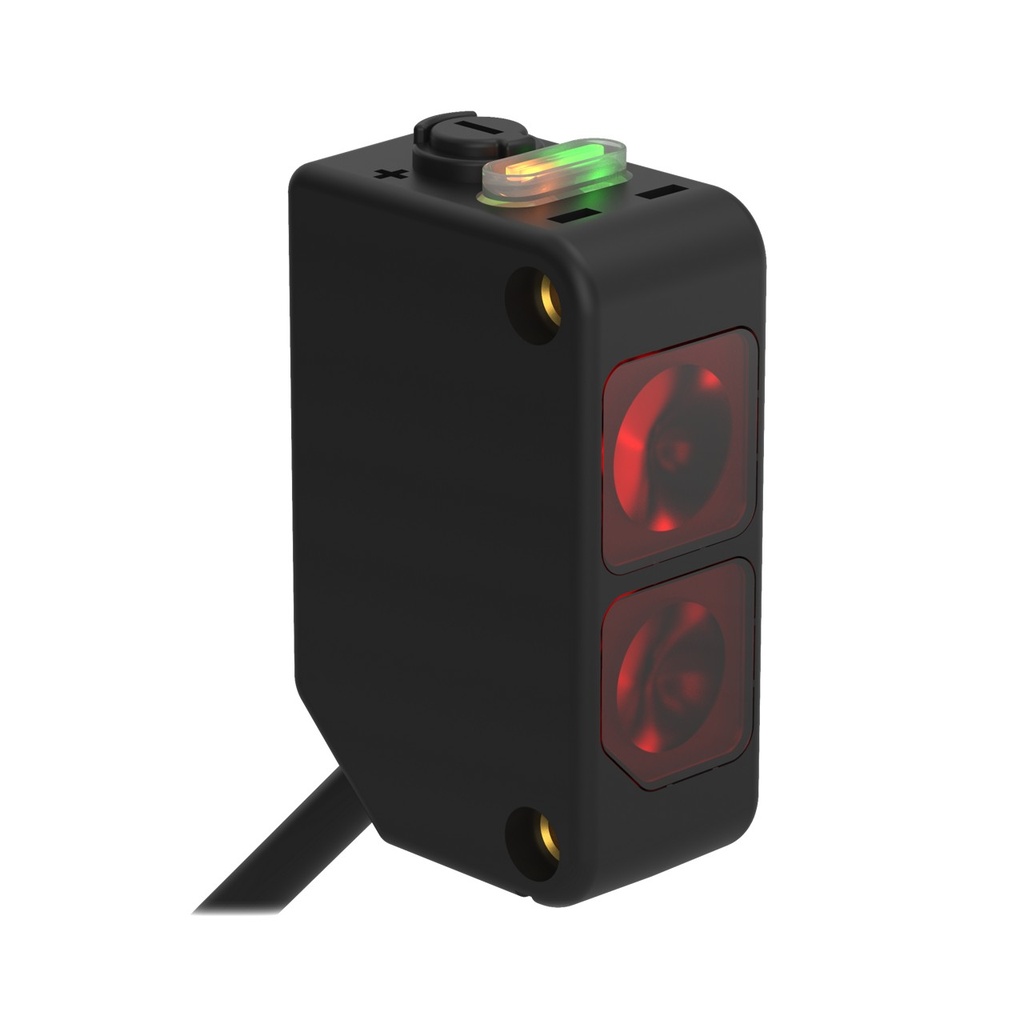

Representative photo. Please check item description for details.

World-Beam Q20 Series: Long Range Diffuse (Ir) (Q20RPDXLQ5-2000)

https://www.branom.com/web/image/product.template/204088/image_1920?unique=c26756c
(0 review)

Features:

    WORLD-BEAM Q20 Series: Long Range Diffuse (IR); Range: 1500 mm; Input 10-30 V dc; Output: Dark Operate PNP; Black Only; 2 meter pigtail Euro-style Quick Disconnect Connector
    • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 60 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 155
  • Sensing Beam: Infrared LED
  • Sensing Beam Wavelength: 850
  • Housing Style: Rectangular
  • Max Sensing Distance: 1500 mm
  • Sensing Mode (Detailed): Diffuse
  • Sensing Mode (General): Proximity
  • Max Relative Humidity: 95% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 0.8 ms
  • Operation: Dark Operate
  • Adjustments: Potentiometer
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Pigtail QD
  • NEMA / UL: NEMA 6
  • Cord/Cable Length: 2 m
  • Indicator Type: LED

$ 117.00 117.0 USD $ 117.00

$ 117.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1

    Share

    Features:

      WORLD-BEAM Q20 Series: Long Range Diffuse (IR); Range: 1500 mm; Input 10-30 V dc; Output: Dark Operate PNP; Black Only; 2 meter pigtail Euro-style Quick Disconnect Connector
      • Min Operating Temperature: -20 °C
    • Max Operating Temperature: 60 °C
    • Lens Material: Acrylic
    • Power Supply: 10-30 VDC
    • Delay at Power-Up: 100 ms
    • Ingress Protection: IP67
    • Repeatability (µs): 155
    • Sensing Beam: Infrared LED
    • Sensing Beam Wavelength: 850
    • Housing Style: Rectangular
    • Max Sensing Distance: 1500 mm
    • Sensing Mode (Detailed): Diffuse
    • Sensing Mode (General): Proximity
    • Max Relative Humidity: 95% @ 50 °C
    • Housing Material_: Thermoplastic
    • Feature: Hazardous Area: No
    • DeviceNet: No
    • Feature: IO Link: No
    • Feature: Quick Disconnect: Yes
    • Feature: Audible: No
    • Quick Disconnect Type: M12
    • Feature: Chemical Resistant: No
    • Feature: Water Detection: No
    • Number of Pins: 4
    • Output Response Time: 0.8 ms
    • Operation: Dark Operate
    • Adjustments: Potentiometer
    • Feature: Timing (Hold/Delay): No
    • Feature: Encapsulated: No
    • Input/Output: Discrete
    • Feature: Remote Teach: No
    • Feature: Intrinsically Safe: No
    • Connection Type: Pigtail QD
    • NEMA / UL: NEMA 6
    • Cord/Cable Length: 2 m
    • Indicator Type: LED
