Representative photo. Please check item description for details.

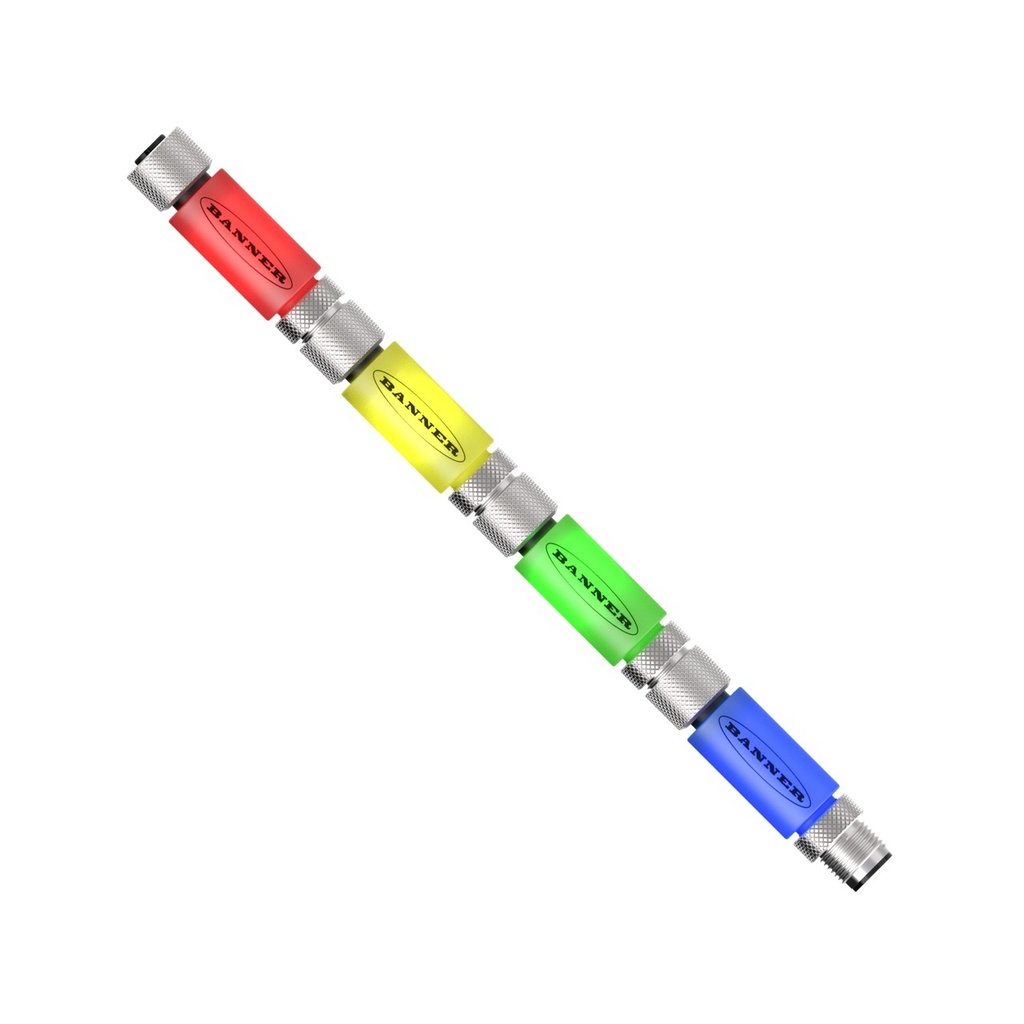

Tl15 Series Kit: 4-Color In-Line Status Indicator (TL15BGYRQ)
Features:
- TL15 Series Kit: 4-Color In-Line Status Indicator; Voltage: 12 or 24 V dc; Housing: PVC; IP67; Input: PNP; Colors: Blue, Green, Yellow, Red; Male-Female M12 5-pin Quick-Disconnect Connector
- Power: DC
- Feature: Display: No
- Feature: Display Lighting: No
- Max Current Color: 80 mA
- Min Operating Temperature: -40 °C
- Max Operating Temperature: 50 °C
- Power Source: VDC
- Ingress Protection: IP66/67/68
- Housing Style: Barrel - Straight
- Max Relative Humidity: 95% @ 50 °C (NC)
- Housing Material_: PVC
- Feature: Hazardous Area: No
- Feature: IO Link: No
- Feature: Modbus RTU: No
- Physical Dimensions: 15.0 X 58.0 mm
- Feature: Wireless: No
- Feature: Indication: Yes
- Color Option 3: Yellow
- Supply Voltage: 12/24 V DC
- Color Option 2: Green
- Feature: Quick Disconnect: Yes
- Lumens Color 1: 3
- Animation Option 3: Solid On
- Color Technology: Standard LED
- Feature: Audible: No
- Color Option 1: Blue
- Animation Option 2: Solid On
- Color 1 - Wavelength/Color Temp/Coordinates: 470 nm
- Color Input Control: Individual (One wire/color, same number of colors as input wires)
- Multi-Color Device: Simultaneous Colors On
- Animation Option 1: Solid On
- Quick Disconnect Type: M12
- Number of Colors / Segments: 4
- Color 3 - Wavelength/Color Temp/Coordinates: 620 nm
- Lumens Color 2: 18
- Lumens Color 3: 10
- Product Size (mm): 15 mm
- Color 2 - Wavelength/Color Temp/Coordinates: 535 nm
- Number of Input Pins/Conductors: 5
- Input Type: Bimodal (PNP/NPN)
- Max Op. Relative NC Humidity: 95% @ 50 °C
- Feature: Pro-Editor Compatible (Discrete): No
- Mounting Thread: No Thread
- Feature: Chemical Resistant: No
- Storage Temp: -40 to 70 °C
- Color Option 4: Red
- Color 4 - Wavelength/Color Temp/Coordinates: 590 nm
- Lumens Color 4: 22
- Number of Tower Light Segments: 4
- Feature: Cascade: Yes
- Animation Option 4: Solid On
- Connection Type: Integral QD
Features:
- TL15 Series Kit: 4-Color In-Line Status Indicator; Voltage: 12 or 24 V dc; Housing: PVC; IP67; Input: PNP; Colors: Blue, Green, Yellow, Red; Male-Female M12 5-pin Quick-Disconnect Connector
- Power: DC
- Feature: Display: No
- Feature: Display Lighting: No
- Max Current Color: 80 mA
- Min Operating Temperature: -40 °C
- Max Operating Temperature: 50 °C
- Power Source: VDC
- Ingress Protection: IP66/67/68
- Housing Style: Barrel - Straight
- Max Relative Humidity: 95% @ 50 °C (NC)
- Housing Material_: PVC
- Feature: Hazardous Area: No
- Feature: IO Link: No
- Feature: Modbus RTU: No
- Physical Dimensions: 15.0 X 58.0 mm
- Feature: Wireless: No
- Feature: Indication: Yes
- Color Option 3: Yellow
- Supply Voltage: 12/24 V DC
- Color Option 2: Green
- Feature: Quick Disconnect: Yes
- Lumens Color 1: 3
- Animation Option 3: Solid On
- Color Technology: Standard LED
- Feature: Audible: No
- Color Option 1: Blue
- Animation Option 2: Solid On
- Color 1 - Wavelength/Color Temp/Coordinates: 470 nm
- Color Input Control: Individual (One wire/color, same number of colors as input wires)
- Multi-Color Device: Simultaneous Colors On
- Animation Option 1: Solid On
- Quick Disconnect Type: M12
- Number of Colors / Segments: 4
- Color 3 - Wavelength/Color Temp/Coordinates: 620 nm
- Lumens Color 2: 18
- Lumens Color 3: 10
- Product Size (mm): 15 mm
- Color 2 - Wavelength/Color Temp/Coordinates: 535 nm
- Number of Input Pins/Conductors: 5
- Input Type: Bimodal (PNP/NPN)
- Max Op. Relative NC Humidity: 95% @ 50 °C
- Feature: Pro-Editor Compatible (Discrete): No
- Mounting Thread: No Thread
- Feature: Chemical Resistant: No
- Storage Temp: -40 to 70 °C
- Color Option 4: Red
- Color 4 - Wavelength/Color Temp/Coordinates: 590 nm
- Lumens Color 4: 22
- Number of Tower Light Segments: 4
- Feature: Cascade: Yes
- Animation Option 4: Solid On
- Connection Type: Integral QD
