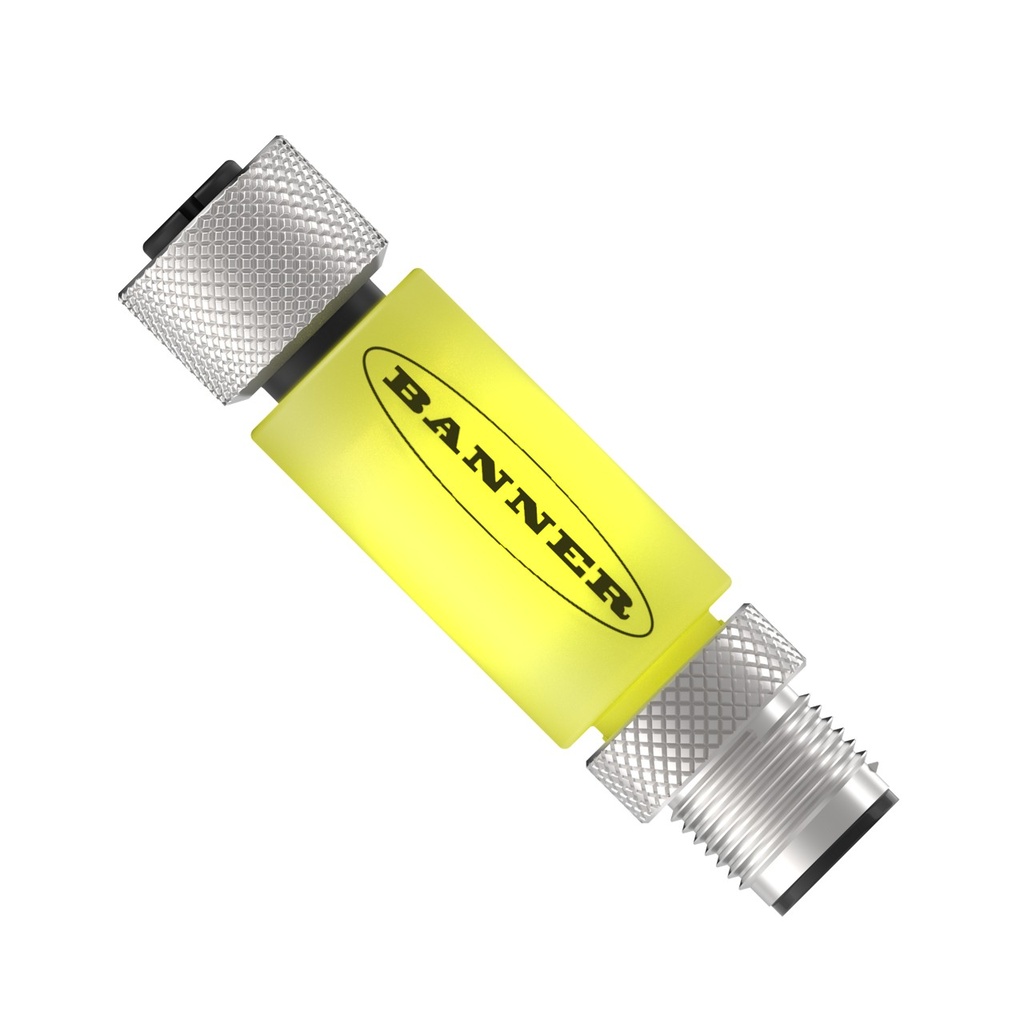

Tl15 Series: 1-Color In-Line Status Indicator Segment (TL15Y2Q)
Representative photo. Please check item description for details.

Tl15 Series: 1-Color In-Line Status Indicator Segment (TL15Y2Q)

https://www.branom.com/web/image/product.template/204754/image_1920?unique=c26756c
(0 review)

Features:

    TL15 Series: 1-Color In-Line Status Indicator Segment; Voltage: 12 or 24 V dc; Housing: PVC; IP67; Input: PNP; Colors: Yellow, Pin 2; Male-Female M12 5-pin Quick-Disconnect Connector
  • Power: DC
  • Feature: Display: No
  • Feature: Display Lighting: No
  • Max Current Color: 80 mA
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 50 °C
  • Power Source: VDC
  • Ingress Protection: IP66/67/68
  • Housing Style: Barrel - Straight
  • Max Relative Humidity: 95% @ 50 °C (NC)
  • Housing Material_: PVC
  • Feature: Hazardous Area: No
  • Feature: IO Link: No
  • Feature: Modbus RTU: No
  • Physical Dimensions: 15.0 X 58.0 mm
  • Feature: Wireless: No
  • Feature: Indication: Yes
  • Supply Voltage: 12/24 V DC
  • Feature: Quick Disconnect: Yes
  • Lumens Color 1: 10
  • Color Technology: Standard LED
  • Feature: Audible: No
  • Color Option 1: Yellow
  • Color 1 - Wavelength/Color Temp/Coordinates: 620 nm
  • Color Input Control: Individual (One wire/color, same number of colors as input wires)
  • Multi-Color Device: Single Color On
  • Animation Option 1: Solid On
  • Quick Disconnect Type: M12
  • Number of Colors / Segments: 1
  • Product Size (mm): 15 mm
  • Number of Input Pins/Conductors: 5
  • Input Type: Bimodal (PNP/NPN)
  • Max Op. Relative NC Humidity: 95% @ 50 °C
  • Feature: Pro-Editor Compatible (Discrete): No
  • Mounting Thread: No Thread
  • Feature: Chemical Resistant: No
  • Storage Temp: -40 to 70 °C
  • Number of Tower Light Segments: 1
  • Feature: Cascade: Yes
  • Connection Type: Integral QD

$ 44.00 44.0 USD $ 44.00

$ 44.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
