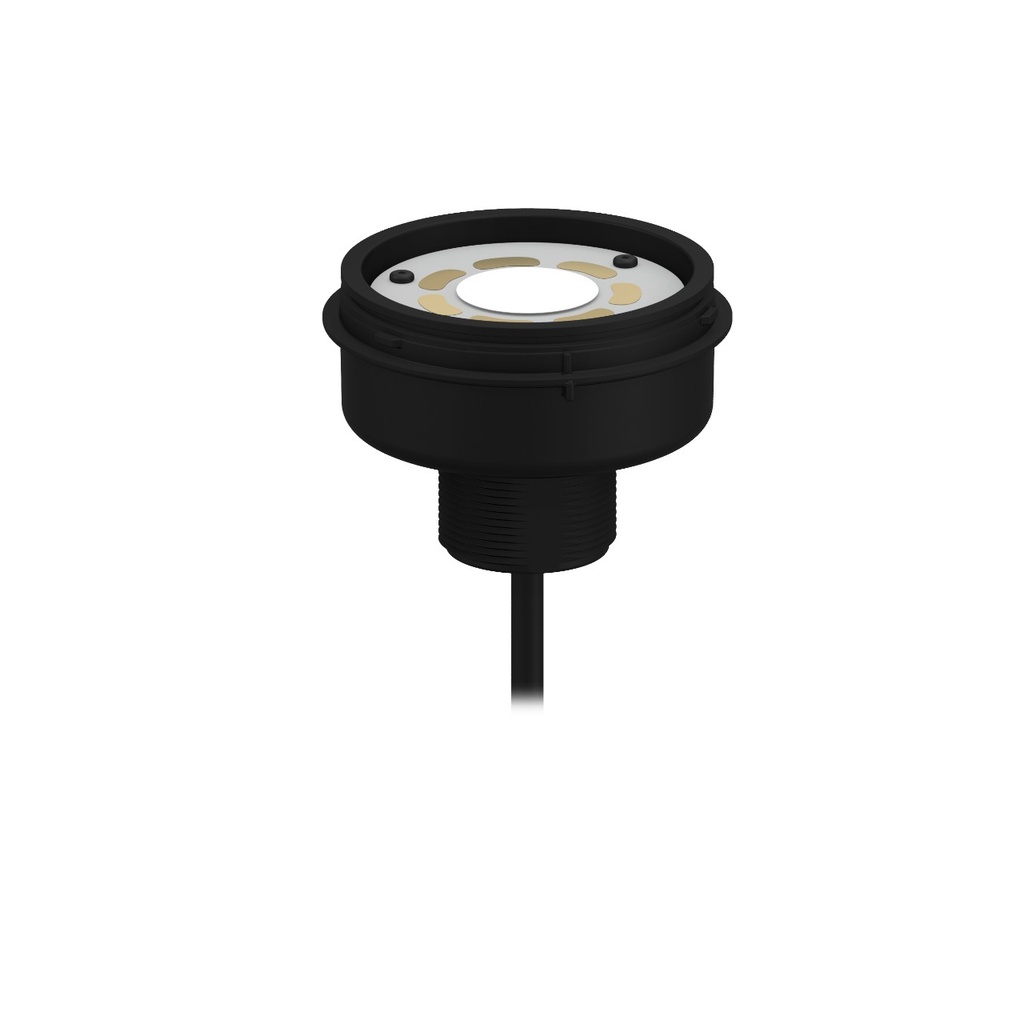

Tl70 Pro With Io-Link Base Module (B-TL70PK-QP)
Representative photo. Please check item description for details.

Tl70 Pro With Io-Link Base Module (B-TL70PK-QP)

https://www.branom.com/web/image/product.template/205412/image_1920?unique=c26756c
(0 review)

Features:

    TL70 Pro with IO-Link Base Module; Use with TL70 Pro Light Module; Voltage: 18-30 V dc; Environmental Rating: IP65; Euro 4-pin 150 mm (6 in) PVC Pigtail Connector; Black Housing
    • Power: DC
  • Feature: Display: No
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 50 °C
  • Power Source: VDC
  • Ingress Protection: IP65
  • Housing Style: Segment - Base
  • Max Relative Humidity: 95% @ 50 °C (NC)
  • Housing Material_: Polycarbonate
  • Feature: Hazardous Area: No
  • Feature: IO Link: Yes
  • Feature: Modbus RTU: No
  • Physical Dimensions: 70.0 x 47.5 mm
  • Feature: Wireless: No
  • Feature: Indication: Yes
  • Supply Voltage: 18-30 VDC
  • Feature: Quick Disconnect: Yes
  • Color Technology: RGB Configurable
  • Feature: Audible: No
  • Housing Color: Black
  • Color Input Control: Communication Protocol
  • Quick Disconnect Type: M12
  • Product Size (mm): 70 mm
  • Number of Input Pins/Conductors: 4
  • Input Type: Communication Protocol
  • Max Op. Relative NC Humidity: 95% @ 50 °C
  • Feature: Pro-Editor Compatible (Discrete): No
  • Mounting Thread: M30 x 1.5
  • Max Input Response Time (ms): 20 ms
  • Feature: Chemical Resistant: No
  • Storage Temp: -40 to 70 °C
  • Feature: Non-Illuminated: Yes
  • Connection Type: Pigtail QD
  • NEMA / UL: NEMA 4X
  • Cord/Cable Length: 0.15 m

$ 93.00 93.0 USD $ 93.00
