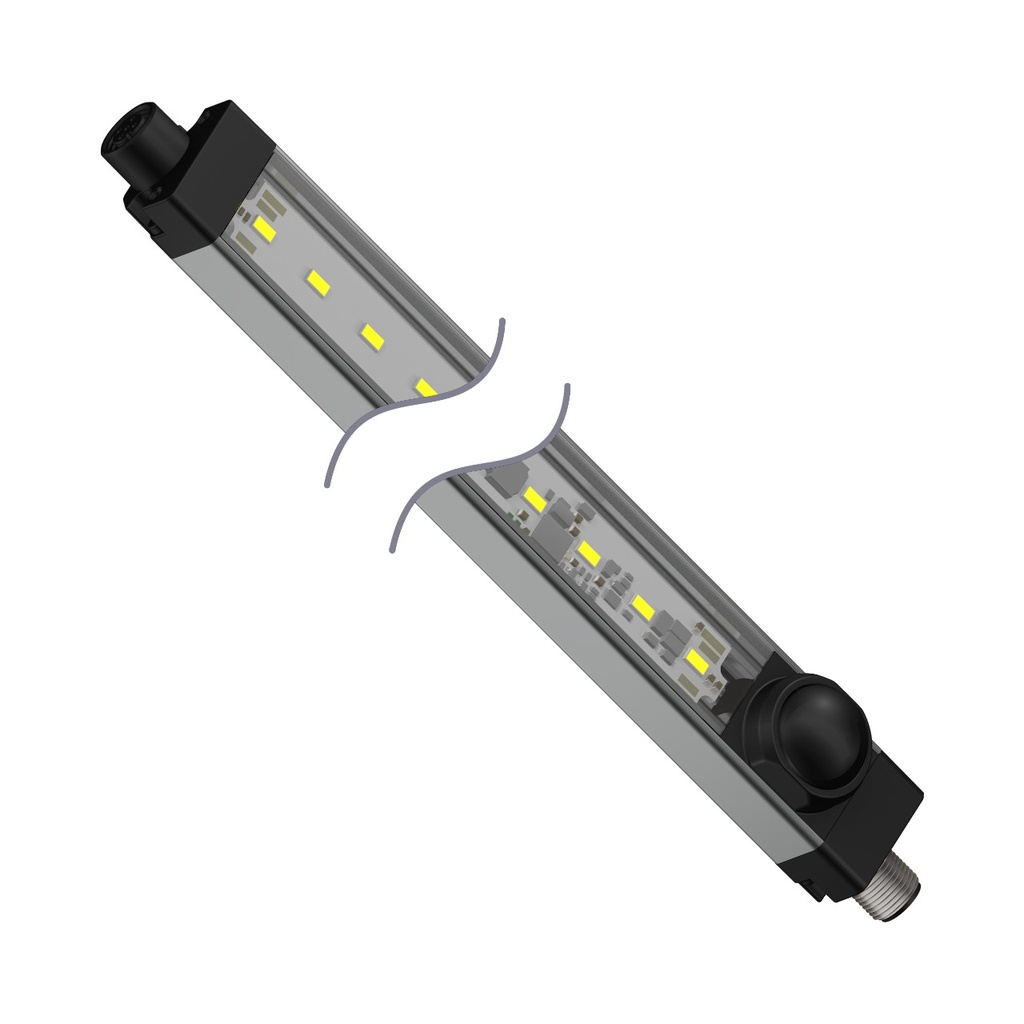

Hls28 Hazardous Enclosure Strip Light (HLS28CW570XMQ)
Representative photo. Please check item description for details.

Hls28 Hazardous Enclosure Strip Light (HLS28CW570XMQ)

https://www.branom.com/web/image/product.template/202651/image_1920?unique=c26756c
(0 review)

Features:

    HLS28 Hazardous Enclosure Strip Light; Motion; Clear Window; 570 mm; 12-30 V dc; IP50; Color:White; Cascadable; M12 4-pin Integral Connector
  • Power: DC
  • Feature: Display: No
  • Feature: Display Lighting: No
  • Max Current Color: 1600 mA
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 60 °C
  • Power Source: VDC
  • Ingress Protection: IP50
  • Housing Style: Linear Strip
  • Housing Material_: Aluminum
  • Feature: Hazardous Area: Yes
  • Feature: IO Link: No
  • Feature: Modbus RTU: No
  • Physical Dimensions: 647.0 x 28.0 x 35.9 mm
  • Feature: Wireless: No
  • Supply Voltage: 12-30 VDC
  • Feature: Quick Disconnect: Yes
  • Lumens Color 1: 1600
  • Color Technology: Standard LED
  • Feature: Audible: No
  • Color Option 1: Cool White
  • Color 1 - Wavelength/Color Temp/Coordinates: 6500K (Cool)
  • Color Input Control: Individual (One wire/color, same number of colors as input wires)
  • Animation Option 1: Solid On
  • Quick Disconnect Type: M12
  • Number of Colors / Segments: 1
  • Product Size (mm): 28 mm
  • Number of Input Pins/Conductors: 4
  • Feature: Pro-Editor Compatible (Discrete): No
  • Mounting Thread: No Thread
  • Feature: Chemical Resistant: No
  • Storage Temp: -40 to 70 °C
  • Feature: Cascade: Yes
  • Illuminated Length (LxWxH): 570.0 mm
  • Illumination Switch Function: Motion Activated
  • Feature: Illumination: Yes
  • Connection Type: Integral QD

$ 408.00 408.0 USD $ 408.00

$ 408.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
