Emergency Stop: Flush Mounting 40Mm Push Button (SSA-EB1PLS1-12ED1Q8)
Representative photo. Please check item description for details.

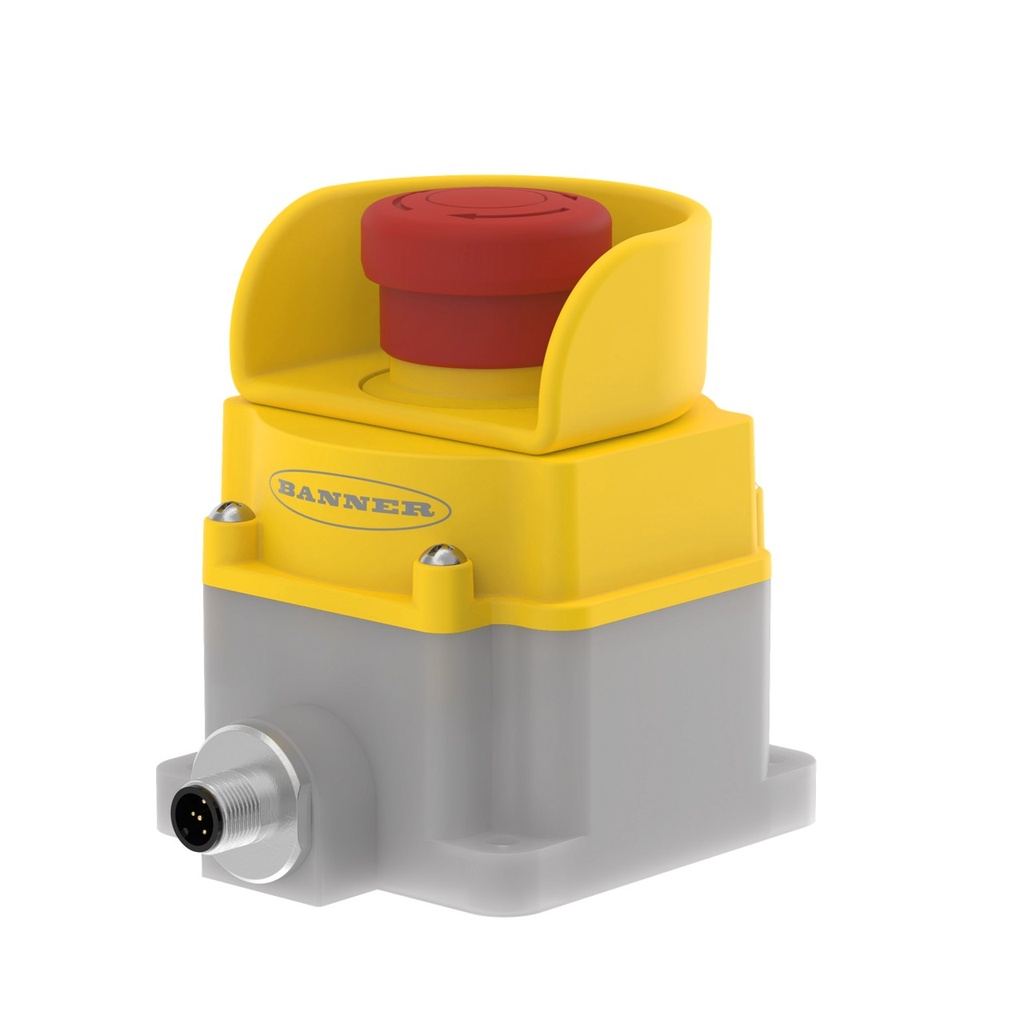

Emergency Stop: Flush Mounting 40Mm Push Button (SSA-EB1PLS1-12ED1Q8)

https://www.branom.com/web/image/product.template/202157/image_1920?unique=c26756c
(0 review)

Features:

    Emergency Stop: Flush Mounting 40mm Push Button; Environ. Rating: IP65; Lighted; Color: Red Solid; 2 N.C. safety contacts; 1 N.O. aux. contacts; 8 Pin Euro-style Quick-Disconnect Connector; ESC-1-YW Button Shroud Installed
    • Valve: Actuation: Twist/Pull-to-Release
  • Min Operating Temperature: -25 °C
  • Max Operating Temperature: 55 °C
  • Ingress Protection: IP65
  • Housing Style: Base
  • Device Type: Push Button
  • Housing Material_: Polycarbonate
  • Light Color: Red
  • Physical Dimensions: 103 x 110 x 81 mm
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M12
  • Contact Quantity: 2 NC, 1 NO
  • Actuated Color: Red
  • Actuator/Button Material: Thermoplastic
  • Contact Rating: 2 A @ 24 VDC
  • Mounting Thread/Style: Flat
  • Feature: Illuminated: Yes
  • Feature: Lockable: No
  • Illumination Type: Base
  • Armed Color (Solid): Off
  • Connection Type: M12
  • Button Diameter: 40 mm
  • Feature: Button Shroud: Yes
  • Stop Signal Color (Solid): Red
  • Feature: Actuation: Twist/Pull-to-Release

$ 282.00 282.0 USD $ 282.00

$ 282.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
