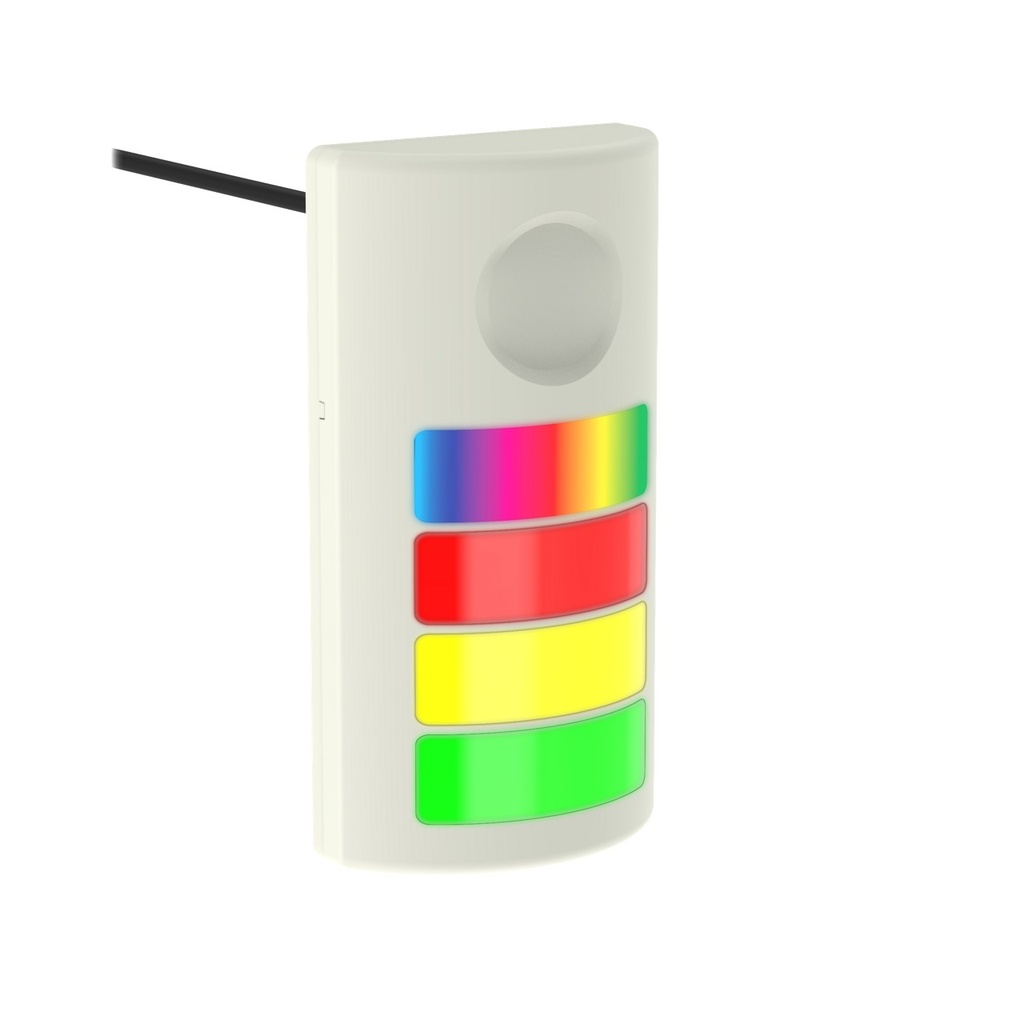

Tlf100 Pro With Pro Editor (TLF100P4ACQP)

(0 review)

Features:

Power: DC

Feature: Display: No
Feature: Display Lighting: No
Max Current Color: 150 mA
Max Current - Audible Alarm (mA): 56 mA
Min Operating Temperature: -40 °C
Max Operating Temperature: 50 °C
Power Source: VDC
Ingress Protection: IP65/69K
Housing Style: Flat - Tower
Max Relative Humidity: 95% @ 50 °C (NC)
Housing Material_: Polycarbonate
Feature: Hazardous Area: No
Feature: IO Link: No
Feature: Modbus RTU: No
Physical Dimensions: 100.0 x 190.0 x 42.2 mm
Feature: Wireless: No
Feature: Indication: Yes
Color Option 3: Yellow
Max Audible Intensity: 94 dB @ 1 m
Supply Voltage: 12-30 VDC
Color Option 2: Green
Feature: Quick Disconnect: Yes
Lumens Color 1: 1.4
Min Audible Intensity @ 1m: 84 dB
Color Technology: RGB Configurable
Feature: Audible: Yes
Color Option 1: Blue
Color 1 - Wavelength/Color Temp/Coordinates: 467 nm
Housing Color: Gray
Color Input Control: Individual (One wire/color, same number of colors as input wires)
Multi-Color Device: Simultaneous Colors On
Quick Disconnect Type: M12
Audible Operating Frequency (kHz): 3
Number of Colors / Segments: 4
Color 3 - Wavelength/Color Temp/Coordinates: 578 nm
Lumens Color 2: 7.5
Lumens Color 3: 9.8
Product Size (mm): 100 mm
Color 2 - Wavelength/Color Temp/Coordinates: 532 nm
Number of Input Pins/Conductors: 8
Input Type: Bimodal (PNP/NPN)
Max Op. Relative NC Humidity: 95% @ 50 °C
Feature: Pro-Editor Compatible (Discrete): Yes
Mounting Thread: No Thread
Max Input Response Time (ms): 250 ms
Feature: Chemical Resistant: No
Audible Alarm Type: Programmable
Color Option 4: Red
Color 4 - Wavelength/Color Temp/Coordinates: 621 nm
Lumens Color 4: 3.7
Dimming Option: Programmable
Number of Tower Light Segments: 5
Feature: PFM Input: Yes
Connection Type: Pigtail QD
NEMA / UL: UL 4X
Cord/Cable Length: 0.15 m
