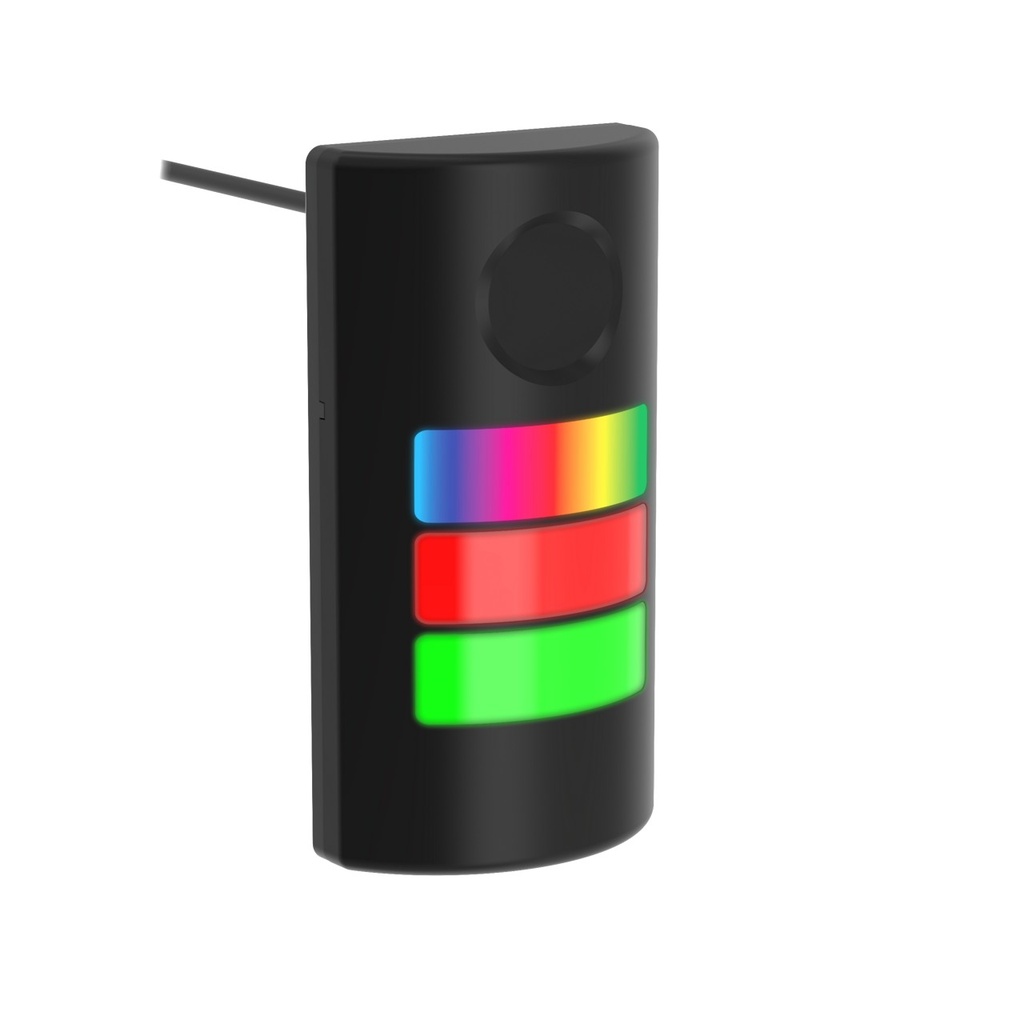

Tlf100 Pro With Pro Editor (TLF100P3QP)
Features:
- TLF100 Pro with Pro Editor; 3 Segment; Black Housing; 12-30 V dc; Environ. Rating: IP65; IP69K; Colors: Multicolor; 5-Pin M12 150 mm (6 in) PVC Pigtail
- Power: DC
- Feature: Display: No
- Feature: Display Lighting: No
- Max Current Color: 150 mA
- Max Current - Audible Alarm (mA): 56 mA
- Min Operating Temperature: -40 °C
- Max Operating Temperature: 50 °C
- Power Source: VDC
- Ingress Protection: IP65/69K
- Housing Style: Flat - Tower
- Max Relative Humidity: 95% @ 50 °C (NC)
- Housing Material_: Polycarbonate
- Feature: Hazardous Area: No
- Feature: IO Link: No
- Feature: Modbus RTU: No
- Physical Dimensions: 100.0 x 190.0 x 42.2 mm
- Feature: Wireless: No
- Feature: Indication: Yes
- Color Option 3: Red
- Supply Voltage: 12-30 VDC
- Color Option 2: Yellow
- Feature: Quick Disconnect: Yes
- Lumens Color 1: 7.5
- Color Technology: RGB Configurable
- Feature: Audible: No
- Color Option 1: Green
- Color 1 - Wavelength/Color Temp/Coordinates: 532 nm
- Housing Color: Black
- Color Input Control: Individual (One wire/color, same number of colors as input wires)
- Multi-Color Device: Simultaneous Colors On
- Quick Disconnect Type: M12
- Number of Colors / Segments: 3
- Color 3 - Wavelength/Color Temp/Coordinates: 621 nm
- Lumens Color 2: 9.8
- Lumens Color 3: 3.7
- Product Size (mm): 100 mm
- Color 2 - Wavelength/Color Temp/Coordinates: 578 nm
- Number of Input Pins/Conductors: 5
- Input Type: Bimodal (PNP/NPN)
- Max Op. Relative NC Humidity: 95% @ 50 °C
- Feature: Pro-Editor Compatible (Discrete): Yes
- Mounting Thread: No Thread
- Max Input Response Time (ms): 250 ms
- Feature: Chemical Resistant: No
- Dimming Option: Programmable
- Number of Tower Light Segments: 3
- Feature: PFM Input: Yes
- Connection Type: Pigtail QD
- NEMA / UL: UL 4X
- Cord/Cable Length: 0.15 m
