Laser Diffuse Time-Of-Flight Sensor (LTF12KC2LDQ-812262)

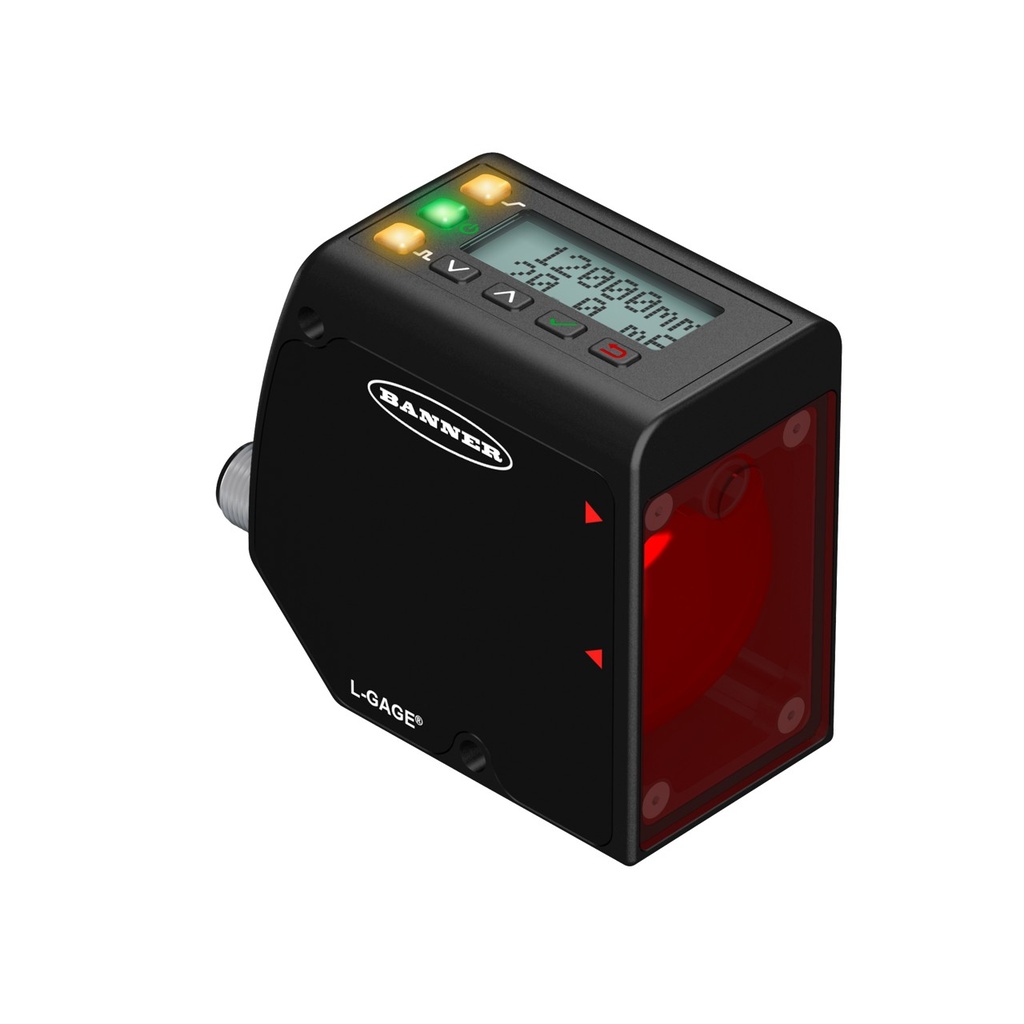

Representative photo. Please check item description for details.

Laser Diffuse Time-Of-Flight Sensor (LTF12KC2LDQ-812262)

https://www.branom.com/web/image/product.template/203820/image_1920?unique=c26756c
(0 review)

Features:

    Laser Diffuse Time-of-Flight Sensor; Range: 50-12000 mm; Input:12-30 V dc; Output 1: NPN/PNP Configurable; IO-Link; Output 2: NPN/PNP configurable; Class 2 Laser; Integral Quick-Disconnect; buttons locked out
  • Power: DC
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 55 °C
  • Power Supply: 12-30 VDC
  • Ingress Protection: IP67
  • Sensing Beam: Visible Red Laser
  • Housing Style: Rectangular
  • Max Sensing Distance: 12000 mm
  • Sensing Mode (Detailed): Time of Flight
  • Sensing Mode (General): Proximity
  • Device Type: Sensor
  • Housing Material_: Zinc Alloy Die-Cast
  • Laser Classification: Class 2
  • Feature: IO Link: Yes
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M12
  • Number of Pins: 5
  • Adjustments: Push Button; Remote Teach
  • Feature: Timing (Hold/Delay): Yes
  • Input/Output: Discrete
  • Min Response Time: 1.5 ms
  • Min Sensing Distance: 50 mm
  • Discrete (Switched) Outputs: 2 NPN/PNP Configurable
  • Feature: Remote Teach: Yes
  • Connection Type: Integral QD
  • NEMA / UL: NEMA 6
  • Feature: Pump-In/Pump-Out: Yes
  • Feature: Health/Marginal Signal Output: Yes
  • Feature: Laser Control: Yes
  • Feature: PFM Output: Yes
  • Max Ambient Light: 40000 lux

$ 702.00 702.0 USD $ 702.00

$ 702.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
