Heavy-Duty Emergency Stop Rope Pull (RP-RM83F-38LT-812250)

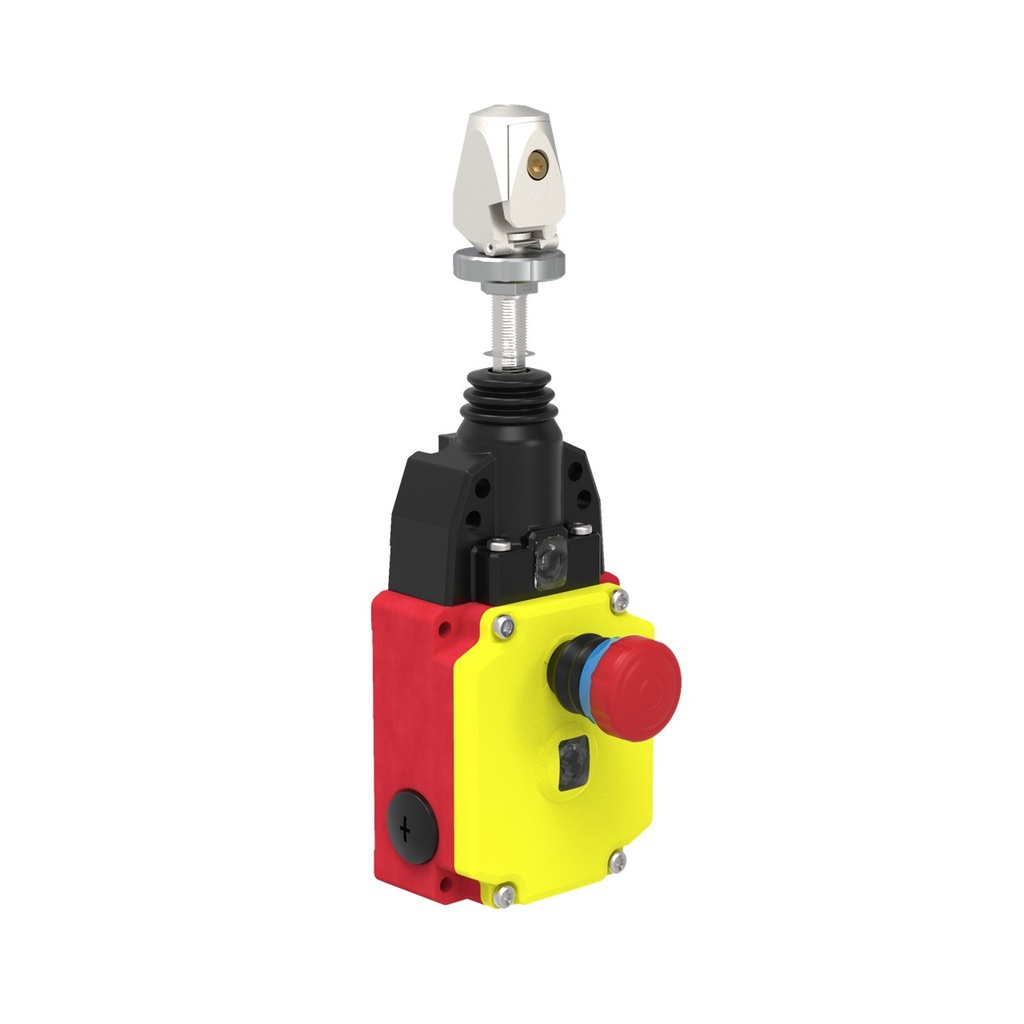

Representative photo. Please check item description for details.

Heavy-Duty Emergency Stop Rope Pull (RP-RM83F-38LT-812250)

https://www.branom.com/web/image/product.template/202670/image_1920?unique=c26756c
(0 review)

Features:

    Heavy-Duty Emergency Stop Rope Pull; Built-In Turnbuckle; 38 m Max Range; Integral E-stop button ; Latch Actuation; Installed SI-PL3T-R on CH2 side
    • Valve: Actuation: Latch
  • Min Operating Temperature: -30 °C
  • Max Operating Temperature: 80 °C
  • Ingress Protection: IP67
  • Housing Style: Limit Switch
  • Device Type: Rope Pull w/E-Stop Button
  • Housing Material_: Aluminum Alloy Die-Cast
  • Physical Dimensions: 282 x 120 x 88 mm
  • Feature: Quick Disconnect: No
  • Contact Quantity: 2 NO, 2 NC
  • Actuator/Button Material: Zinc Alloy Die-Cast
  • Contact Rating: 10 A @ 110 VAC; 6 A @ 24 VDC
  • Feature: Illuminated: Yes
  • Feature: Lockable: No
  • Illumination Type: Light Added
  • Attachment: Turnbuckle
  • Connection Type: Wiring Chamber
  • Button Diameter: 33 mm
  • Feature: Button Shroud: No
  • Max Cable Length: 37.5 m
  • Feature: Actuation: Latch

$ 374.00 374.0 USD $ 374.00

$ 374.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
