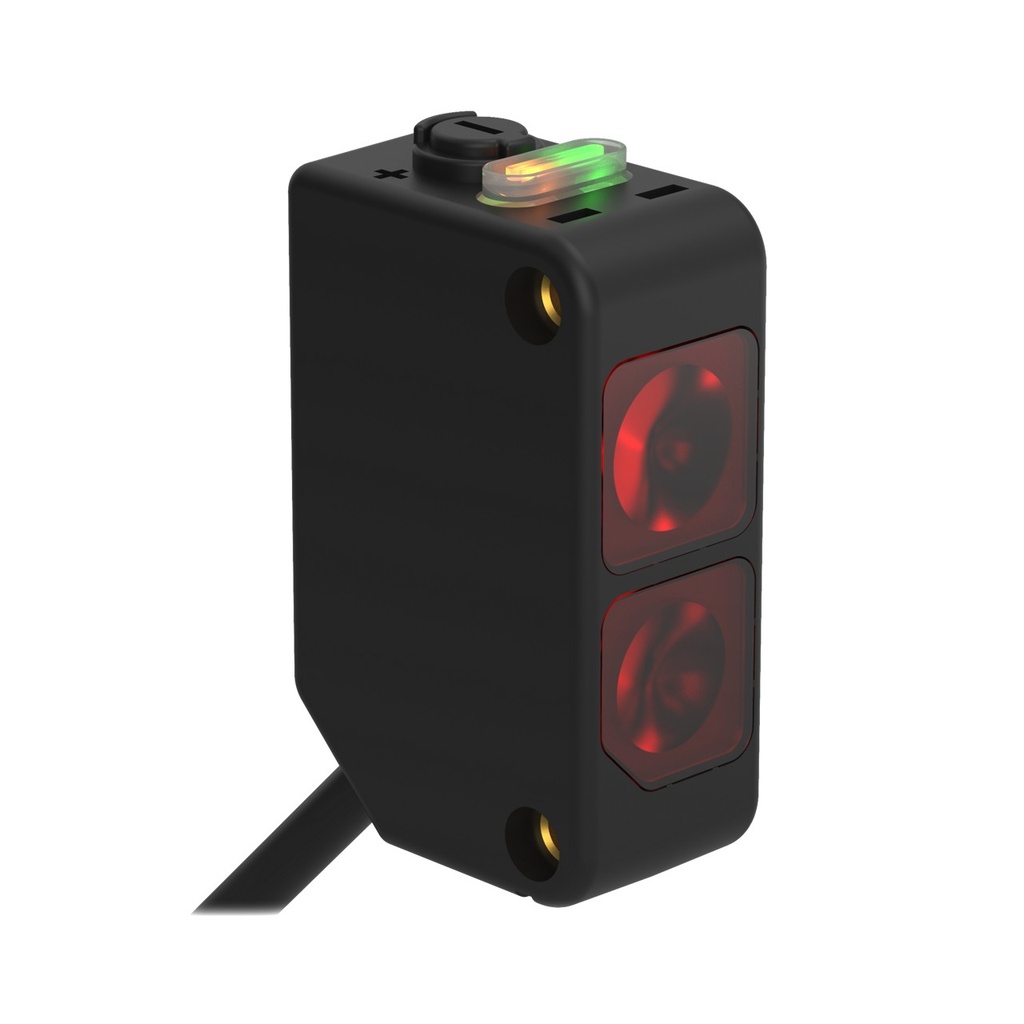

World-Beam Q20 Series: Long Range Diffuse (Red) (Q20PDLQ5-3000)
Representative photo. Please check item description for details.

World-Beam Q20 Series: Long Range Diffuse (Red) (Q20PDLQ5-3000)

https://www.branom.com/web/image/product.template/204085/image_1920?unique=c26756c
(0 review)

Features:

    WORLD-BEAM Q20 Series: Long Range Diffuse (Red); Range: 800 mm; Input 10-30 V dc; Output: Complementary Solid State PNP; 3 m pigtail Euro-style Quick Disconnect Connector
    • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 60 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 155
  • Sensing Beam Wavelength: 655
  • Housing Style: Rectangular
  • Max Sensing Distance: 800 mm
  • Sensing Mode (Detailed): Diffuse
  • Sensing Mode (General): Proximity
  • Max Relative Humidity: 95% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 0.8 ms
  • Operation: Light/Dark Operate
  • Adjustments: Potentiometer
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Pigtail QD
  • NEMA / UL: NEMA 6
  • Cord/Cable Length: 3 m
  • Indicator Type: LED

$ 183.00 183.0 USD $ 183.00
