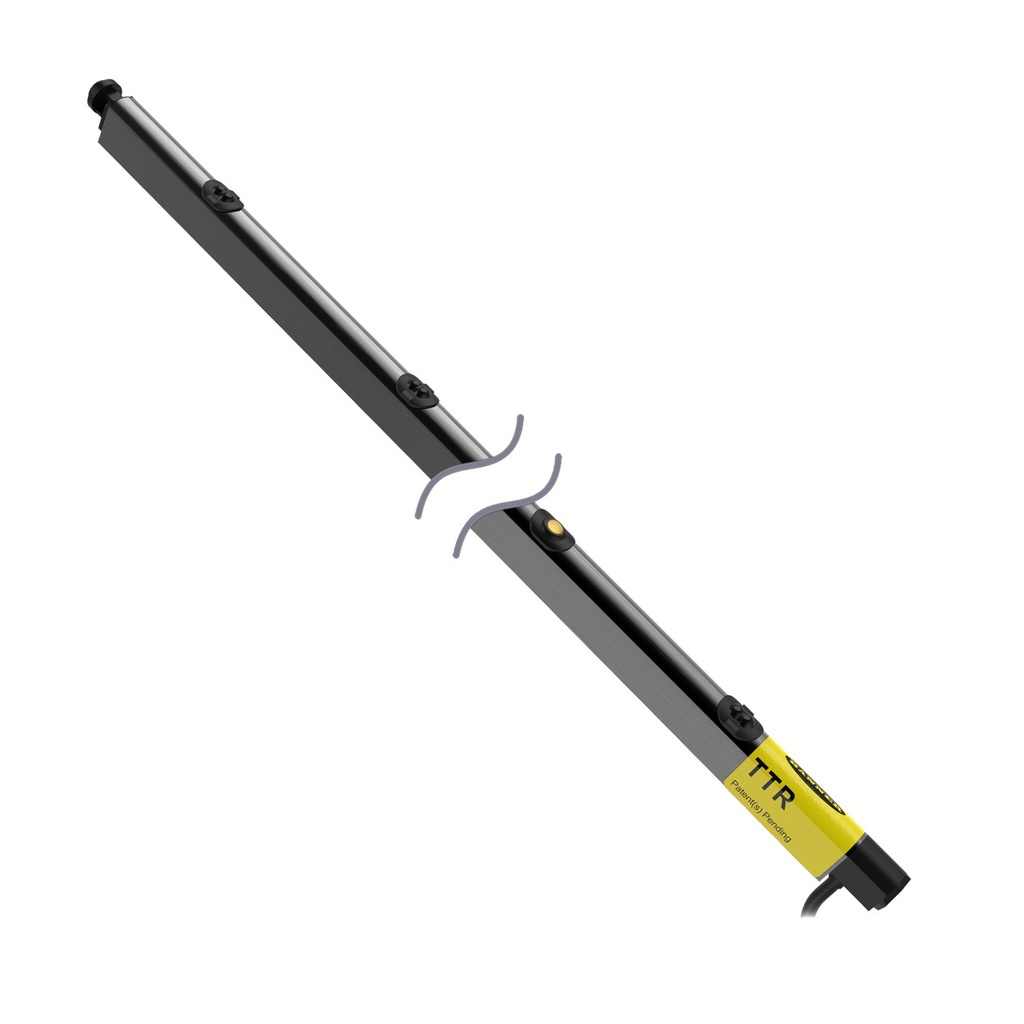

Ttr Series 7 Beam Sensor Array 33.5 Inch Between Frame (TTR850APSB7D-2.0FL-CTR)
Representative photo. Please check item description for details.

Ttr Series 7 Beam Sensor Array 33.5 Inch Between Frame (TTR850APSB7D-2.0FL-CTR)

https://www.branom.com/web/image/product.template/204723/image_1920?unique=c26756c
(0 review)

Features:

    TTR Series 7 Beam Sensor Array 33.5 inch Between Frame; Beam Spacing: 93.1 mm Range: 120 mm Diffuse; Output: LO PNP Input: 18-30 V dc; 2 m (6 ft) Flying Leads Endcap D: Flat Up / Round
    • Min Operating Temperature: -10 °C
  • Max Operating Temperature: 55 °C
  • Lens Material: Polycarbonate
  • Power Supply: 18-30 VDC
  • Delay at Power-Up: 1500 ms
  • Ingress Protection: IP50
  • Housing Style: Roller Conveyor
  • Max Sensing Distance: 120 mm
  • Sensing Mode (Detailed): Diffuse
  • Beam Spacing: 93.1 mm
  • Max Relative Humidity: 95% @ 55 °C
  • Housing Material_: Black Anodized Aluminum
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: Flying Leads
  • Output: PNP
  • Number of Pins: 4
  • Output Response Time: 1 ms
  • Operation: Light Operate
  • Adjustments: N/A
  • Connection Type: Cable
  • Cord/Cable Length: 2 m
  • Last Beam Distance to End: 145.70 mm
  • Indicator Type: Indicator LED
  • Max Sensing Range: 120 mm
  • Slot Depth/Array Length (mm): 850 mm
  • Slot Overall Depth (mm): 12 mm
