Ttr Series 3 Beam Sensor Array 26.0 Inch Between Frame (TTR660APSD3D-2.0FL-153)

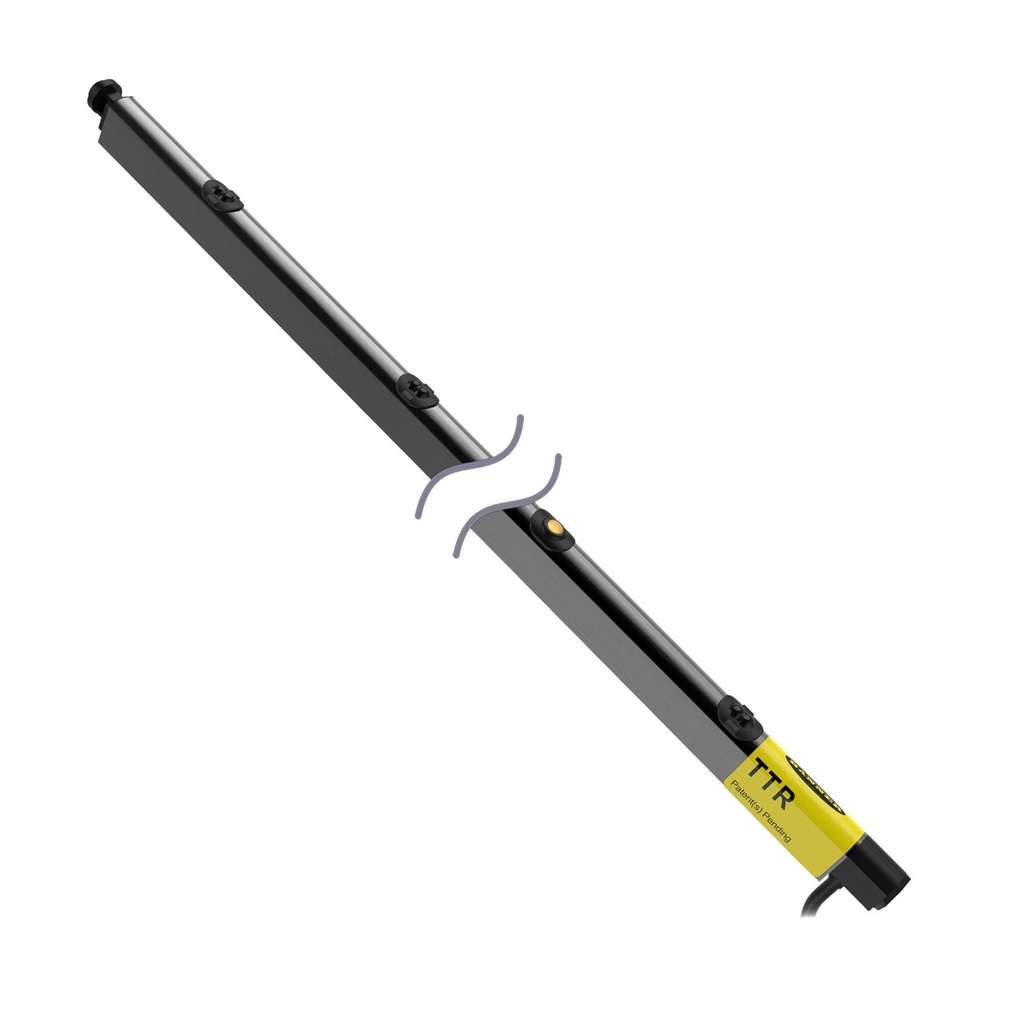

Representative photo. Please check item description for details.

Ttr Series 3 Beam Sensor Array 26.0 Inch Between Frame (TTR660APSD3D-2.0FL-153)

https://www.branom.com/web/image/product.template/204722/image_1920?unique=c26756c
(0 review)

Features:

    TTR Series 3 Beam Sensor Array 26.0 inch Between Frame; Beam Spacing: 162 mm Range: 120 mm Diffuse; Output: LO PNP Input: 18
  • 30 V dc; 2.0 m (6 ft) Flying Leads Endcap D: Flat Up / Round
  • Min Operating Temperature: -10 °C
  • Max Operating Temperature: 55 °C
  • Lens Material: Polycarbonate
  • Power Supply: 18-30 VDC
  • Delay at Power-Up: 1500 ms
  • Ingress Protection: IP50
  • Housing Style: Roller Conveyor
  • Max Sensing Distance: 120 mm
  • Sensing Mode (Detailed): Diffuse
  • Beam Spacing: 162 mm
  • Max Relative Humidity: 95% @ 55 °C
  • Number of Beams: 3
  • Housing Material_: Black Anodized Aluminum
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: Flying Leads
  • Output: PNP
  • Number of Pins: 4
  • Output Response Time: 1 ms
  • Operation: Light Operate
  • Adjustments: N/A
  • Distance to First Beam: 153 mm
  • Cord/Cable Length: 2 m
  • End Cap Type: D: Hex Flat Up / Spring 8 mm Round
  • Last Beam Distance to End: 183.00 mm
  • Indicator Type: Indicator LED
  • Max Sensing Range: 120 mm
  • Slot Depth/Array Length (mm): 660 mm
  • Slot Overall Depth (mm): 12 mm

$ 197.00 197.0 USD $ 197.00

$ 197.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
