World-Beam Q20 Series: Fixed-Field (Q20NFF50IRQ7)

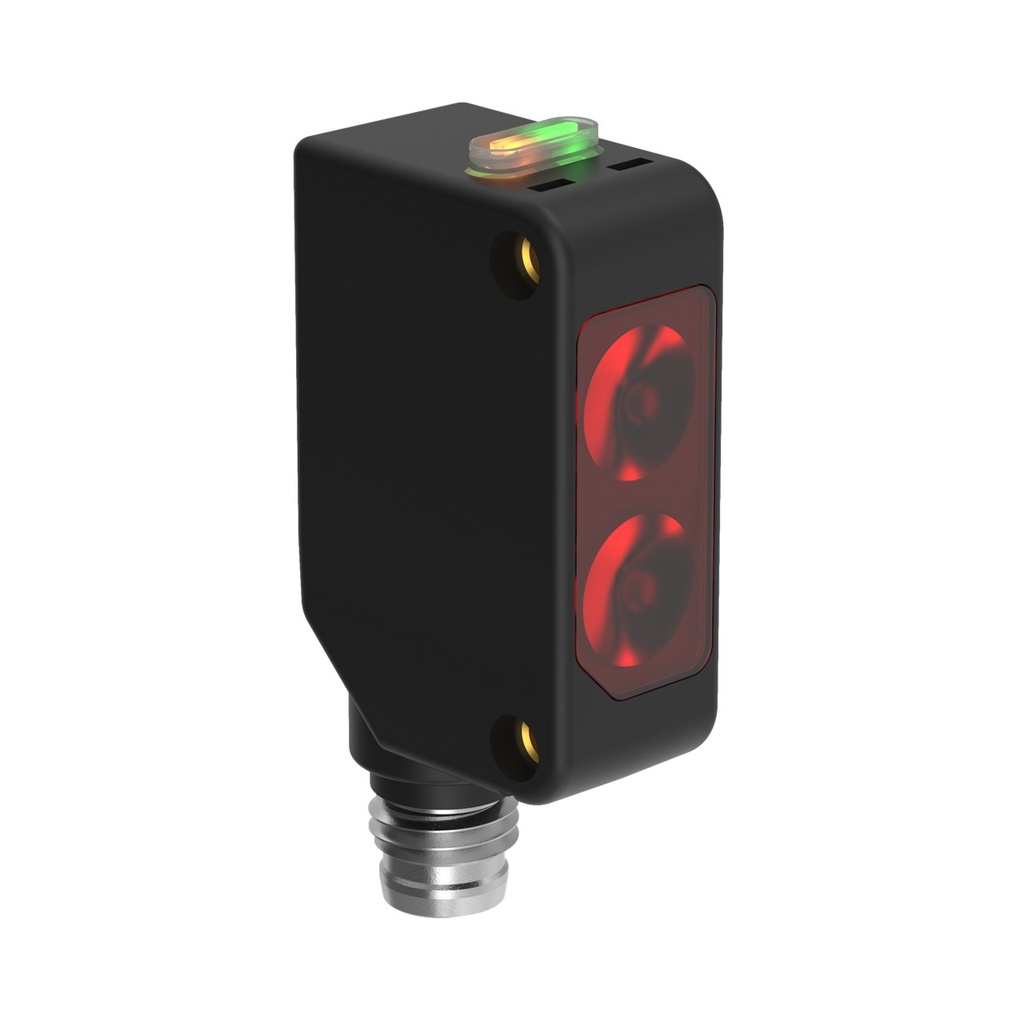

Representative photo. Please check item description for details.

World-Beam Q20 Series: Fixed-Field (Q20NFF50IRQ7)

https://www.branom.com/web/image/product.template/204083/image_1920?unique=c26756c
(0 review)

Features:

    WORLD-BEAM Q20 Series: Fixed-Field; Range: 50 mm; Input 10-30 V dc; Output: Complementary Solid State NPN; Pico 4-pin Integral QD; IR Emitter
    • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 60 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 155
  • Sensing Beam: Infrared LED
  • Sensing Beam Wavelength: 870
  • Housing Style: Rectangular
  • Max Sensing Distance: 50 mm
  • Sensing Mode (Detailed): Background Suppression (Fixed)
  • Sensing Mode (General): Proximity
  • Max Relative Humidity: 95% @ 50 °C
  • Housing Material_: Thermoplastic
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M8
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 0.8 ms
  • Operation: Light/Dark Operate
  • Feature: Timing (Hold/Delay): No
  • Small Visible Spot: LED
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Integral QD
  • NEMA / UL: NEMA 6
  • Cord/Cable Length: 2 m
  • Indicator Type: LED

$ 108.00 108.0 USD $ 108.00

$ 108.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
