Q2X Polarized Retroreflective (Q2XABLPF-Q5)
Representative photo. Please check item description for details.

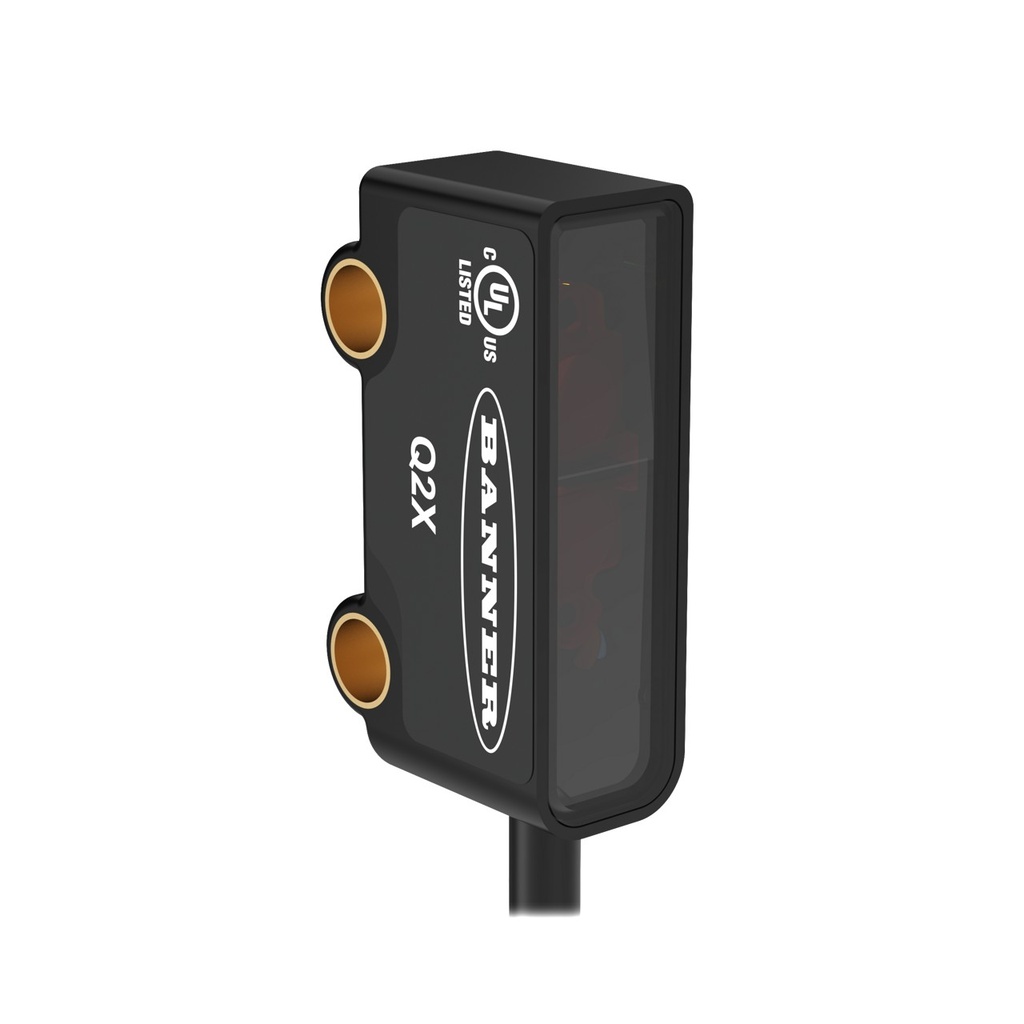

Q2X Polarized Retroreflective (Q2XABLPF-Q5)

https://www.branom.com/web/image/product.template/204123/image_1920?unique=c26756c
(0 review)

Features:

    Q2X Polarized Retroreflective; Range: 3300 mm, Input 10-30 V dc; Output: LO (Light Operate), Bipolar: 1 NPN, 1 PNP; 4-pin Euro QD (M12)
  • Min Operating Temperature: -25 °C
  • Max Operating Temperature: 50 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 120 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 144
  • Sensing Beam: Visible Red LED
  • Sensing Beam Wavelength: 645
  • Housing Style: Rectangular
  • Max Sensing Distance: 3300 mm
  • Sensing Mode (Detailed): Polarized Retro
  • Sensing Mode (General): Retroreflective
  • Max Relative Humidity: 95% @ 50 °C
  • Housing Material_: ABS/Polycarbonate
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M12
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 0.6 ms
  • Operation: Light Operate
  • Feature: Timing (Hold/Delay): No
  • Small Visible Spot: LED
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Pigtail QD
  • NEMA / UL: NEMA 6
  • Cord/Cable Length: 0.15 m
  • Indicator Type: LED
