Ttr Series 6 Beam Sensor Array 24.0 Inch Between Frame (TTR610APSB6A-0.5Q3-CTR)

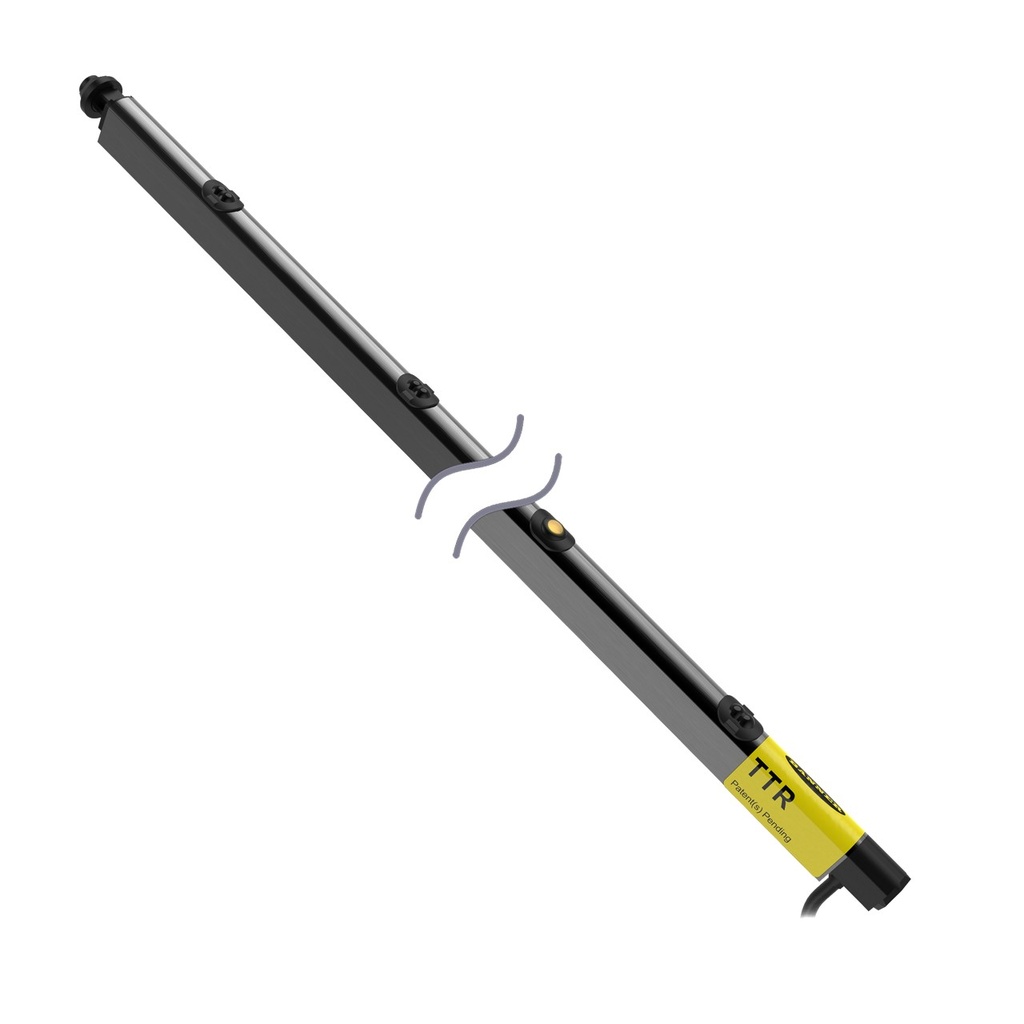

Representative photo. Please check item description for details.

Ttr Series 6 Beam Sensor Array 24.0 Inch Between Frame (TTR610APSB6A-0.5Q3-CTR)

https://www.branom.com/web/image/product.template/204716/image_1920?unique=c26756c
(0 review)

Features:

    TTR Series 6 Beam Sensor Array 24.0 inch Between Frame; Beam Spacing: 93.1 mm Range: 120 mm; Output: LO PNP Input: 18
  • 30 V dc; 0.5 m (1.6 ft) M8 male snap connector Endcaps A: Flat up / hex and round
  • Min Operating Temperature: -10 °C
  • Max Operating Temperature: 55 °C
  • Lens Material: Polycarbonate
  • Power Supply: 18-30 VDC
  • Delay at Power-Up: 1500 ms
  • Ingress Protection: IP50
  • Housing Style: Roller Conveyor
  • Max Sensing Distance: 120 mm
  • Sensing Mode (Detailed): Diffuse
  • Beam Spacing: 93.1 mm
  • Max Relative Humidity: 95% @ 55 °C
  • Number of Beams: 6
  • Housing Material_: Black Anodized Aluminum
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M8
  • Output: PNP
  • Number of Pins: 4
  • Output Response Time: 1 ms
  • Operation: Light Operate
  • Adjustments: N/A
  • Distance to First Beam: 72.3 mm
  • Connection Type: Pigtail QD
  • Cord/Cable Length: 0.5 m
  • End Cap Type: A: Hex Flat Up / Spring 11 mm Hex - 8 mm Round
  • Last Beam Distance to End: 72.30 mm
  • Indicator Type: Indicator LED
  • Max Sensing Range: 120 mm
  • Slot Depth/Array Length (mm): 610 mm
  • Slot Overall Depth (mm): 19 mm

$ 265.00 265.0 USD $ 265.00

$ 265.00

Not Available For Sale
