Dxm700 Controller (DXM700-B1R1-811388)

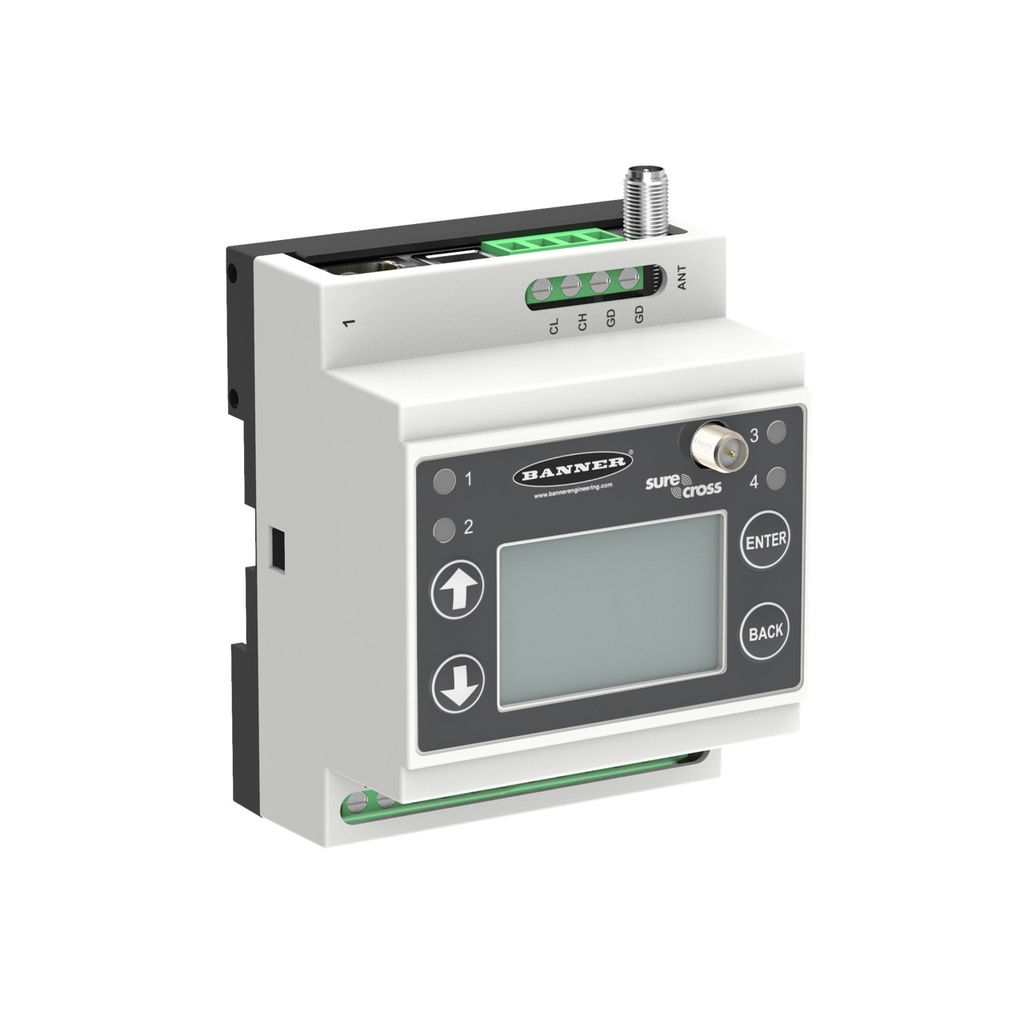

Representative photo. Please check item description for details.

Dxm700 Controller (DXM700-B1R1-811388)

https://www.branom.com/web/image/product.template/202116/image_1920?unique=c26756c
(0 review)

Features:

    DXM700 Controller; DX80 Performance Gateway 900 MHz 1W; Outputs: 4 PNP; M7 Processor, 16MB Memory, LCD Display; RS485, Ethernet, USB; Script Loaded for CallForParts Solution Kit
    • Power: DC
    • Feature: Discrete Outputs: Yes
    • Min Operating Temperature: -20 °C
    • Max Operating Temperature: 60 °C
    • Power Supply: 12-30 VDC
    • Ingress Protection: IP20
    • Housing Style: External Terminals
    • Device Type: Wireless Controller with Performance Gateway
    • Feature: RS-232: No
    • Feature: RS-485: Yes
    • Feature: Has EtherNet/IP: Yes
    • Feature: Modbus/TCP: Yes
    • Feature: Hazardous Area: No
    • Feature: Modbus RTU: Yes
    • Physical Dimensions: 70 mm
    • Feature: Wireless: Yes
    • Input/Output: Discrete & Serial
    • Relative Humidity: 95%
    • Feature: LCD Display: Yes
    • Output Details: 4 PNP
    • Feature: Point-to-Point Topology: Yes
    • Feature: Point-to-Multipoint Topology: Yes
    • Wireless Radio Frequency: 900 MHz
    • Feature: Tree Topology: No
    • Feature: Star Topology: Yes
    • Feature: Indicator Light: Yes
    • Ethernet Connector Type: RJ45 Jack
    • NEMA / UL: NEMA 1
    • On-Board Memory: 16 MB
    • Processing Speed: 300 MHz
      • Power: DC
    • Feature: Discrete Outputs: Yes
    • Min Operating Temperature: -20 °C
    • Max Operating Temperature: 60 °C
    • Power Supply: 12-30 VDC
    • Ingress Protection: IP20
    • Housing Style: External Terminals
    • Device Type: Wireless Controller with Performance Gateway
    • Feature: RS-232: No
    • Feature: RS-485: Yes
    • Feature: Has EtherNet/IP: Yes
    • Feature: Modbus/TCP: Yes
    • Feature: Hazardous Area: No
    • Feature: Modbus RTU: Yes
    • Physical Dimensions: 70 mm
    • Feature: Wireless: Yes
    • Input/Output: Discrete & Serial
    • Relative Humidity: 95%
    • Feature: LCD Display: Yes
    • Output Details: 4 PNP
    • Feature: Point-to-Point Topology: Yes
    • Feature: Point-to-Multipoint Topology: Yes
    • Wireless Radio Frequency: 900 MHz
    • Feature: Tree Topology: No
    • Feature: Star Topology: Yes
    • Feature: Indicator Light: Yes
    • Ethernet Connector Type: RJ45 Jack
    • NEMA / UL: NEMA 1
    • On-Board Memory: 16 MB
    • Processing Speed: 300 MHz

$ 828.00 828.0 USD $ 828.00

$ 828.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
