Ez-Array Series: Receiver 5 Mm Optical Spacing (EA5R2100XK2Q)
Representative photo. Please check item description for details.

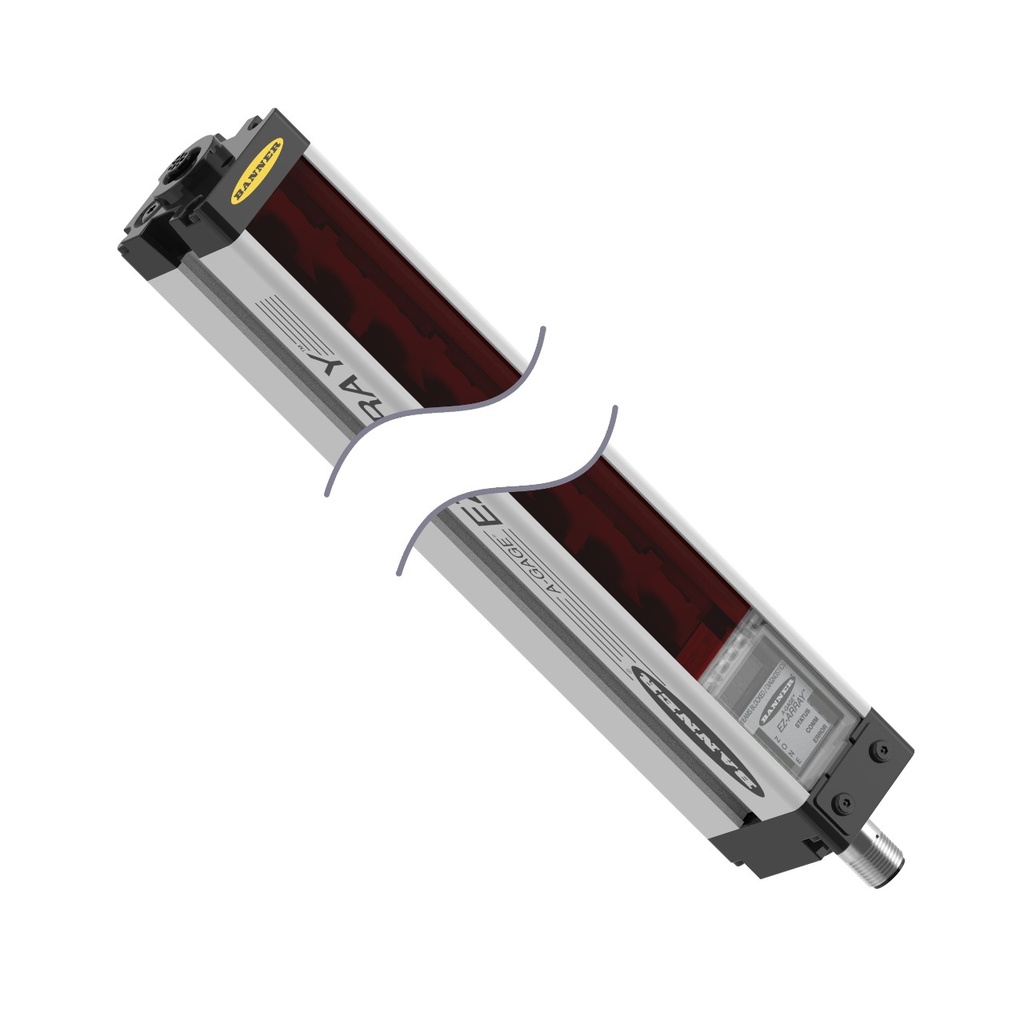

Ez-Array Series: Receiver 5 Mm Optical Spacing (EA5R2100XK2Q)

https://www.branom.com/web/image/product.template/202526/image_1920?unique=c26756c
(0 review)

Features:

    EZ-Array Series: Receiver 5 mm Optical Spacing; Range: 4 m; Sensing Length: 2100 mm; Input Voltage 18 To 30 V; Outputs: IO-Link v1.1/Push-Pull Discrete Output and 2nd PNP Output, Two 0-10 V Analog Outputs; Connection: Euro 8-Pin Male M12 Integral QD
    • Feature: Discrete Outputs: PNP / Push-Pull
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 70 °C
  • Power Supply: 12-30 VDC
  • Sensing Mode (Detailed): Receiver
  • Beam Spacing: 5 mm
  • Device Type: Two-Piece
  • Housing Length: 2178 mm
  • Max Relative Humidity: 95%
  • Number of Beams: 420
  • Housing Material_: Aluminum
  • Analog Output: 0 to 10 VDC
  • Feature: IO Link: Yes
  • Array Length: 2100 mm
  • Quick Disconnect Type: M12
  • Discrete Outputs: PNP / Push-Pull
  • Emitter/Receiver Range: 0.4 to 4 m

$ 3,206.00 3206.0 USD $ 3,206.00

$ 3,206.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
