S18 Daylight Visible Ez-Light - 18 Mm - Ip67 (S18DLGBYPQ)

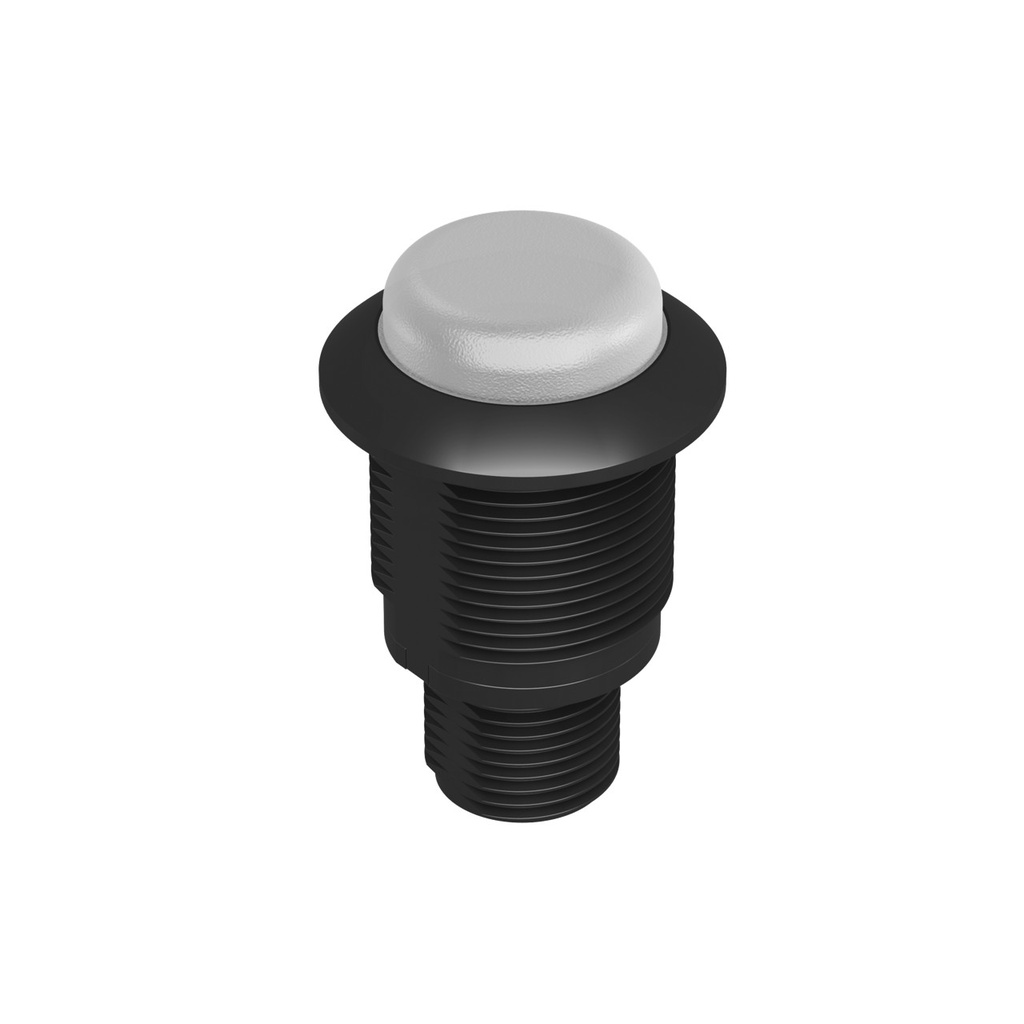

Representative photo. Please check item description for details.

S18 Daylight Visible Ez-Light - 18 Mm - Ip67 (S18DLGBYPQ)

https://www.branom.com/web/image/product.template/204402/image_1920?unique=c26756c
(0 review)

Features:

    S18 Daylight Visible EZ-LIGHT
  • 18 mm
  • IP67; Three Color: Green Blue Yellow; 10-30 V dc PNP Input; Euro 4-pin Integral Connector
    • Power: DC
  • Feature: Display Lighting: No
  • Max Current Color: 25 mA
  • Power Source: VDC
  • Ingress Protection: IP67/69
  • Housing Style: Barrel Mount - Flat Window
  • Feature: Washdown Rated: Yes
  • Feature: Hazardous Area: No
  • Feature: IO Link: No
  • Feature: Modbus RTU: No
  • Physical Dimensions: 23.5 x 35.7 mm
  • Feature: Wireless: No
  • Feature: Indication: Yes
  • Color Option 3: Yellow
  • Supply Voltage: 10-30 VDC
  • Color Option 2: Blue
  • Feature: Quick Disconnect: Yes
  • Lumens Color 1: 2.3
  • Color Technology: Standard LED
  • Feature: Audible: No
  • Color Option 1: Green
  • Color 1 - Wavelength/Color Temp/Coordinates: 525 nm
  • Housing Color: Black
  • Color Input Control: Individual (One wire/color, same number of colors as input wires)
  • Multi-Color Device: Single Color On
  • Animation Option 1: Solid On
  • Quick Disconnect Type: M12 (Euro)
  • Number of Colors / Segments: 3
  • Color 3 - Wavelength/Color Temp/Coordinates: 590 nm
  • Lumens Color 2: 0.6
  • Lumens Color 3: 1.2
  • Product Size (mm): 18 mm
  • Color 2 - Wavelength/Color Temp/Coordinates: 470 nm
  • Number of Input Pins/Conductors: 4
  • Input Type: PNP
  • Feature: Pro-Editor Compatible (Discrete): No
  • Mounting Thread: M18 x 1.0
  • Max Input Response Time (ms): 1 ms
  • Feature: Chemical Resistant: No
  • Indication Intensity: High Brightness & Daylight Visible
  • Connection: Integral QD
  • NEMA / UL: NEMA/UL 4X/13
  • Max Input Response Time: 1 ms

$ 48.00 48.0 USD $ 48.00

$ 48.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
