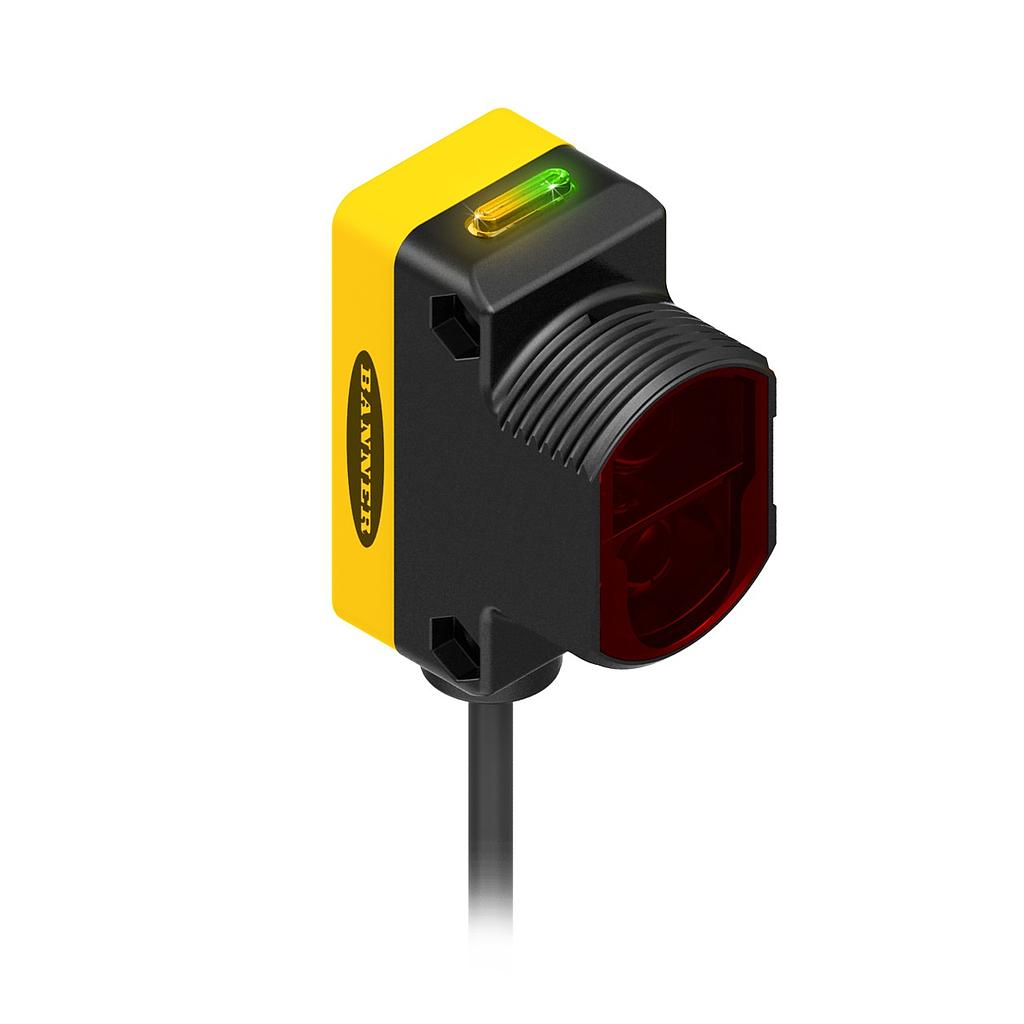

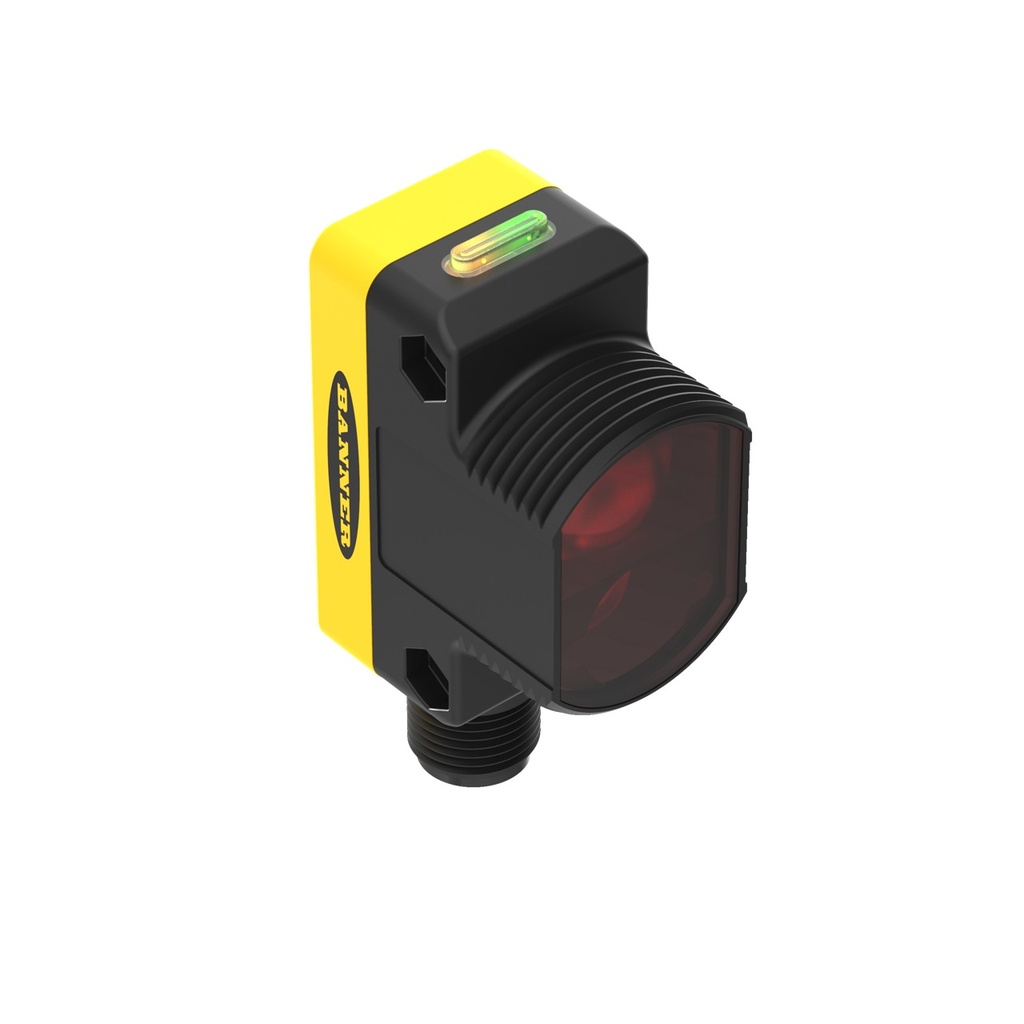

WORLD-BEAM QS30 Series Clear Object Sensor (QS30ELVCQ)

https://www.branom.com/web/image/product.template/52277/image_1920?unique=c26756c
(0 review)

Features:

  • WORLD-BEAM QS30 Series Clear Object Sensor
  • Range: 100 mm-2 m
  • Input: 10-30V dc
  • Rating: IP67
  • Output: Bipolar (NPN & PNP)
  • 5-pin Euro Style QD
  • Min Operating Temperature: -10 °C
  • Max Operating Temperature: 55 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 250 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 150
  • Sensing Beam: Visible Red LED
  • Sensing Beam Wavelength: 660
  • Housing Style: Rectangular w/M30 Mount
  • Max Sensing Distance: 2000 mm
  • Sensing Mode (Detailed): Non-Polarized
  • Sensing Mode (General): Retroreflective
  • Max Relative Humidity: 95% @ 55 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 5
  • Output Response Time: 0.5 ms
  • Operation: Light/Dark Operate
  • Adjustments: Teach Button
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Barrel Diameter: 30 mm
  • Feature: Clear Object Detection: Yes
  • Feature: Remote Teach: Yes
  • Feature: Intrinsically Safe: No
  • Connection Type: Integral QD
  • NEMA / UL: NEMA PW12
  • Indicator Type: Bargraph
