Wls28 Pro Light Strip With Io-Link (WLS28PXRGBW850DXKQ)
Representative photo. Please check item description for details.

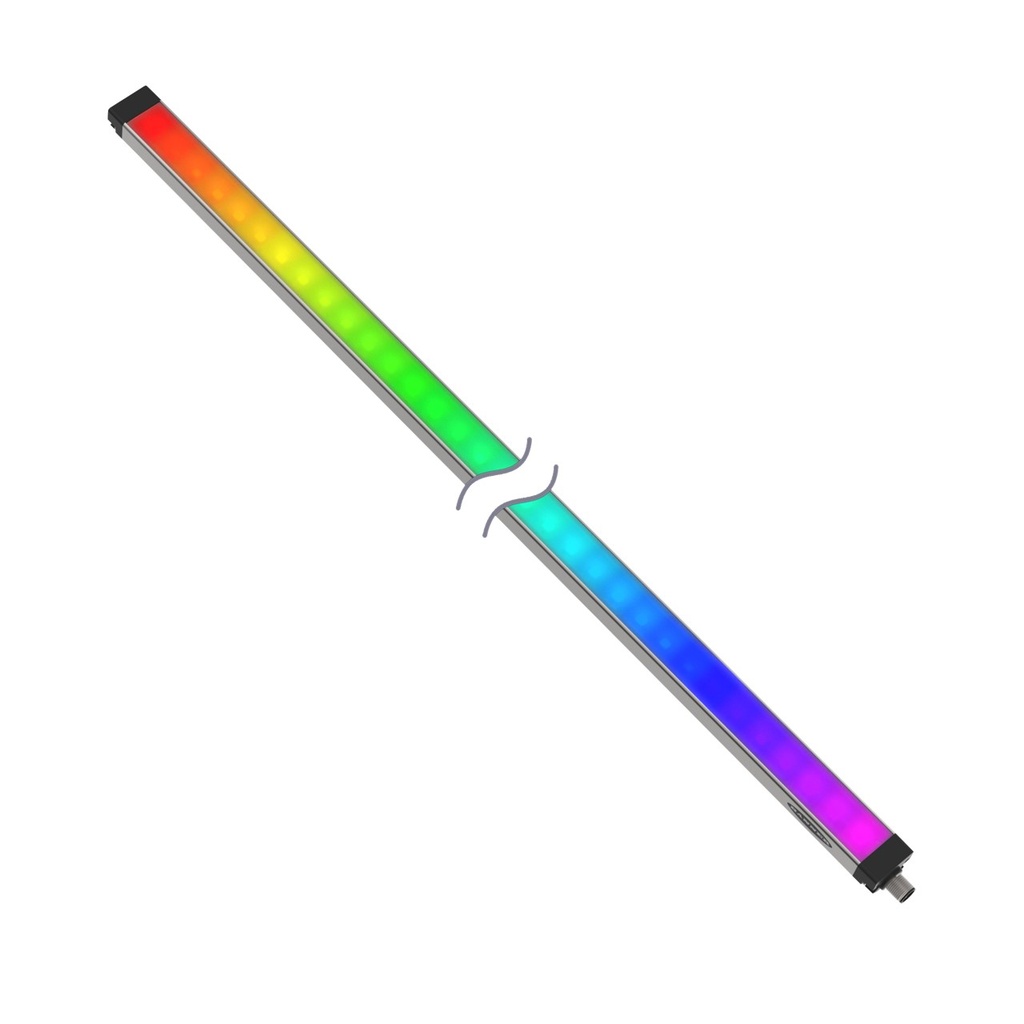

Wls28 Pro Light Strip With Io-Link (WLS28PXRGBW850DXKQ)

https://www.branom.com/web/image/product.template/205843/image_1920?unique=c26756c
(0 review)

Features:

    WLS28 Pro Light Strip with IO-Link; Diffuse Window; Length: 850 mm; Voltage: 18-30 V dc; Environmental Rating: IP50; Color: RGBW; Non-Cascadable; Euro 4-pin Quick Disconnect
    • Power: DC
  • Feature: Display: No
  • Feature: Display Lighting: No
  • Max Current Color: 1650 mA
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 50 °C
  • Ingress Protection: IP50
  • Housing Style: Linear Strip
  • Housing Material_: Aluminum
  • Feature: Hazardous Area: No
  • Feature: IO Link: Yes
  • Feature: Modbus RTU: No
  • Physical Dimensions: 890.0 x 28.0 x 20.9 mm
  • Feature: Wireless: No
  • Feature: Indication: Yes
  • Supply Voltage: 18-30 VDC
  • Feature: Quick Disconnect: Yes
  • Color Technology: RGB IO-Link
  • Feature: Audible: No
  • Color Option 1: RGBW
  • Color Input Control: Communication Protocol
  • Multi-Color Device: Simultaneous Colors On
  • Animation Option 1: IO-Link Controlled
  • Quick Disconnect Type: M12
  • Number of Colors / Segments: Programmable
  • Product Size (mm): 28 mm
  • Number of Input Pins/Conductors: 4
  • Feature: Pro-Editor Compatible (Discrete): No
  • Mounting Thread: No Thread
  • Feature: Chemical Resistant: No
  • Storage Temp: -40 to 70 °C
  • Wire Selectable Function: Programmable
  • Dimming Option: IO-Link Controlled
  • Number of Tower Light Segments: Programmable
  • Indication Intensity: High Brightness & Daylight Visible
  • Illuminated Length (LxWxH): 850 mm
  • Feature: Illumination: Yes
  • Connection Type: Integral QD

$ 646.00 646.0 USD $ 646.00

$ 646.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1

    Share
