Ttr Series 6 Beam Sensor Array 29.5 Inch Between Frame (TTR750APSC6C-2.0FL-CTR)

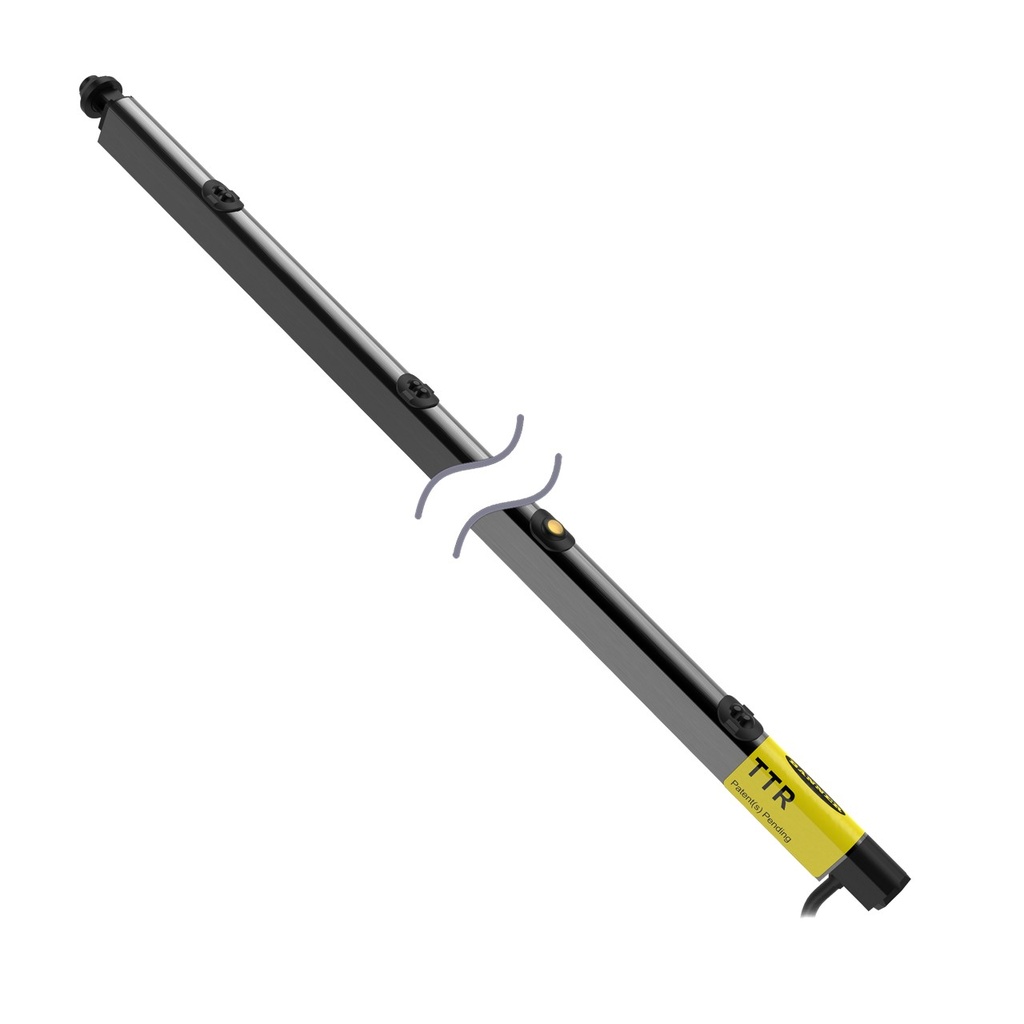

Representative photo. Please check item description for details.

Ttr Series 6 Beam Sensor Array 29.5 Inch Between Frame (TTR750APSC6C-2.0FL-CTR)

https://www.branom.com/web/image/product.template/204709/image_1920?unique=c26756c
(0 review)

Features:

    TTR Series 6 Beam Sensor Array 29.5 inch Between Frame; Beam Spacing: 108 mm Range: 120 mm Diffuse; Output: LO PNPl Input: 18
  • 30 V dc; 2m (6 ft) Flying Leads Endcap C: Adjust / Hex & Round
    • Min Operating Temperature: -10 °C
  • Max Operating Temperature: 55 °C
  • Lens Material: Polycarbonate
  • Power Supply: 18-30 VDC
  • Delay at Power-Up: 1500 ms
  • Ingress Protection: IP50
  • Housing Style: Roller Conveyor
  • Max Sensing Distance: 120 mm
  • Sensing Mode (Detailed): Diffuse
  • Beam Spacing: 108 mm
  • Max Relative Humidity: 95% @ 55 °C
  • Number of Beams: 6
  • Housing Material_: Black Anodized Aluminum
  • Feature: Quick Disconnect: No
  • Output: PNP
  • Number of Pins: 4
  • Output Response Time: 1 ms
  • Operation: Light Operate
  • Adjustments: N/A
  • Feature: Remote Teach: No
  • Distance to First Beam: 105 mm
  • Connection Type: Cable
  • Cord/Cable Length: 2 m
  • End Cap Type: C: Adj Hex / Spring 11 mm Hex - 8 mm Round
  • Last Beam Distance to End: 105.00 mm
  • Indicator Type: Indicator LED
  • Max Sensing Range: 120 mm
  • Slot Depth/Array Length (mm): 750 mm
  • Slot Overall Depth (mm): 19 mm

$ 258.00 258.0 USD $ 258.00

$ 258.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
