K50 Pro With Io-Link Series: Rgb Beacon Light: Perimeter View (K50PBLKQP)

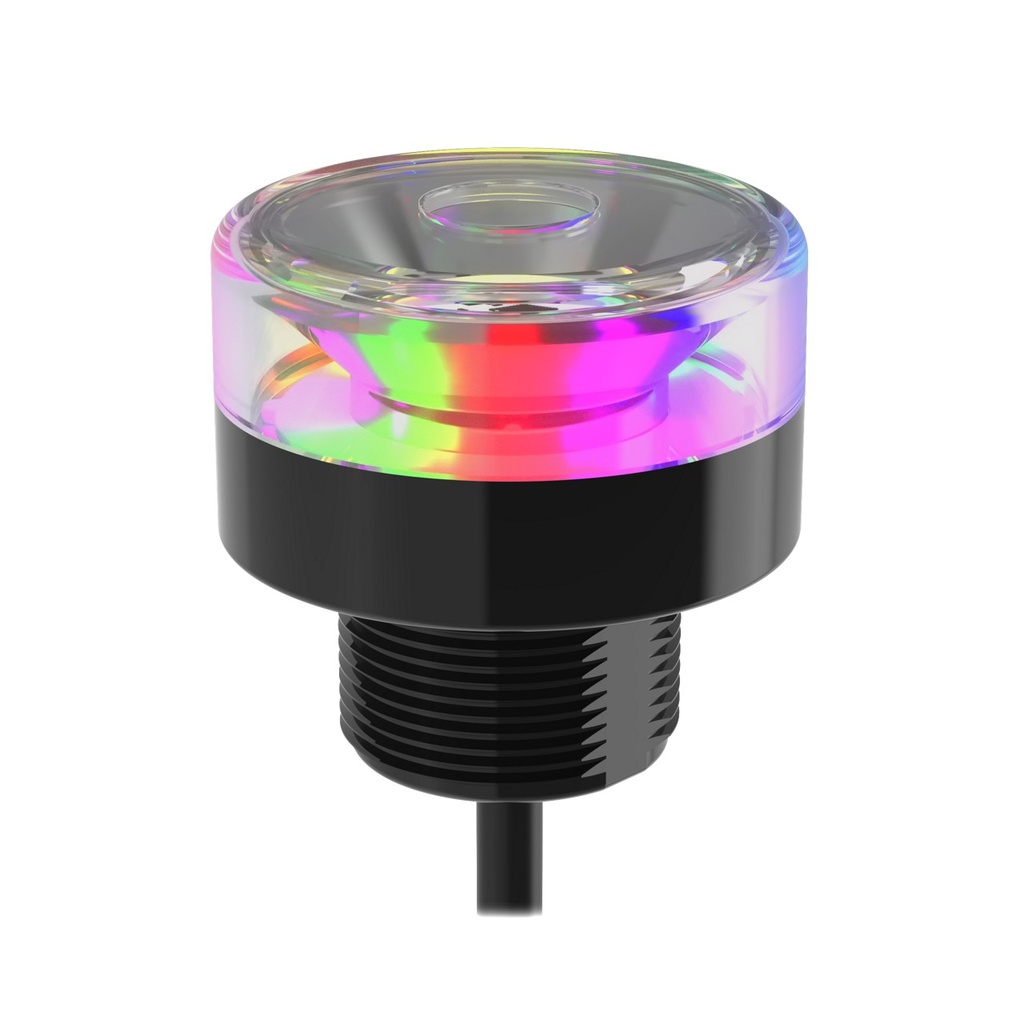

Representative photo. Please check item description for details.

K50 Pro With Io-Link Series: Rgb Beacon Light: Perimeter View (K50PBLKQP)

https://www.branom.com/web/image/product.template/203649/image_1920?unique=c26756c
(0 review)

Features:

    K50 Pro with IO-Link Series: RGB Beacon Light: Perimeter View ; Voltage: 18-30V dc; Housing: Polycarbonate; IP69K; Input: Bimodal; Colors: Multicolor; Euro 4-pin 150 mm (6 in) PVC Pigtail
  • Power: DC
  • Feature: Display: No
  • Feature: Display Lighting: No
  • Max Current Color: 150 mA
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 50 °C
  • Power Source: VDC
  • Ingress Protection: IP67/69
  • Housing Style: Base Mount - Flat Window
  • Max Relative Humidity: 90% @ 50 °C (NC)
  • Housing Material_: Polycarbonate
  • Feature: Hazardous Area: No
  • Feature: IO Link: Yes
  • Feature: Modbus RTU: No
  • Physical Dimensions: 50.0 x 48.8 mm
  • Feature: Wireless: No
  • Feature: Indication: Yes
  • Supply Voltage: 18-30 VDC
  • Feature: Quick Disconnect: Yes
  • Color Technology: RGB IO-Link
  • Feature: Audible: No
  • Color Option 1: RGB
  • Housing Color: Black
  • Color Input Control: Communication Protocol
  • Multi-Color Device: Simultaneous Colors On
  • Animation Option 1: IO-Link Controlled
  • Quick Disconnect Type: M12
  • Number of Colors / Segments: Programmable
  • Product Size (mm): 50 mm
  • Number of Input Pins/Conductors: 4
  • Input Type: Communication Protocol
  • Max Op. Relative NC Humidity: 90% @ 50 °C
  • Feature: Pro-Editor Compatible (Discrete): No
  • Mounting Thread: M30 x 1.5
  • Max Input Response Time (ms): 30 ms
  • Feature: Chemical Resistant: No
  • Storage Temp: -40 to 70 °C
  • Dimming Option: IO-Link Controlled
  • Indication Intensity: High Brightness & Daylight Visible
  • Connection Type: Pigtail QD
  • NEMA / UL: UL 4X/13
  • Cord/Cable Length: 0.15 m
