Cl50 Pro Column Light (CL50PRGB7AQ)

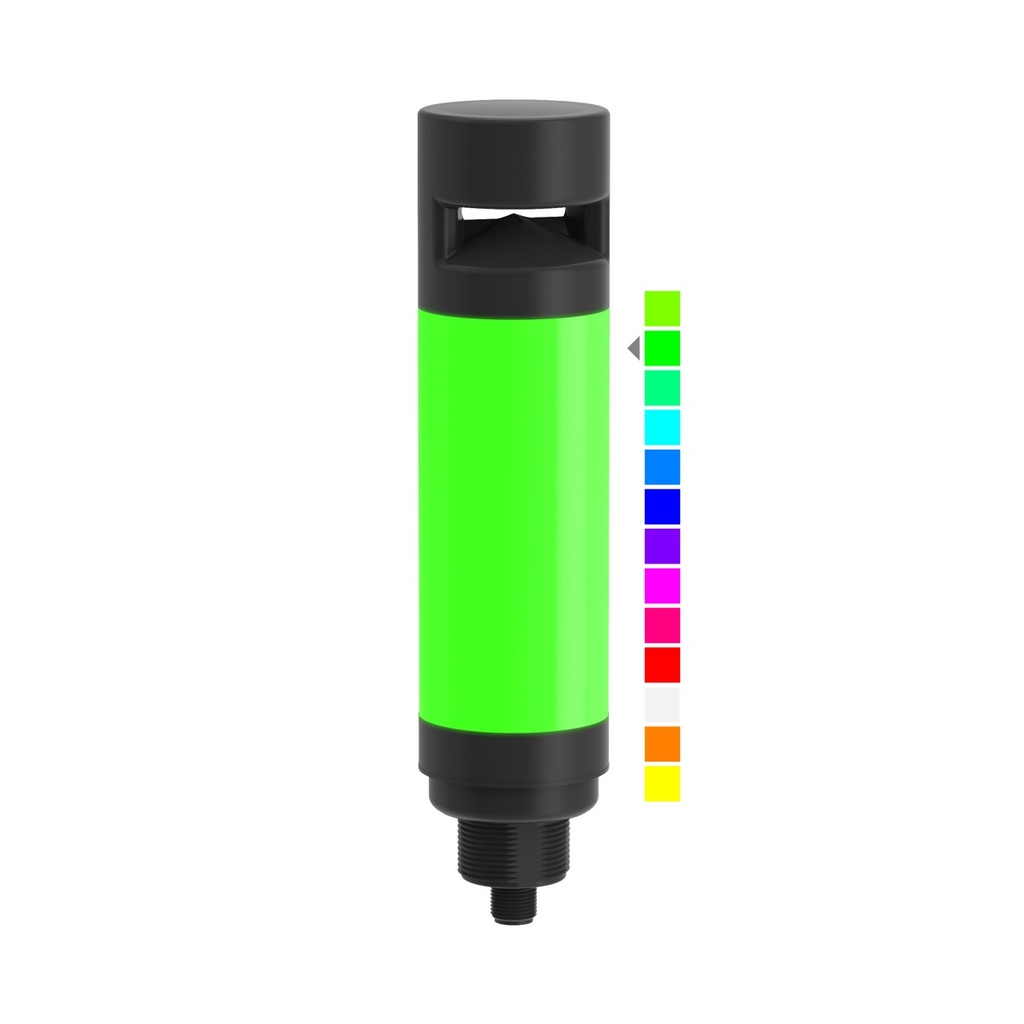

Representative photo. Please check item description for details.

Cl50 Pro Column Light (CL50PRGB7AQ)

https://www.branom.com/web/image/product.template/201934/image_1920?unique=c26756c
(0 review)

Features:

    CL50 Pro Column Light; 7-Color RGB Audible Indicator; Voltage: 12-30 V dc; Environ. Rating: IP65; Colors: Multicolor; Euro 5-pin Integral Connector
  • Power: DC
  • Feature: Display: No
  • Feature: Display Lighting: No
  • Max Current Color: 255 mA
  • Max Current - Audible Alarm (mA): 35 mA
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 50 °C
  • Power Source: VDC
  • Ingress Protection: IP65
  • Housing Style: Base Mount - Tower
  • Max Relative Humidity: 90% @ 50 °C (NC)
  • Housing Material_: Polycarbonate
  • Feature: IO Link: No
  • Feature: Modbus RTU: No
  • Feature: Indication: Yes
  • Color Option 3: Blue
  • Max Audible Intensity: 93 dB @ 1 m
  • Supply Voltage: 12-30 VDC
  • Color Option 2: Green
  • Feature: Quick Disconnect: Yes
  • Lumens Color 1: 29.1
  • Color Technology: RGB Configurable
  • Feature: Audible: Yes
  • Color Option 7: Cyan
  • Color Option 1: Red
  • Color 1 - Wavelength/Color Temp/Coordinates: 620 nm
  • Housing Color: Black
  • Color Input Control: Multiple (One or more wires/color, enables more colors than input wires)
  • Multi-Color Device: Single Color On
  • Quick Disconnect Type: M12
  • Audible Operating Frequency (kHz): 3.1
  • Number of Colors / Segments: 14
  • Color 3 - Wavelength/Color Temp/Coordinates: 466 nm
  • Lumens Color 2: 52.2
  • Lumens Color 3: 11.6
  • Product Size (mm): 50 mm
  • Color 2 - Wavelength/Color Temp/Coordinates: 522 nm
  • Number of Input Pins/Conductors: 5
  • Input Type: Bimodal (PNP/NPN)
  • Max Op. Relative NC Humidity: 90% @ 50 °C
  • Feature: Pro-Editor Compatible (Discrete): Yes
  • Mounting Thread: M30 x 1.5
  • Max Input Response Time (ms): 250 ms
  • Feature: Chemical Resistant: No
  • Audible Alarm Type: Continuous
  • Storage Temp: -40 to 70 °C
  • Color Option 4: Yellow
  • Color 4 - Wavelength/Color Temp/Coordinates: 576 nm
  • Color 6 - Wavelength/Color Temp/Coordinates: 0.370, 0.185
  • Color Option 5: White
  • Color 5 - Wavelength/Color Temp/Coordinates: 5700K
  • Lumens Color 5: 79.4
  • Color 7 - Wavelength/Color Temp/Coordinates: 493 nm
  • Lumens Color 4: 75.9
  • Lumens Color 6: 36.7
  • Lumens Color 7: 57.9
  • Wire Selectable Function: Multi-Function
  • Color Option 6: Magenta
  • Feature: I/O Block Compatible: Yes
  • Connection Type: Integral QD
  • NEMA / UL: UL 4X

$ 230.00 230.0 USD $ 230.00

$ 230.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
