Tl50 Pro Select With Io-Link Tower Light (TL50PS3KQ)

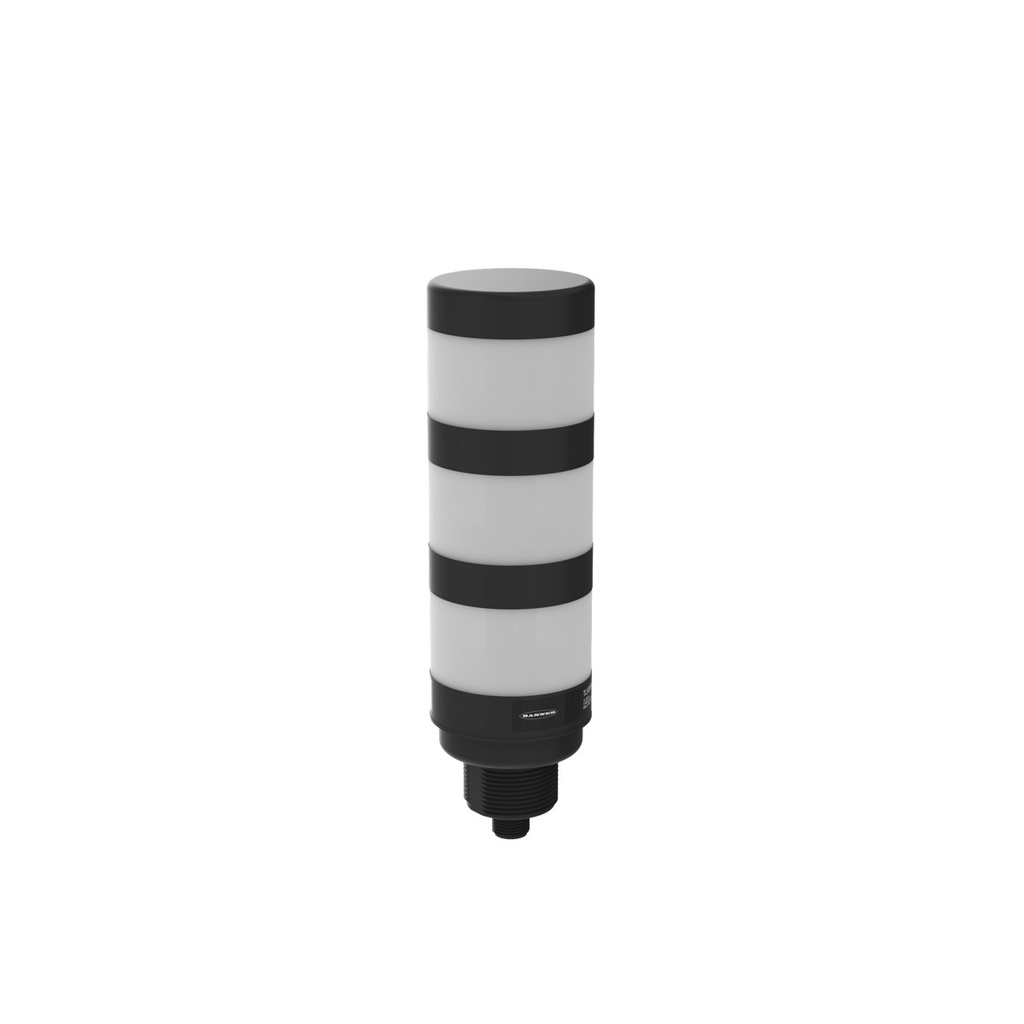

Representative photo. Please check item description for details.

Tl50 Pro Select With Io-Link Tower Light (TL50PS3KQ)

https://www.branom.com/web/image/product.template/205264/image_1920?unique=c26756c
(0 review)

Features:

    TL50 Pro Select with IO-Link Tower Light; 3 Segment; Voltage: 18-30V dc; Environ. Rating: IP65; Multicolor Programmable; 4-Pin M12 Quick Disconnect
    • Power: DC
  • Feature: Display: No
  • Max Current Color: 62 mA
  • Max Current - Audible Alarm (mA): 45 mA
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 50 °C
  • Ingress Protection: IP65
  • Housing Style: Base Mount - Tower
  • Max Relative Humidity: 95% @ 50 °C (NC)
  • Housing Material_: Polycarbonate
  • Feature: IO Link: Yes
  • Feature: Indication: Yes
  • Supply Voltage: 18-30 VDC
  • Feature: Quick Disconnect: Yes
  • Color Technology: RGB IO-Link
  • Feature: Audible: No
  • Housing Color: Black
  • Color Input Control: Communication Protocol
  • Multi-Color Device: Simultaneous Colors On
  • Animation Option 1: IO-Link Controlled
  • Quick Disconnect Type: M12
  • Number of Colors / Segments: 3
  • Number of Input Pins/Conductors: 4
  • Input Type: Communication Protocol
  • Mounting Thread: M30 x 1.5
  • Max Input Response Time (ms): 20 ms
  • Dimming Option: Programmable
  • Number of Tower Light Segments: 3
  • Connection Type: Integral QD
  • NEMA / UL: NEMA 4X

$ 187.00 187.0 USD $ 187.00

$ 187.00

Not Available For Sale

    This combination does not exist.
