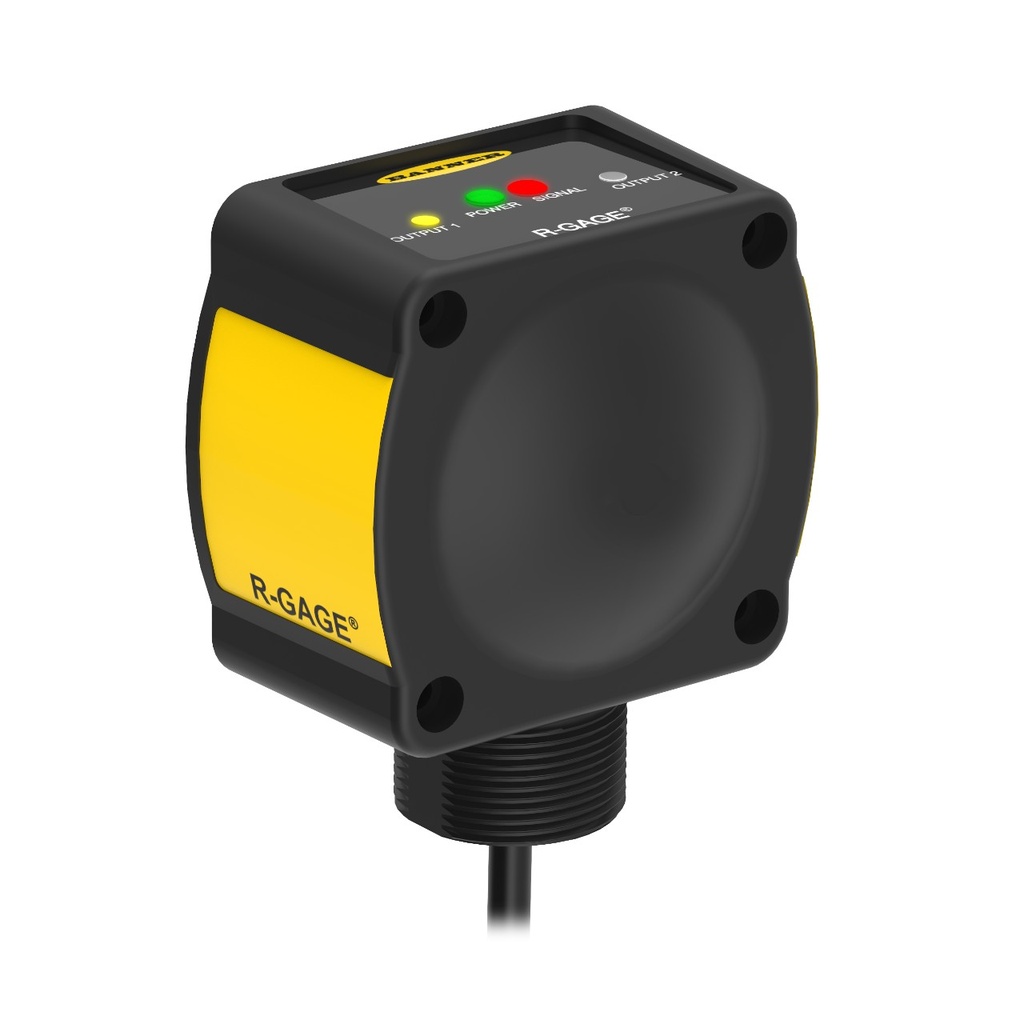

R-Gage Qt50R Series Radar Sensor (QT50R-EU-AF2UQP)
Representative photo. Please check item description for details.

R-Gage Qt50R Series Radar Sensor (QT50R-EU-AF2UQP)

https://www.branom.com/web/image/product.template/204340/image_1920?unique=c26756c
(0 review)

Features:

    R-Gage QT50R Series Radar Sensor; Adjustable Field; Outputs: 2 Discrete PNP/NPN, 1 Analog 0-10 V; Supply Voltage: 12-30 V; Range: 0.5
  • 24 m; Euro 8-pin 150 mm Pigtail
    • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 65 °C
  • Power/Current Consumption (exclusive of load): < 100 mA
  • Power Supply: 12-30 VDC
  • Delay at Power-Up: 2000 ms
  • Ingress Protection: IP67
  • Sensing Beam: Radar
  • Housing Style: Rectangular
  • Max Sensing Distance: 24000 mm
  • Sensing Mode (Detailed): Time of Flight
  • Sensing Mode (General): Proximity
  • Device Type: Sensor
  • Housing Material_: ABS/Polycarbonate
  • Feature: RS-232: No
  • Feature: RS-485: No
  • RS-422: No
  • Feature: IO Link: No
  • Feature: Wireless: No
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M12
  • Feature: Chemical Resistant: No
  • Number of Pins: 8
  • Adjustments: Dip Switch
  • Feature: Timing (Hold/Delay): No
  • Input/Output: Analog & Discrete
  • Min Response Time: 30 ms
  • Analog Resolution/Discrete Repeatability: 500
  • Max Discrete (Switched) Output (mA): 150
  • Min Sensing Distance: 500 mm
  • Discrete (Switched) Outputs: 2 PNP
  • Max Measurement Range: 20 m
  • Output Protection: Protected against short circuit
  • SSI: No
  • Profibus: No
  • Analog Voltage Output Rating: 0-10 V
  • Supply Protection Circuitry: Protected against reverse polarity and transient overvoltages
  • Operating Frequency: 24 GHz
  • Connection Type: Pigtail QD
  • Cord/Cable Length: 0.2 m
  • Feature: Common Ethernet Protocol: No
  • Feature: PC Configurable: No
  • Radar Beam Pattern (H x V °): 90 x 76
  • Indicator Type: LED

$ 2,021.00 2021.0 USD $ 2,021.00
