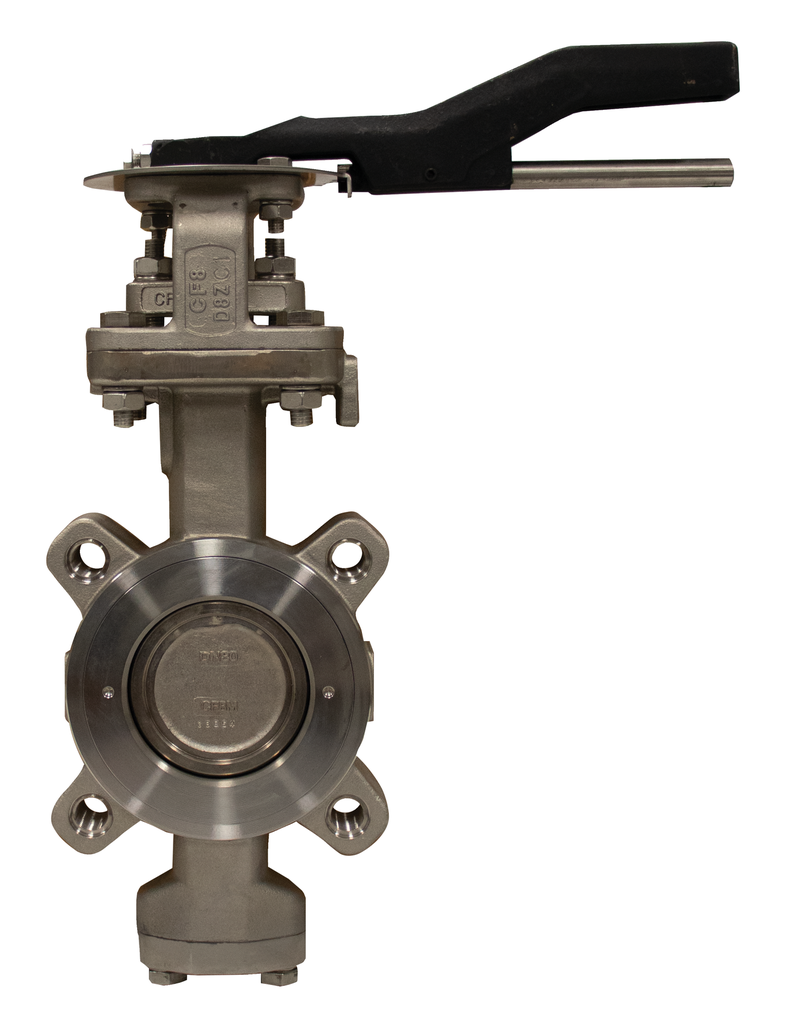

Representative photo. Please check item description for details.
8101 / 9101 / G8101 / G9101 HP Butterfly Valve Series ANSI 150 Lug Style, Butterfly Valve
8101 HP Butterfly Valve Series carbon steel manually operated ANSI 150 class, high performance lug style butterfly valves.
Features
- Manually operated ANSI 150 class, high performance Lug style butterfly valves.
- Temperature range -20°F to 446°F, 150 WSP.
- ISO 5211 direct mounting pad/square stem.
- Compact design, easy access to packing.
- Replaceable seat design.
- NACE MR0175.
- FC170-2 compliant.
- CRNs available upon request.
- Multiple V-ring stem packing.
- RPTFE seats, metal seats upon request.
- 10 position locking handle.
- Soft seat leakage protection - Class VI.
- Metal seat leakage protection - Class V.
- 14” to 24” sizes available upon request.
8101 HP Butterfly Valve Series carbon steel manually operated ANSI 150 class, high performance lug style butterfly valves.
Features
- Manually operated ANSI 150 class, high performance Lug style butterfly valves.
- Temperature range -20°F to 446°F, 150 WSP.
- ISO 5211 direct mounting pad/square stem.
- Compact design, easy access to packing.
- Replaceable seat design.
- NACE MR0175.
- FC170-2 compliant.
- CRNs available upon request.
- Multiple V-ring stem packing.
- RPTFE seats, metal seats upon request.
- 10 position locking handle.
- Soft seat leakage protection - Class VI.
- Metal seat leakage protection - Class V.
- 14” to 24” sizes available upon request.
Specifications
| Model | [8101] Carbon Steel, Manually Operated, [G8101] Carbon Steel, Gear Operated, [9101] Stainless Steel, Manually Operated, [G9101] Stainless Steel, Gear Operated |
| Valve Size | 2", 2-1/2", 3", 4", 5", 6", 8", 10", 12", 2" , 2-1/2" , 3" , 4" , 5" , 6" , 8" , 10" , 12" , 2" , 2-1/2" , 3" , 4" , 5" , 6" , 8" , 10" , 12" , 2" , 2-1/2" , 3" , 4" , 5" , 6" , 8" , 10" , 12" |
