Ttr Series 7 Beam Sensor Array 51.0 Inch Between Frame (TTR1295RPSD7T-1.0Q5-CTR)

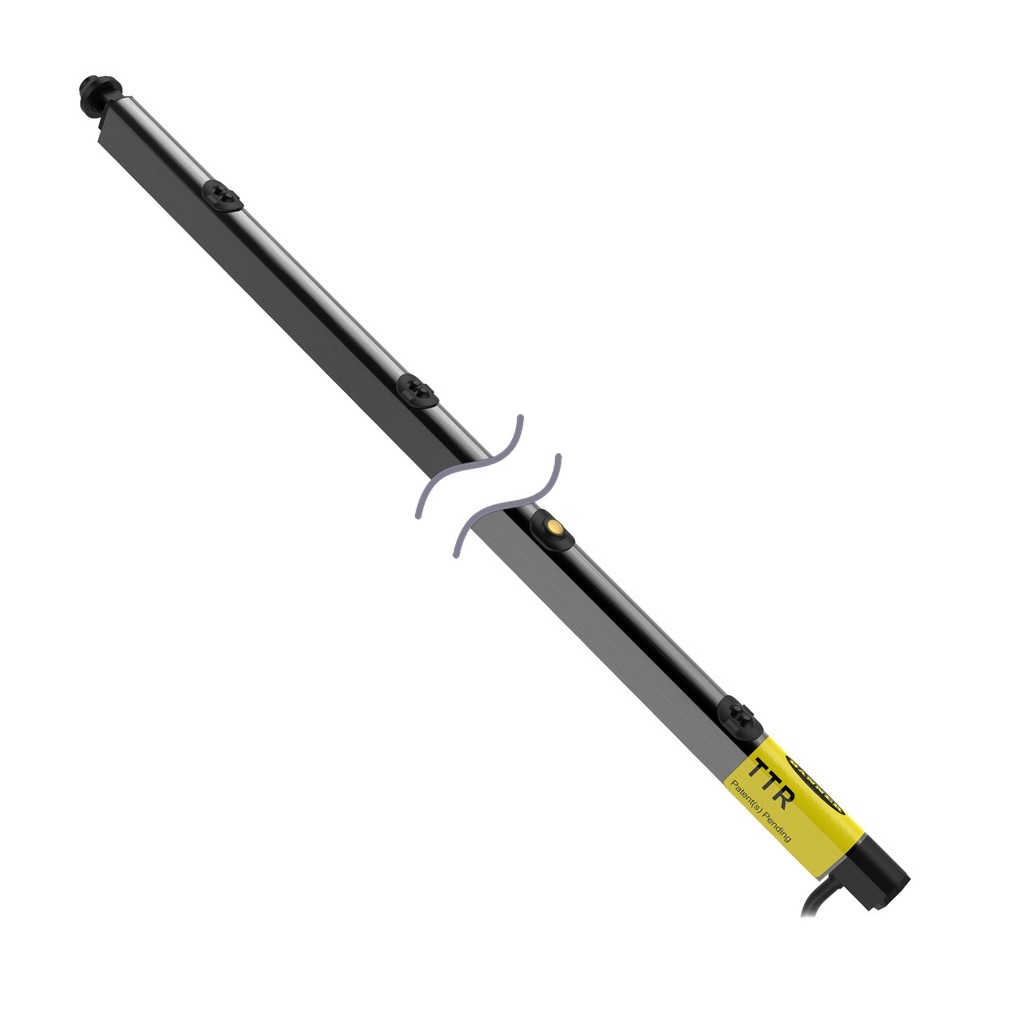

Representative photo. Please check item description for details.

Ttr Series 7 Beam Sensor Array 51.0 Inch Between Frame (TTR1295RPSD7T-1.0Q5-CTR)

https://www.branom.com/web/image/product.template/204686/image_1920?unique=c26756c
(0 review)

Features:

    TTR Series 7 Beam Sensor Array 51.0 inch Between Frame; Beam Spacing: 162 mm Range: 120 mm Diffuse; Output: DO PNP Input: 18
  • 30 V dc; M12 Conn. T: T-Slot Mount Endcap 1m (3 ft)
    • Min Operating Temperature: -10 °C
  • Max Operating Temperature: 55 °C
  • Lens Material: Polycarbonate
  • Power Supply: 18-30 VDC
  • Delay at Power-Up: 1500 ms
  • Ingress Protection: IP50
  • Housing Style: Roller Conveyor
  • Max Sensing Distance: 120 mm
  • Sensing Mode (Detailed): Diffuse
  • Beam Spacing: 162 mm
  • Max Relative Humidity: 95% @ 55 °C
  • Number of Beams: 7
  • Housing Material_: Black Anodized Aluminum
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M12
  • Output: PNP
  • Number of Pins: 4
  • Output Response Time: 1 ms
  • Operation: Dark Operate
  • Adjustments: N/A
  • Distance to First Beam: 161.5 mm
  • Connection Type: Pigtail QD
  • Cord/Cable Length: 1 m
  • End Cap Type: T: T-Slot Mounting
  • Last Beam Distance to End: 155.50 mm
  • Indicator Type: Indicator LED
  • Max Sensing Range: 120 mm
  • Slot Depth/Array Length (mm): 1295 mm
  • Slot Overall Depth (mm): 12 mm

$ 367.00 367.0 USD $ 367.00

$ 367.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
