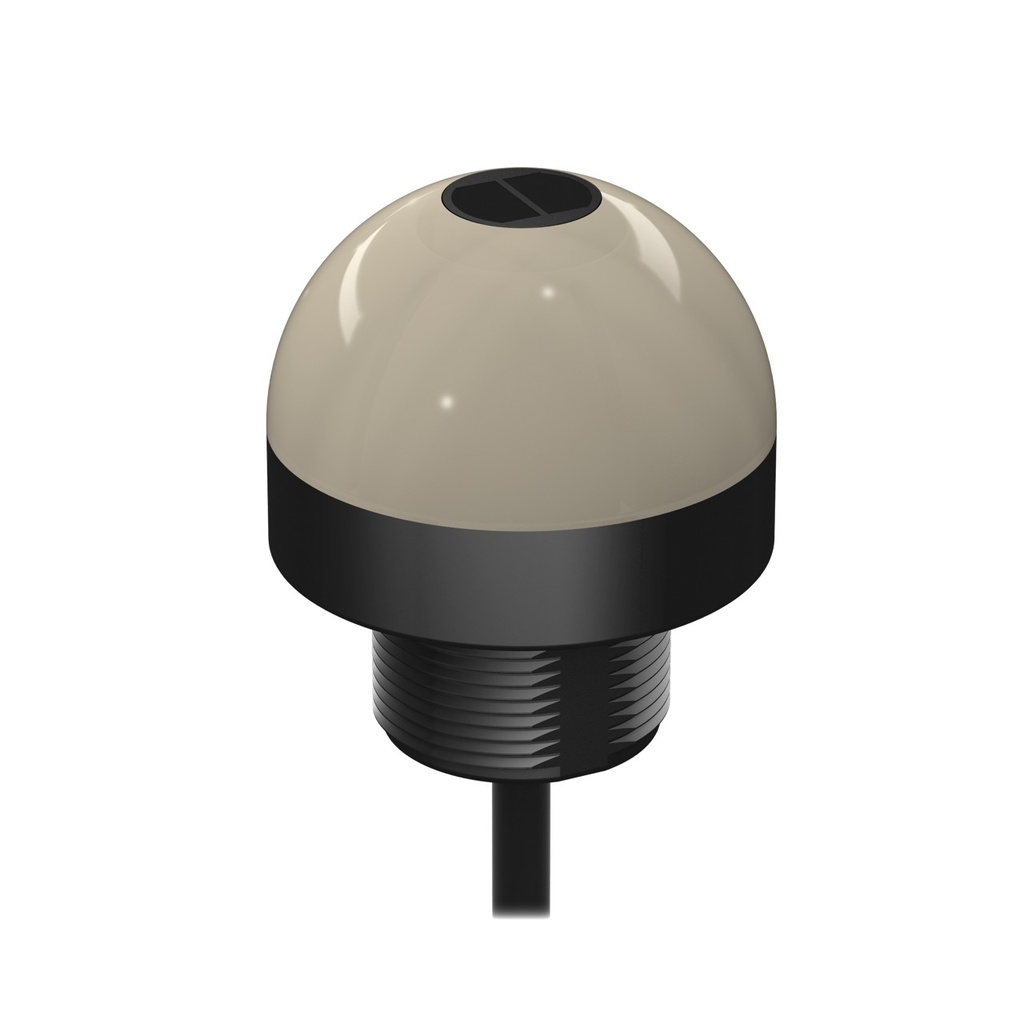

K50 D-Series Ez-Light Specialty (K50YARPHD)
Representative photo. Please check item description for details.

K50 D-Series Ez-Light Specialty (K50YARPHD)

https://www.branom.com/web/image/product.template/203641/image_1920?unique=c26756c
(0 review)

Features:

    K50 D-Series EZ-LIGHT Specialty ; 1-Color High Intensity Fixed-Field Sensor; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67; Range: 50 mm; Input: PNP Output NC; Colors: Yellow ; Euro 5-pin 150 mm (6 in) PUR Pigtail; attached to bracket SMBARPB30-810084
    • Valve: Actuation: Yes
  • Power: DC
  • Feature: Display: No
  • Max Current Color: 90 mA
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 50 °C
  • Ingress Protection: IP67/69
  • Housing Style: Base Mount - Dome Window
  • Max Sensing Distance: 50 mm
  • Sensing Mode (General): Fixed Field
  • Max Relative Humidity: 90% @ 50 °C (NC)
  • Number of Beams: 1
  • Housing Material_: Polycarbonate
  • Feature: Washdown Rated: Yes
  • Supply Voltage: 12-30 VDC
  • Feature: Quick Disconnect: Yes
  • Color Technology: Standard LED
  • Feature: Audible: No
  • Color Option 1: Yellow
  • Housing Color: Black
  • Color Input Control: Individual (One wire/color, same number of colors as input wires)
  • Multi-Color Device: Single Color On
  • Animation Option 1: Solid On
  • Quick Disconnect Type: M12
  • Number of Colors / Segments: 1
  • Number of Input Pins/Conductors: 5
  • Input Type: PNP
  • Mounting Thread: M30 x 1.5
  • Operation: Normally Closed
  • Activation Function: Optical
  • Max Output Response Time: 10 ms
  • Pick-to-Light Function: D5
  • Job Light: Yellow
  • Connection Type: Pigtail PUR QD
  • NEMA / UL: UL 4X/13
  • Cord/Cable Length: 0.15 m

$ 438.00 438.0 USD $ 438.00

$ 438.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1

    Share

    Features:

      K50 D-Series EZ-LIGHT Specialty ; 1-Color High Intensity Fixed-Field Sensor; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67; Range: 50 mm; Input: PNP Output NC; Colors: Yellow ; Euro 5-pin 150 mm (6 in) PUR Pigtail; attached to bracket SMBARPB30-810084
      • Valve: Actuation: Yes
    • Power: DC
    • Feature: Display: No
    • Max Current Color: 90 mA
    • Min Operating Temperature: -40 °C
    • Max Operating Temperature: 50 °C
    • Ingress Protection: IP67/69
    • Housing Style: Base Mount - Dome Window
    • Max Sensing Distance: 50 mm
    • Sensing Mode (General): Fixed Field
    • Max Relative Humidity: 90% @ 50 °C (NC)
    • Number of Beams: 1
    • Housing Material_: Polycarbonate
    • Feature: Washdown Rated: Yes
    • Supply Voltage: 12-30 VDC
    • Feature: Quick Disconnect: Yes
    • Color Technology: Standard LED
    • Feature: Audible: No
    • Color Option 1: Yellow
    • Housing Color: Black
    • Color Input Control: Individual (One wire/color, same number of colors as input wires)
    • Multi-Color Device: Single Color On
    • Animation Option 1: Solid On
    • Quick Disconnect Type: M12
    • Number of Colors / Segments: 1
    • Number of Input Pins/Conductors: 5
    • Input Type: PNP
    • Mounting Thread: M30 x 1.5
    • Operation: Normally Closed
    • Activation Function: Optical
    • Max Output Response Time: 10 ms
    • Pick-to-Light Function: D5
    • Job Light: Yellow
    • Connection Type: Pigtail PUR QD
    • NEMA / UL: UL 4X/13
    • Cord/Cable Length: 0.15 m
