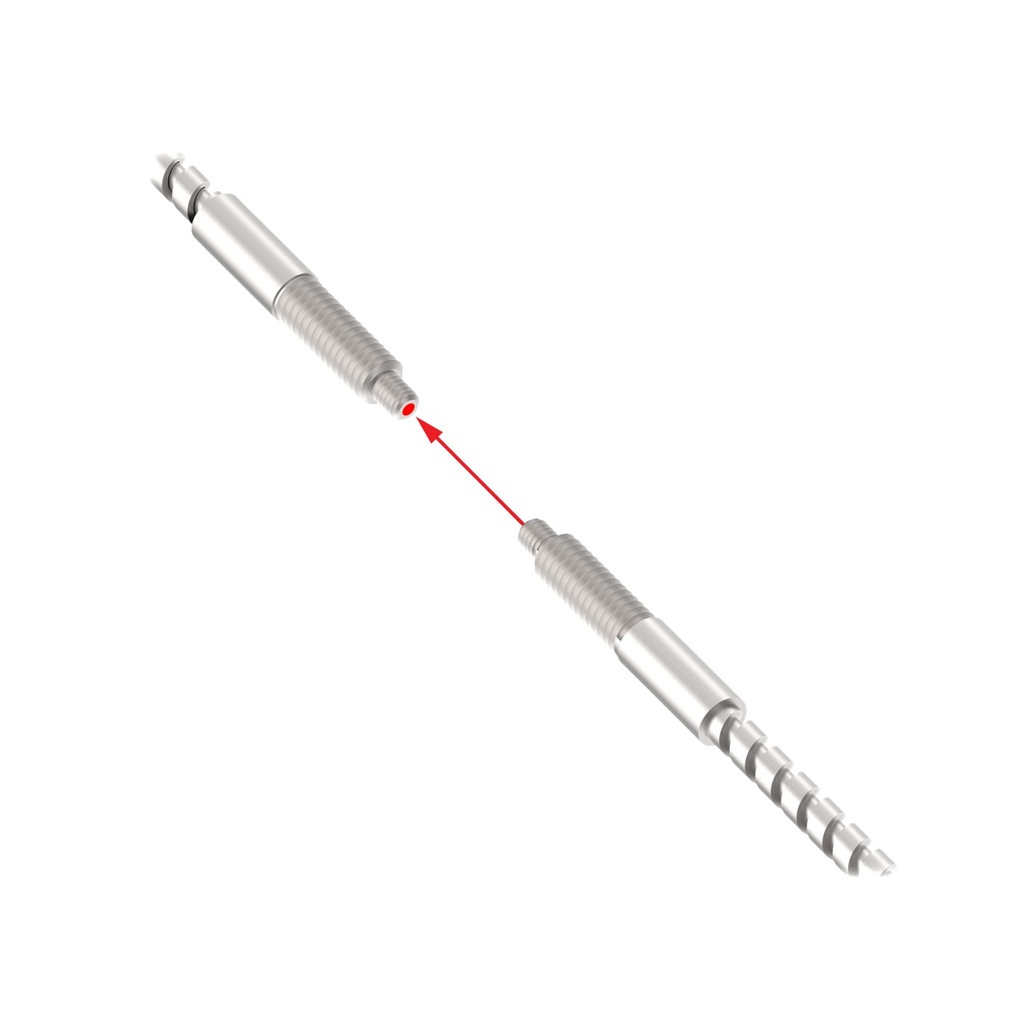

Glass Fiber Opposed Mode .61 M Long (IMT.752S-HT)
Representative photo. Please check item description for details.

Glass Fiber Opposed Mode .61 M Long (IMT.752S-HT)

https://www.branom.com/web/image/product.template/202560/image_1920?unique=c26756c
(0 review)

Features:

    Glass Fiber Opposed Mode .61 m long; 1.27 mm dia. Bundle; Stainless Steel Sheath; M4 & M2.5 Thread; Terminated for use in Plastic Fiber Sensors; Max. Operating Temperature 315C at Threaded Tip
    • Max Operating Temperature: 315 °C
  • Housing Style: Round
  • Sensing Mode (Detailed): Reflective
  • Sensing Mode (General): Opposed
  • Feature: Chemical Resistant: No
  • Sensing End Segment 1: Thread
  • Tariff Fiber Meters: 316 fbm
  • Measured Max Distance: 1118 mm
  • Min Bend Radius: 25 mm
  • Feature: Vacuum Feed Through: None
  • Feature: Small Object Detection: No
  • Fiber Sensing End Size: M2.5
  • Feature: Retractile: No
  • Fiber Sensing End Tip: Thread
  • Termination: Terminated
  • Sensing End Material (Specific): Stainless Steel
  • Feature: Integrated Lens: Yes
  • Core Diameter: 1.3 mm
  • Fiber Sheathing Material (Jacket): Stainless Steel Monocoil
  • Feature: Flex Relief: No
  • Termination Type: Plastic Fiber Sensors
  • Fiber Sensing End Size - Mounting Area: M4
  • Fiber Length: .61 m
  • Fiber Optic Type: Glass
  • Sensing End Segment 2: Thread
  • Beam Exit: In-line
  • Feature: Liquid Level: No
  • Min Hinged Door Size: 25 mm
  • Max Distance: DF-G1: 760 mm
  • Max Distance: DF-G3: No Data
  • Minimum Bend Radius: 25 mm

$ 294.00 294.0 USD $ 294.00

$ 294.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share
