World-Beam Qs18 Series: 3 Beam Sensor Array (SAB-1143AP1LP3-Q5E)

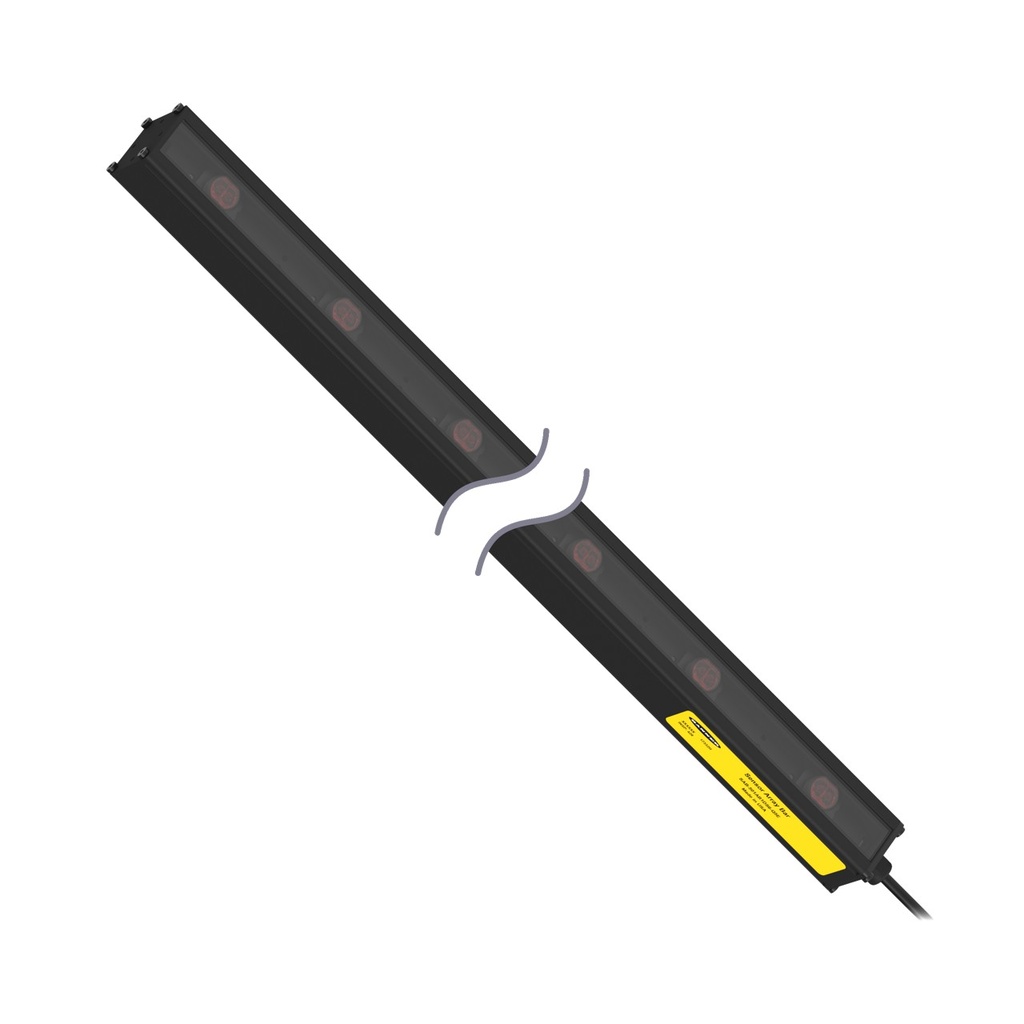

Representative photo. Please check item description for details.

World-Beam Qs18 Series: 3 Beam Sensor Array (SAB-1143AP1LP3-Q5E)

https://www.branom.com/web/image/product.template/204475/image_1920?unique=c26756c
(0 review)

Features:

    WORLD-BEAM QS18 Series: 3 Beam Sensor Array; Polarized Retro; Range: 1m; Input: 10-30 V dc; Outputs: PNP Light Operate; Euro 150 mm (6 in) 4-pin Quick-Disconnect Pigtail
    • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 55 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Ingress Protection: IP50
  • Housing Style: Sensing Array Bar
  • Max Sensing Distance: 497 mm
  • Beam Spacing: 356.33 mm
  • Max Relative Humidity: 95% @ 50 °C
  • Number of Beams: 3
  • Housing Material_: Black Anodized Aluminum
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M12
  • Output: PNP
  • Number of Pins: 4
  • Output Response Time: 1.5 ms
  • Operation: Light Operate
  • Adjustments: N/A
  • Distance to First Beam: 42.0 mm
  • Connection Type: Pigtail QD
  • Last Beam Distance to End: 1000 mm
  • Indicator Type: Indicator LED
  • Max Sensing Range: 497 mm

$ 519.00 519.0 USD $ 519.00

$ 519.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1

    Share

    Features:

      WORLD-BEAM QS18 Series: 3 Beam Sensor Array; Polarized Retro; Range: 1m; Input: 10-30 V dc; Outputs: PNP Light Operate; Euro 150 mm (6 in) 4-pin Quick-Disconnect Pigtail
