Q4X Series: Laser Adjustable Field (Q4XFILAF610-Q8)

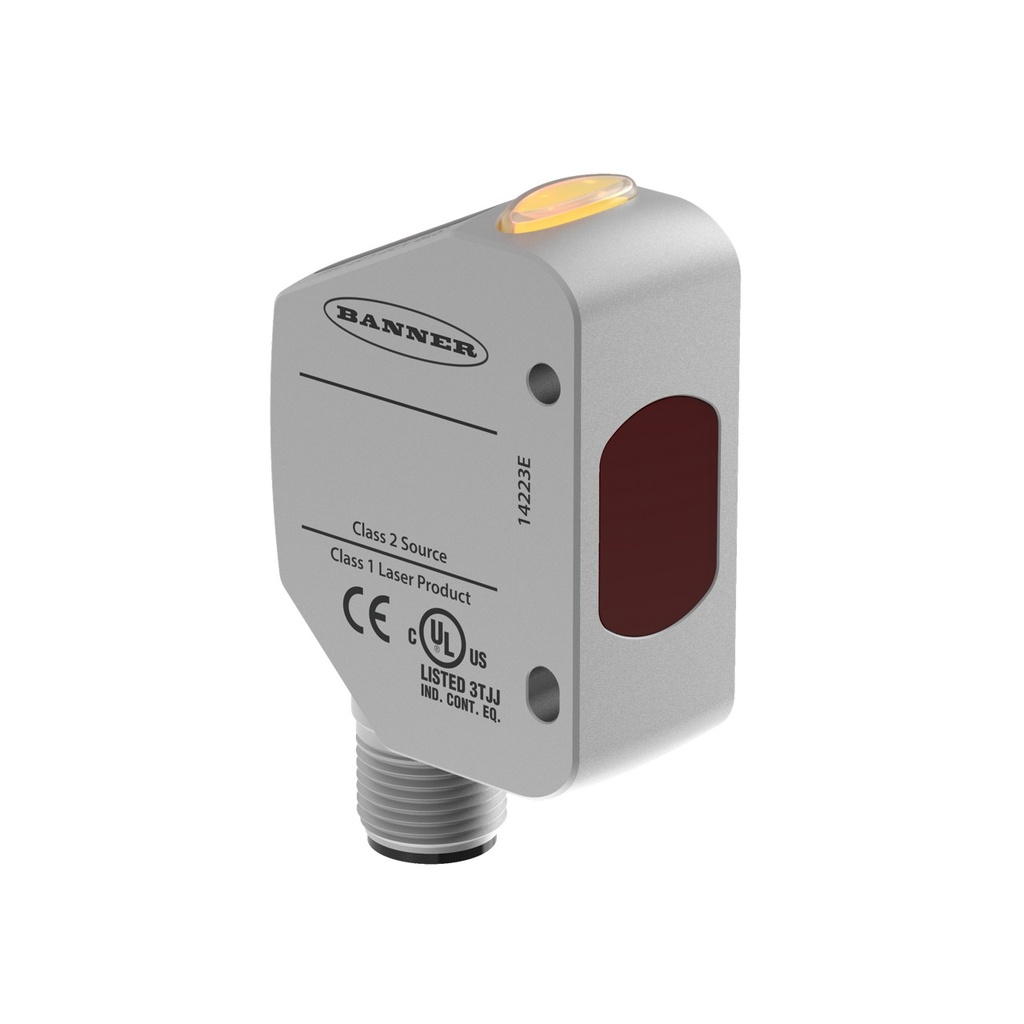

Representative photo. Please check item description for details.

Q4X Series: Laser Adjustable Field (Q4XFILAF610-Q8)

https://www.branom.com/web/image/product.template/204195/image_1920?unique=c26756c
(0 review)

Features:

    Q4X Series: Laser Adjustable Field; Range: 610 mm; Input 12-30 V dc; Output: Analog: 4-20 mA; Connection: Euro M12 5-pin Integral Connector; Flush Mount Housing
    • Analog Current Output Rating: 1 kΩ max @24 V dc, max load resistance = [(Vcc-4.5 V)/0.02 A] Ω
  • Min Operating Temperature: -10 °C
  • Max Operating Temperature: 50 °C
  • Power/Current Consumption (exclusive of load): < 700mW
  • Power Supply: 12-30 VDC
  • Temperature Effect (mm/°C): 1 mm/°C
  • Delay at Power-Up: 750 ms
  • Ingress Protection: IP67/68/69
  • Sensing Beam: Visible Red Laser
  • Housing Style: Rectangular
  • Max Sensing Distance: 610 mm
  • Sensing Mode (Detailed): Background/Foreground Suppression
  • Sensing Mode (General): Proximity
  • Housing Material_: SS
  • Feature: RS-232: No
  • Feature: RS-485: No
  • RS-422: No
  • Feature: Washdown Rated: Yes
  • Laser Classification: Class 1
  • Feature: IO Link: No
  • Feature: Wireless: No
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M12
  • Max Op. Relative NC Humidity: 95% @ 55 °C
  • Feature: Chemical Resistant: Yes
  • Storage Temp: -25 to 75 °C
  • Feature: Ecolab Certified: Yes
  • Number of Pins: 5
  • Adjustments: Push Button; Remote Teach
  • Feature: Timing (Hold/Delay): No
  • Input/Output: Analog
  • Min Response Time: 0.5 ms
  • Vibration: MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
  • Mechanical Shock: MIL-STD-202G, Meth. 213B, Cond. I (100G 6x along X, Y & Z axes, 18 total shocks) w/ sensor operating
  • Analog Resolution/Discrete Repeatability: 25 mm to 100 mm: +/- 0.5 mm, 100 mm to 600 mm: +/- 0.5%
  • Min Sensing Distance: 35 mm
  • Min Window Size: 2 mm
  • Max Measurement Range: 500-1000 mm
  • Output Protection: Protected against continuous overload and short circuit
  • Profibus: No
  • Feature: Remote Teach: Yes
  • Supply Protection Circuitry: Protected against reverse polarity and transient overvoltages
  • Spot Size (@ Reference Distance): 1.9 mm x 1.0 mm @ 610 mm
  • Feature: Analog Output(s): 4 to 20 mA
  • Connection Type: Integral QD
  • Feature: Common Ethernet Protocol: No
  • Feature: Laser Control: Yes
  • Feature: PC Configurable: No
  • Indicator Type: LED
  • Max Ambient Light: 5000 lux
  • Warm-Up Time: 10 min
