Wls15 Pro Light Strip With Io-Link (WLS15PXRGB0500DSKQP)

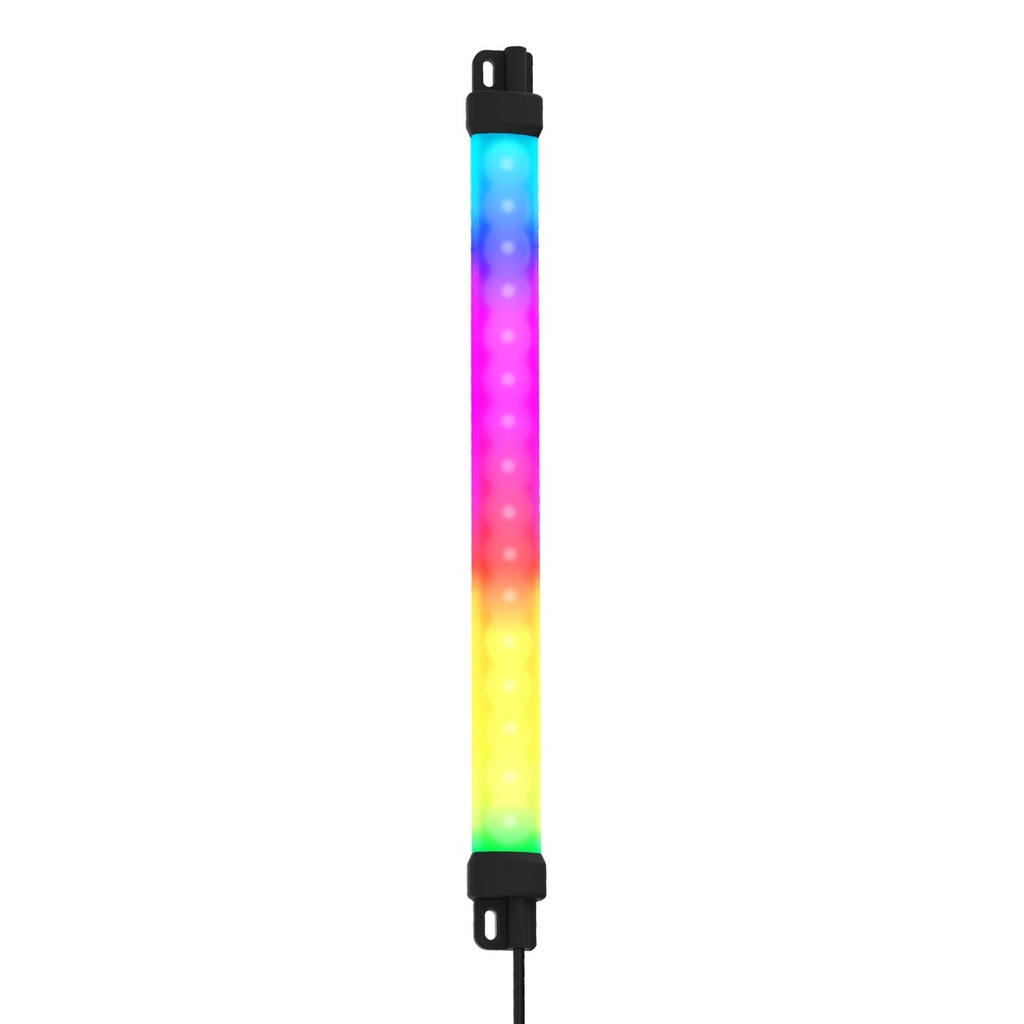

Representative photo. Please check item description for details.

Wls15 Pro Light Strip With Io-Link (WLS15PXRGB0500DSKQP)

https://www.branom.com/web/image/product.template/205730/image_1920?unique=c26756c
(0 review)

Features:

    WLS15 Pro Light Strip with IO-Link; Diffuse Window; Length: 500 mm; Voltage: 18-30 V dc; Environmental Rating: IP66; IP67; Color: RGB; Non-Cascadable; Euro 4-pin 150 mm (6 in) PVC Pigtail
  • Power: DC
  • Feature: Display: No
  • Feature: Display Lighting: No
  • Max Current Color: 255 mA
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 50 °C
  • Power Source: VDC
  • Ingress Protection: IP66/67
  • Housing Style: Linear Strip
  • Housing Material_: Polycarbonate
  • Feature: Hazardous Area: No
  • Feature: IO Link: Yes
  • Feature: Modbus RTU: No
  • Physical Dimensions: 500.0 x 30.6 x 15.5 mm
  • Feature: Wireless: No
  • Supply Voltage: 18-30 VDC
  • Feature: Quick Disconnect: Yes
  • Color Technology: RGB IO-Link
  • Feature: Audible: No
  • Color Option 1: RGB
  • Color Input Control: Communication Protocol
  • Multi-Color Device: Simultaneous Colors On
  • Animation Option 1: IO-Link Controlled
  • Quick Disconnect Type: M12
  • Number of Colors / Segments: Programmable
  • Product Size (mm): 15 mm
  • Number of Input Pins/Conductors: 4
  • Input Type: Communication Protocol
  • Feature: Pro-Editor Compatible (Discrete): No
  • Mounting Thread: No Thread
  • Feature: Chemical Resistant: No
  • Storage Temp: -40 to 70 °C
  • Wire Selectable Function: Programmable
  • Dimming Option: IO-Link Controlled
  • Number of Tower Light Segments: Programmable
  • Secondary Material: Polyamide
  • Illuminated Length (LxWxH): 426.4 mm
  • Feature: Illumination: Yes
  • Connection Type: Pigtail QD
  • Cord/Cable Length: 0.15 m

$ 250.00 250.0 USD $ 250.00

$ 250.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
