Wls15 High Intensity Light Strip (WLS15HXDW0640LS24C2)

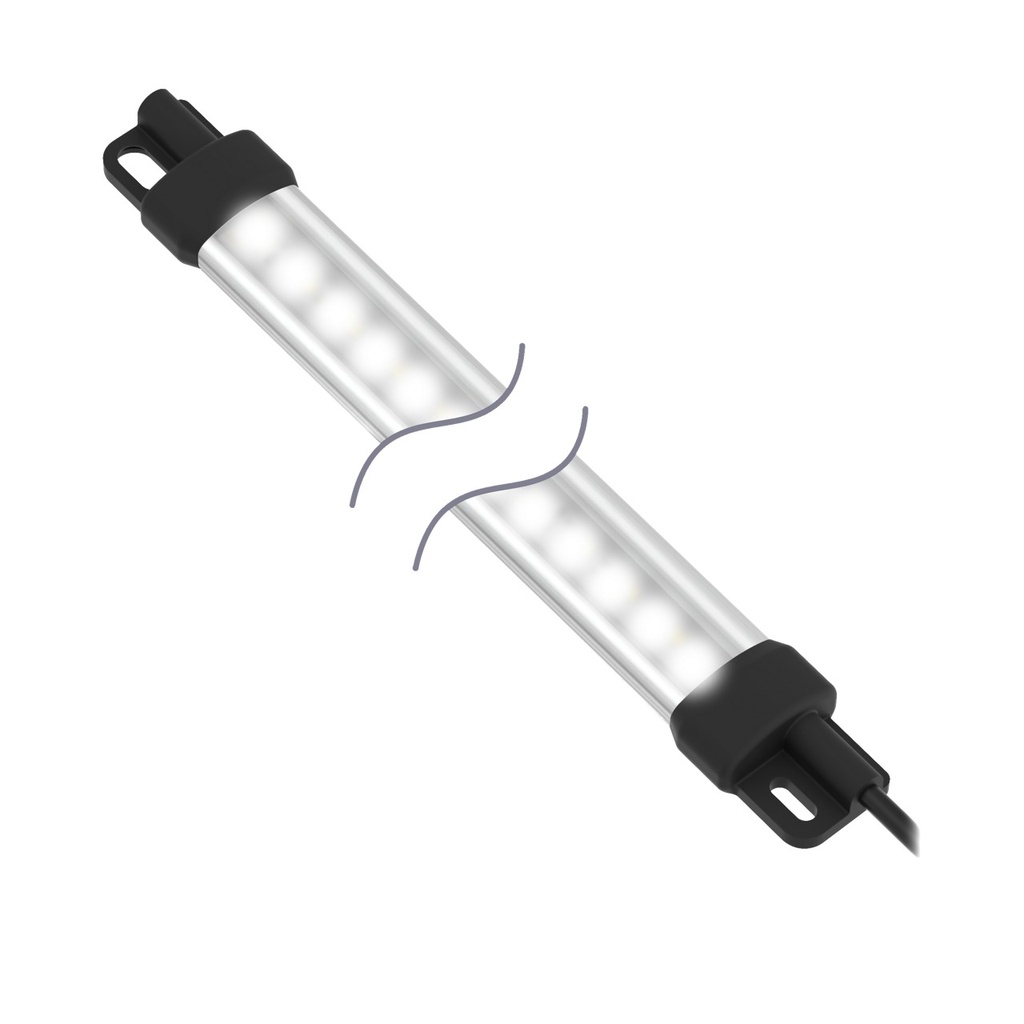

Representative photo. Please check item description for details.

Wls15 High Intensity Light Strip (WLS15HXDW0640LS24C2)

https://www.branom.com/web/image/product.template/205700/image_1920?unique=c26756c
(0 review)

Features:

    WLS15 High Intensity Light Strip; Light Diffuse Window; Length: 640 mm; Voltage: 24 V dc; Environmental Rating: IP66; IP67; Color: DW; Non-Cascadable; 2 m (6.5 ft) Cable
    • Power: DC
  • Feature: Display: No
  • Feature: Display Lighting: No
  • Max Current Color: 720 mA
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 50 °C
  • Power Source: VDC
  • Ingress Protection: IP66/67
  • Housing Style: Linear Strip
  • Housing Material_: Polycarbonate
  • Feature: Hazardous Area: No
  • Feature: IO Link: No
  • Feature: Modbus RTU: No
  • Physical Dimensions: 640.0 x 30.6 x 15.5 mm
  • Feature: Wireless: No
  • Supply Voltage: 24 VDC
  • Feature: Quick Disconnect: No
  • Lumens Color 1: 1500
  • Color Technology: Standard LED
  • Feature: Audible: No
  • Color Option 1: Daylight White
  • Color 1 - Wavelength/Color Temp/Coordinates: 5000K (Daylight)
  • Color Input Control: Individual (One wire/color, same number of colors as input wires)
  • Number of Colors / Segments: 1
  • Product Size (mm): 15 mm
  • Number of Input Pins/Conductors: 3
  • Feature: Pro-Editor Compatible (Discrete): No
  • Mounting Thread: No Thread
  • Feature: Chemical Resistant: No
  • Storage Temp: -40 to 70 °C
  • Dimming Option: High-Low-Off
  • Secondary Material: Polyamide
  • Illuminated Length (LxWxH): 566.4 mm
  • Feature: Illumination: Yes
  • Connection Type: Cable
  • Cord/Cable Length: 2 m
