Lc15T Light Controller (LC15T-127AP2RBGQP)
Representative photo. Please check item description for details.

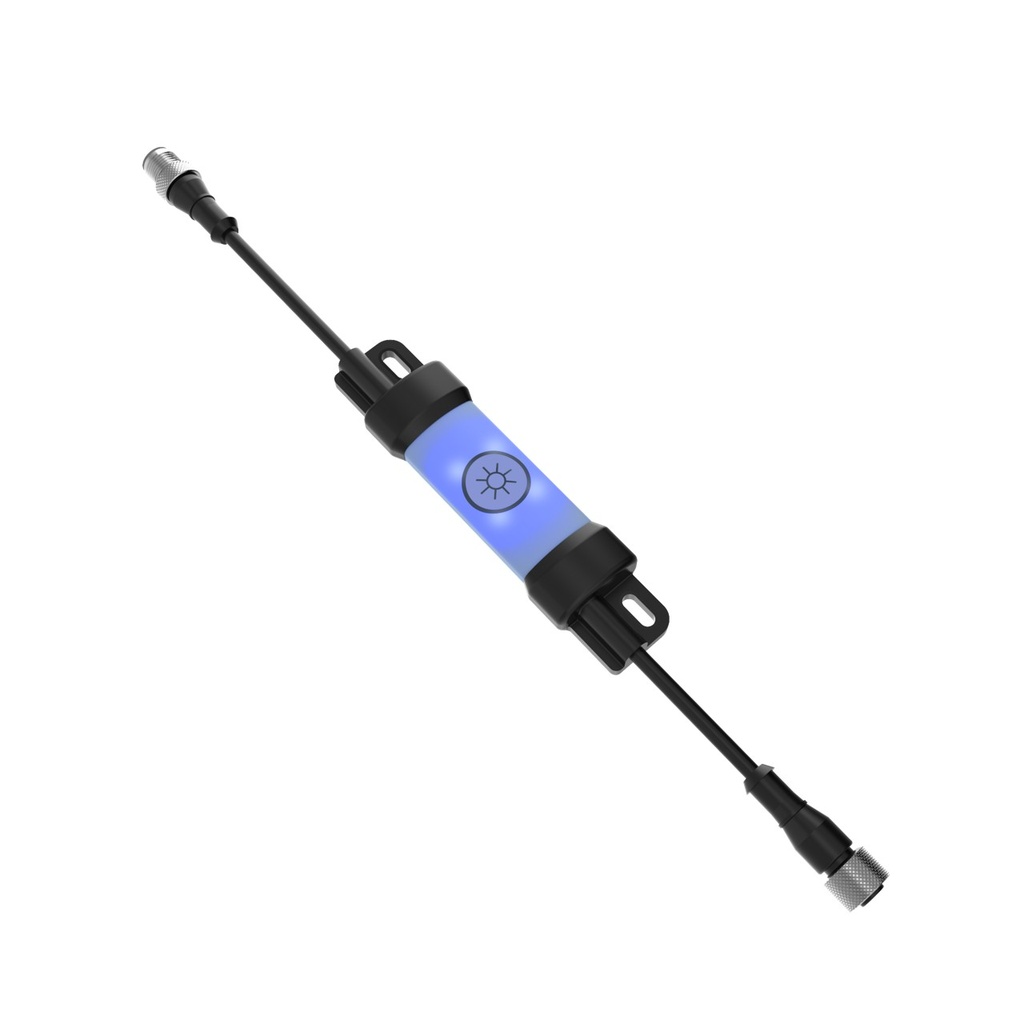

Lc15T Light Controller (LC15T-127AP2RBGQP)

https://www.branom.com/web/image/product.template/203807/image_1920?unique=c26756c
(0 review)

Features:

    LC15T Light Controller; 3-Color Touch Sensor; Voltage: 10-30 V dc; 4 Amps; Environmental Rating: IP66, IP67; Colors: Red Blue Green; 2-Wire PWM Control; Euro 4-Pin Male-Female 150 mm (6 in) PVC Pigtails
    • Valve: Actuation: Yes
  • Power: DC
  • Feature: Display: No
  • Max Current Color: 22 mA
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 60 °C
  • Ingress Protection: IP66/67
  • Housing Style: Inline
  • Housing Material_: Polycarbonate
  • Color Option 3: Green
  • Supply Voltage: 12-30 VDC
  • Color Option 2: Blue
  • Feature: Quick Disconnect: Yes
  • Lumens Color 1: 1.3
  • Color Technology: Standard LED
  • Feature: Audible: No
  • Color Option 1: Red
  • Color 1 - Wavelength/Color Temp/Coordinates: 620 nm
  • Housing Color: Black
  • Multi-Color Device: Single Color On
  • Quick Disconnect Type: M12
  • Number of Colors / Segments: 3
  • Color 3 - Wavelength/Color Temp/Coordinates: 522 nm
  • Lumens Color 2: 0.9
  • Lumens Color 3: 2.5
  • Color 2 - Wavelength/Color Temp/Coordinates: 466 nm
  • Number of Input Pins/Conductors: 4
  • Input Type: PNP
  • Mounting Thread: No Thread
  • Storage Temp: -40 to 70 °C
  • Dimming Option: PWM
  • Secondary Material: Polyamide
  • Output: PNP and PWM
  • Operation: Normally Open
  • Illumination Switch Function: O=OFF; I=ON, PWM 2 Wire
  • Feature: Illumination: Yes
  • Activation Function: Capacitive Touch
  • Connection Type: Pigtail QD

$ 135.00 135.0 USD $ 135.00

$ 135.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1

    Share

    Features:

      LC15T Light Controller; 3-Color Touch Sensor; Voltage: 10-30 V dc; 4 Amps; Environmental Rating: IP66, IP67; Colors: Red Blue Green; 2-Wire PWM Control; Euro 4-Pin Male-Female 150 mm (6 in) PVC Pigtails
      • Valve: Actuation: Yes
    • Power: DC
    • Feature: Display: No
    • Max Current Color: 22 mA
    • Min Operating Temperature: -40 °C
    • Max Operating Temperature: 60 °C
    • Ingress Protection: IP66/67
    • Housing Style: Inline
    • Housing Material_: Polycarbonate
    • Color Option 3: Green
    • Supply Voltage: 12-30 VDC
    • Color Option 2: Blue
    • Feature: Quick Disconnect: Yes
    • Lumens Color 1: 1.3
    • Color Technology: Standard LED
    • Feature: Audible: No
    • Color Option 1: Red
    • Color 1 - Wavelength/Color Temp/Coordinates: 620 nm
    • Housing Color: Black
    • Multi-Color Device: Single Color On
    • Quick Disconnect Type: M12
    • Number of Colors / Segments: 3
    • Color 3 - Wavelength/Color Temp/Coordinates: 522 nm
    • Lumens Color 2: 0.9
    • Lumens Color 3: 2.5
    • Color 2 - Wavelength/Color Temp/Coordinates: 466 nm
    • Number of Input Pins/Conductors: 4
    • Input Type: PNP
    • Mounting Thread: No Thread
    • Storage Temp: -40 to 70 °C
    • Dimming Option: PWM
    • Secondary Material: Polyamide
    • Output: PNP and PWM
    • Operation: Normally Open
    • Illumination Switch Function: O=OFF; I=ON, PWM 2 Wire
    • Feature: Illumination: Yes
    • Activation Function: Capacitive Touch
    • Connection Type: Pigtail QD
