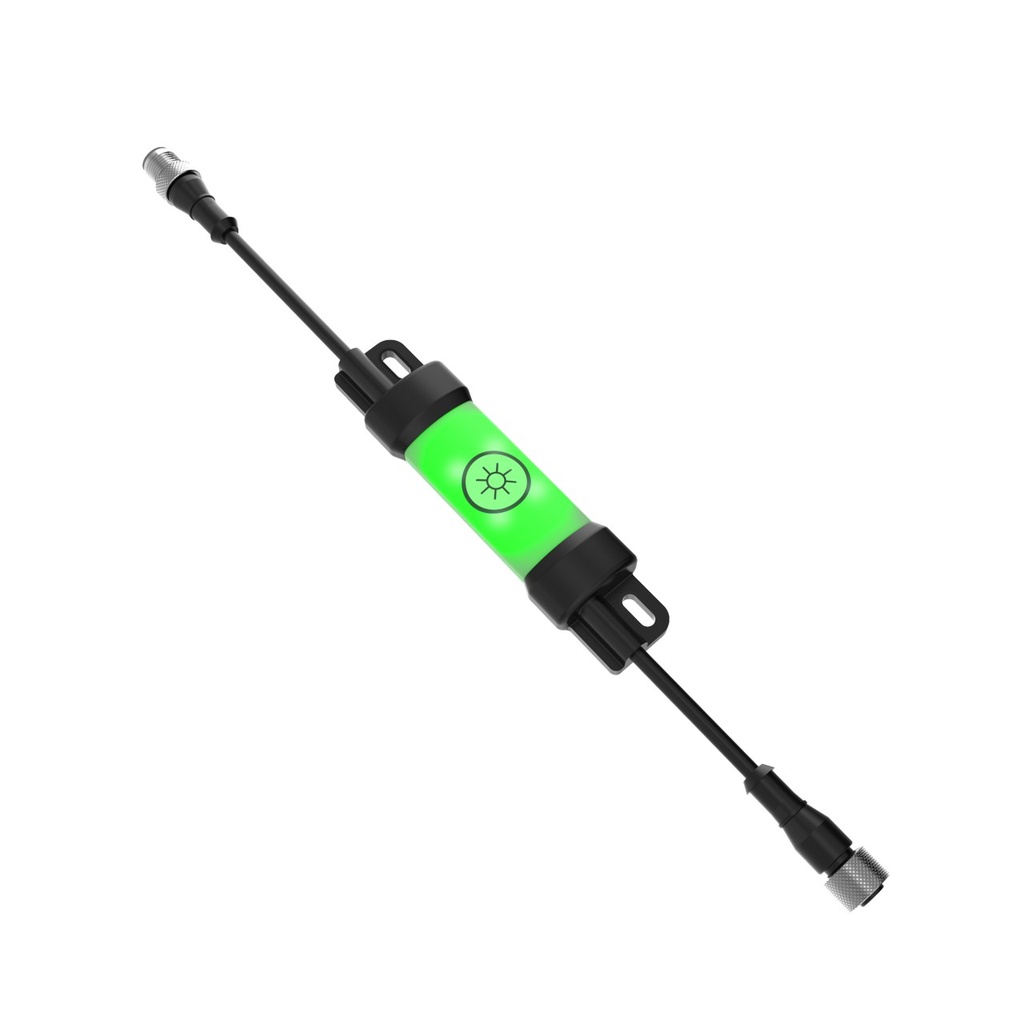

LC15T Light Controller (LC15T-127AL2RGQP)

https://www.branom.com/web/image/product.template/195436/image_1920?unique=c26756c
(0 review)

Features:

  • LC15T Light Controller
  • 2-Color Touch Sensor
  • Voltage: 10-30 V dc
  • 4 Amps
  • Environmental Rating: IP66, IP67
  • Colors: Red Green
  • ON/OFF
  • Euro 4-Pin Male-Female 150 mm (6 in) PVC Pigtails
    • Valve: Actuation: Yes
  • Power: DC
  • Feature: Display: No
  • Max Current Color: 22 mA
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 60 °C
  • Ingress Protection: IP66/67
  • Housing Style: Inline
  • Housing Material_: Polycarbonate
  • Color Option 3: Green
  • Supply Voltage: 12-30 VDC
  • Feature: Quick Disconnect: Yes
  • Lumens Color 1: 1.3
  • Color Technology: Standard LED
  • Feature: Audible: No
  • Color Option 1: Red
  • Color 1 - Wavelength/Color Temp/Coordinates: 620 nm
  • Housing Color: Black
  • Multi-Color Device: Single Color On
  • Quick Disconnect Type: M12
  • Number of Colors / Segments: 3
  • Color 3 - Wavelength/Color Temp/Coordinates: 522 nm
  • Lumens Color 2: 0.9
  • Lumens Color 3: 2.5
  • Number of Input Pins/Conductors: 4
  • Input Type: PNP
  • Mounting Thread: No Thread
  • Storage Temp: -40 to 70 °C
  • Secondary Material: Polyamide
  • Output: PNP
  • Operation: Normally Open
  • Illumination Switch Function: O=OFF; I=ON
  • Feature: Illumination: Yes
  • Activation Function: Capacitive Touch
  • Connection Type: Pigtail QD

$ 113.00 113.0 USD $ 113.00

$ 113.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1

    Share
