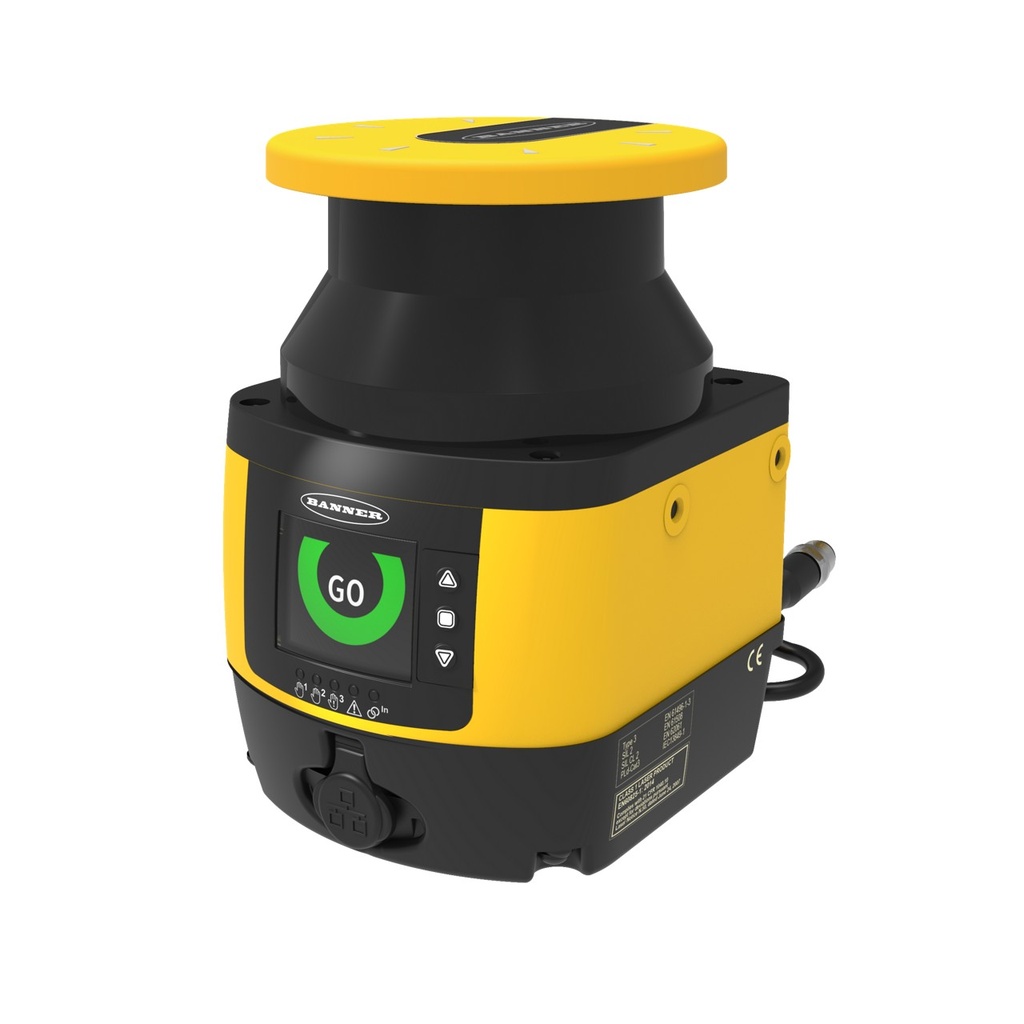

Sx5 Series Safety Laser Scanner, Standalone With Replaceable Window (SX5-B6)
Features:
- SX5 Series Safety Laser Scanner, Standalone with Replaceable Window; Safety Zone Sets: 6; Safety Outputs: 1 OSSD Pair; Protective Field Range: 0.05 m to 5.5 m; Scanning Angle Degrees (max): 275
- Power Consumption: 0.3 A (exclusive of load)
- Safe Output Rating: OSSD 0.250 A max. @ 24 VDC
- Operating Voltage: 24 VDC +/- 20%
- Safe Outputs: 2
- Laser Classification: Class 1
- Feature: Replaceable Window: Yes
- Feature: Removable Memory: No
- Scanner Type: Stand Alone
- Available Resolutions (mm): 30, 40, 50, 70, 150
- Feature: Encoder Inputs: No
