Representative photo. Please check item description for details.

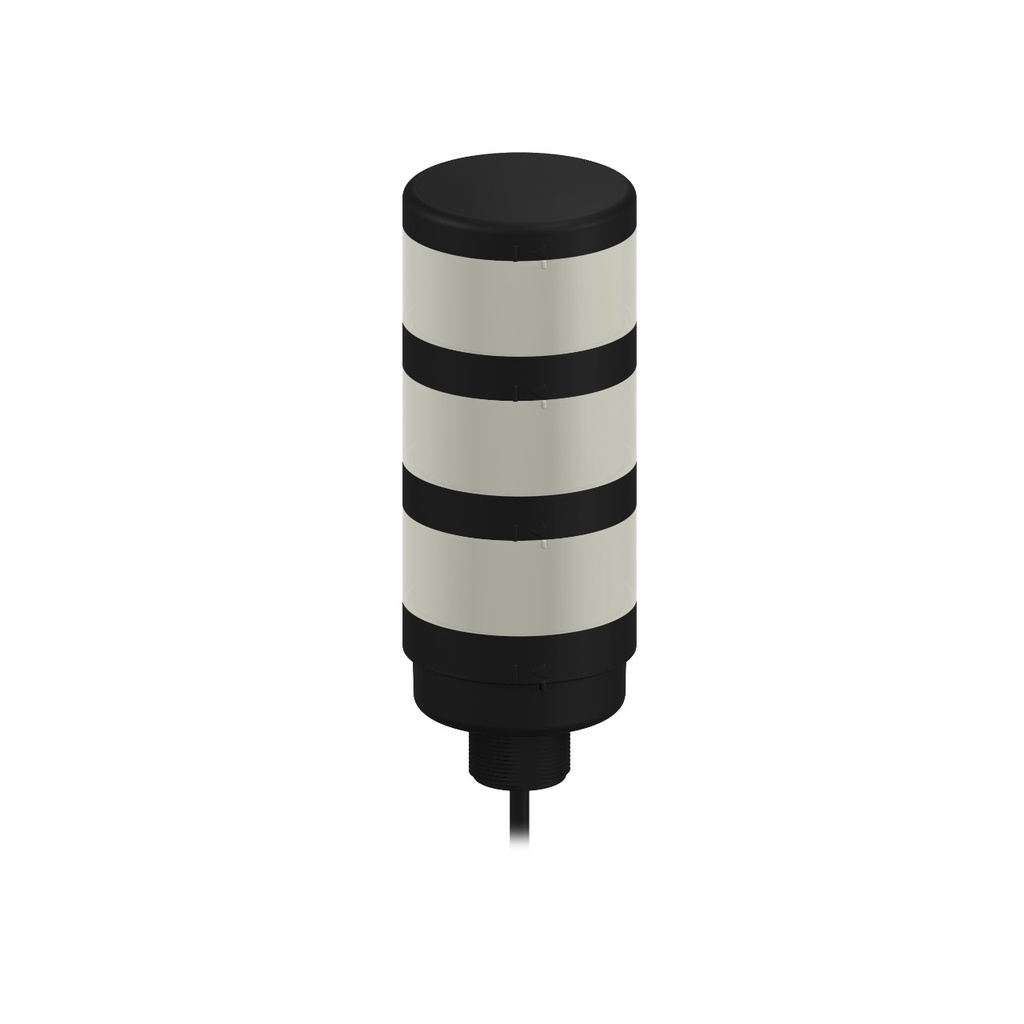

Tl70 Wireless Tower Light (TL70DXN9RYG)
Features:
- TL70 Wireless Tower Light; 900 MHz; Black Housing: 3-Color Indicator; Voltage: 12-30 V dc; Environmental Rating: IP65; Colors: Red Yellow Green; 2m (6.5 ft) 5-Wire Cable
- Power: DC
- Feature: Display: No
- Feature: Display Lighting: No
- Max Current Color: 420 mA
- Min Operating Temperature: -40 °C
- Max Operating Temperature: 50 °C
- Power Source: VDC
- Ingress Protection: IP65
- Housing Style: Segment - Base
- Max Relative Humidity: 95% @ 50 °C (NC)
- Housing Material_: Polycarbonate
- Feature: Hazardous Area: No
- Feature: IO Link: No
- Feature: Modbus RTU: No
- Physical Dimensions: 70.0 x 268.6 mm
- Feature: Wireless: Yes
- Feature: Indication: Yes
- Color Option 3: Green
- Supply Voltage: 12-30 VDC
- Color Option 2: Yellow
- Feature: Quick Disconnect: No
- Lumens Color 1: 40
- Animation Option 3: Dip-Switch Controlled
- Color Technology: Standard LED
- Feature: Audible: No
- Color Option 1: Red
- Animation Option 2: Dip-Switch Controlled
- Color 1 - Wavelength/Color Temp/Coordinates: 625 nm
- Housing Color: Black
- Color Input Control: Individual (One wire/color, same number of colors as input wires)
- Multi-Color Device: Simultaneous Colors On
- Animation Option 1: Dip-Switch Controlled
- Number of Colors / Segments: 3
- Color 3 - Wavelength/Color Temp/Coordinates: 525 nm
- Lumens Color 2: 22
- Lumens Color 3: 92
- Product Size (mm): 70 mm
- Color 2 - Wavelength/Color Temp/Coordinates: 590 nm
- Number of Input Pins/Conductors: 5
- Input Type: PNP or Communication Protocol
- Max Op. Relative NC Humidity: 95% @ 50 °C
- Feature: Pro-Editor Compatible (Discrete): No
- Mounting Thread: M30 x 1.5
- Max Input Response Time (ms): 180 ms
- Feature: Chemical Resistant: No
- Storage Temp: -40 to 70 °C
- Number of Tower Light Segments: 3
- Wireless Radio Frequency: 900 MHz
- Wireless Network: Node
- Connection Type: Cable
- Cord/Cable Length: 2 m
