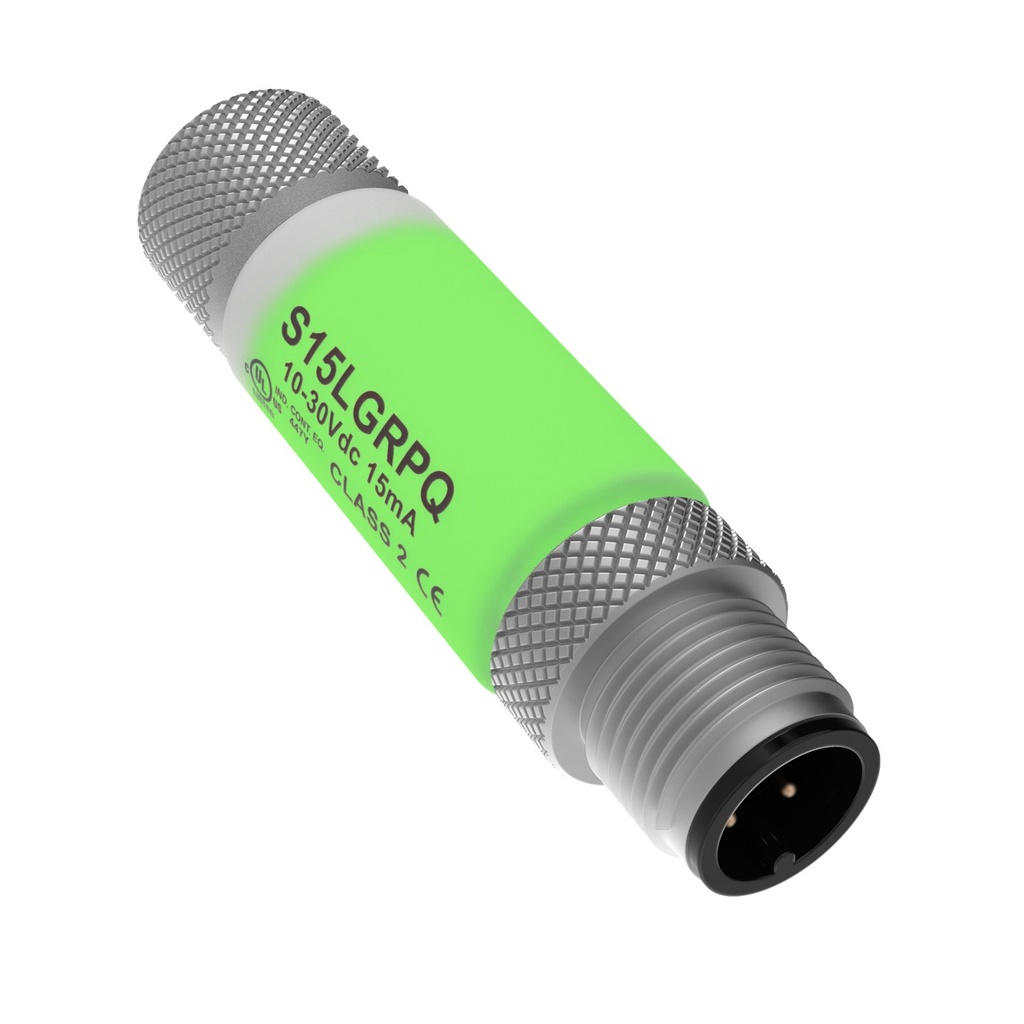

S15L Series: 2-Color In-Line Sensor Status Indicator (S15LGRPQ)

https://www.branom.com/web/image/product.template/189056/image_1920?unique=c26756c
(0 review)

Features:

  • S15L Series: 2-Color In-Line Sensor Status Indicator
  • Voltage: 10-30 V dc
  • Housing: Polyurethane
  • IP67
  • Input: PNP
  • Colors: Green Red
  • Male-Female Euro 4-pin Quick-Disconnect Connector
    • Power: DC
  • Feature: Display Lighting: No
  • Max Current Color: 15 mA
  • Power Source: VDC
  • Ingress Protection: IP66/67
  • Housing Style: Barrel - Straight
  • Feature: Hazardous Area: No
  • Feature: IO Link: No
  • Feature: Modbus RTU: No
  • Physical Dimensions: 15.0 X 58.0 mm
  • Feature: Wireless: No
  • Feature: Indication: Yes
  • Supply Voltage: 10-30 VDC
  • Color Option 2: Red
  • Feature: Quick Disconnect: Yes
  • Color Technology: Standard LED
  • Feature: Audible: No
  • Color Option 1: Green
  • Color 1 - Wavelength/Color Temp/Coordinates: 525 nm
  • Color Input Control: Individual (One wire/color, same number of colors as input wires)
  • Multi-Color Device: Single Color On
  • Animation Option 1: Solid On
  • Quick Disconnect Type: M12 (Euro)
  • Number of Colors / Segments: 2
  • Product Size (mm): 15 mm
  • Color 2 - Wavelength/Color Temp/Coordinates: 625 nm
  • Number of Input Pins/Conductors: 4
  • Input Type: PNP
  • Max Op. Relative NC Humidity: 95% @ 50 °C
  • Feature: Pro-Editor Compatible (Discrete): No
  • Mounting Thread: No Thread
  • Feature: Chemical Resistant: No
  • Storage Temp: -40 to 70 °C
  • Connection: Integral QD

$ 42.00 42.0 USD $ 42.00

$ 42.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
