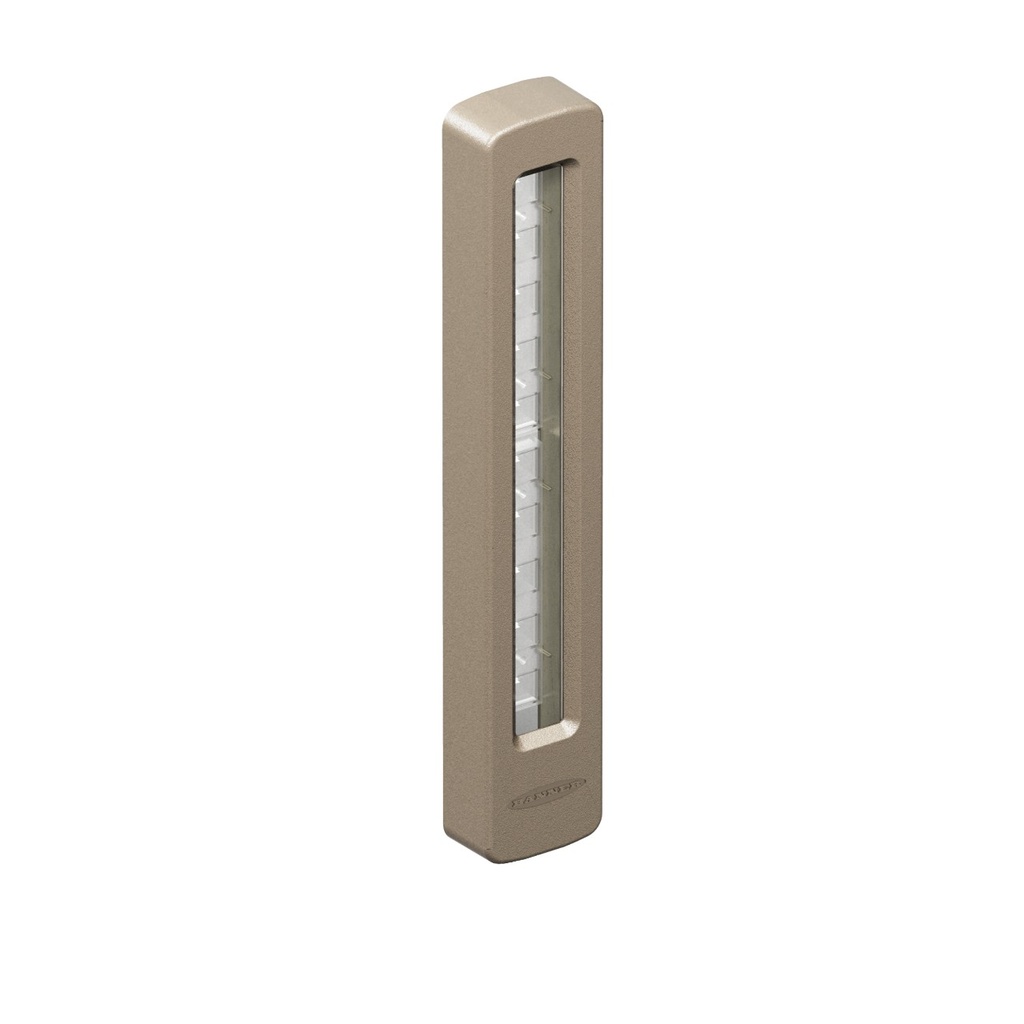

Wlc60 Work Light (WLC60XW340ARPWMQ)
Representative photo. Please check item description for details.

Wlc60 Work Light (WLC60XW340ARPWMQ)

https://www.branom.com/web/image/product.template/205645/image_1920?unique=c26756c
(0 review)

Features:

    WLC60 Work Light; Length: 340 mm; Nickel Plated Aluminum; PWM Dimming; Voltage: 12-30 V dc; Environmental Rating: IP68g, IP69K; Color: White; Window: Polycarbonate; Euro 4-pin Integral Connector; Rear Exit
    • Power: DC
  • Feature: Display: No
  • Feature: Display Lighting: No
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 70 °C
  • Power Source: VDC
  • Ingress Protection: IP67/68/68G/69K
  • Housing Style: Linear Strip
  • Housing Material_: Nickel-Plated Aluminum
  • Feature: Washdown Rated: Yes
  • Feature: Hazardous Area: No
  • Feature: IO Link: No
  • Feature: Modbus RTU: No
  • Physical Dimensions: 339.9 x 60.9 x 52.3 mm
  • Feature: Wireless: No
  • Supply Voltage: 12-30 VDC
  • Feature: Quick Disconnect: Yes
  • Lumens Color 1: 1300
  • Color Technology: Standard LED
  • Feature: Audible: No
  • Color Option 1: Cool White
  • Color 1 - Wavelength/Color Temp/Coordinates: 6500K (Cool)
  • Color Input Control: Individual (One wire/color, same number of colors as input wires)
  • Animation Option 1: Solid On
  • Quick Disconnect Type: M12
  • Number of Colors / Segments: 1
  • Product Size (mm): 60 mm
  • Number of Input Pins/Conductors: 4
  • Feature: Pro-Editor Compatible (Discrete): No
  • Mounting Thread: No Thread
  • Feature: Chemical Resistant: Yes
  • Storage Temp: -40 to 70 °C
  • Dimming Option: High-Low-Off
  • Illuminated Length (LxWxH): 254.6 mm
  • Feature: Illumination: Yes
  • Connection Type: Integral QD

$ 449.00 449.0 USD $ 449.00

$ 449.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1

    Share

    Features:

      WLC60 Work Light; Length: 340 mm; Nickel Plated Aluminum; PWM Dimming; Voltage: 12-30 V dc; Environmental Rating: IP68g, IP69K; Color: White; Window: Polycarbonate; Euro 4-pin Integral Connector; Rear Exit
