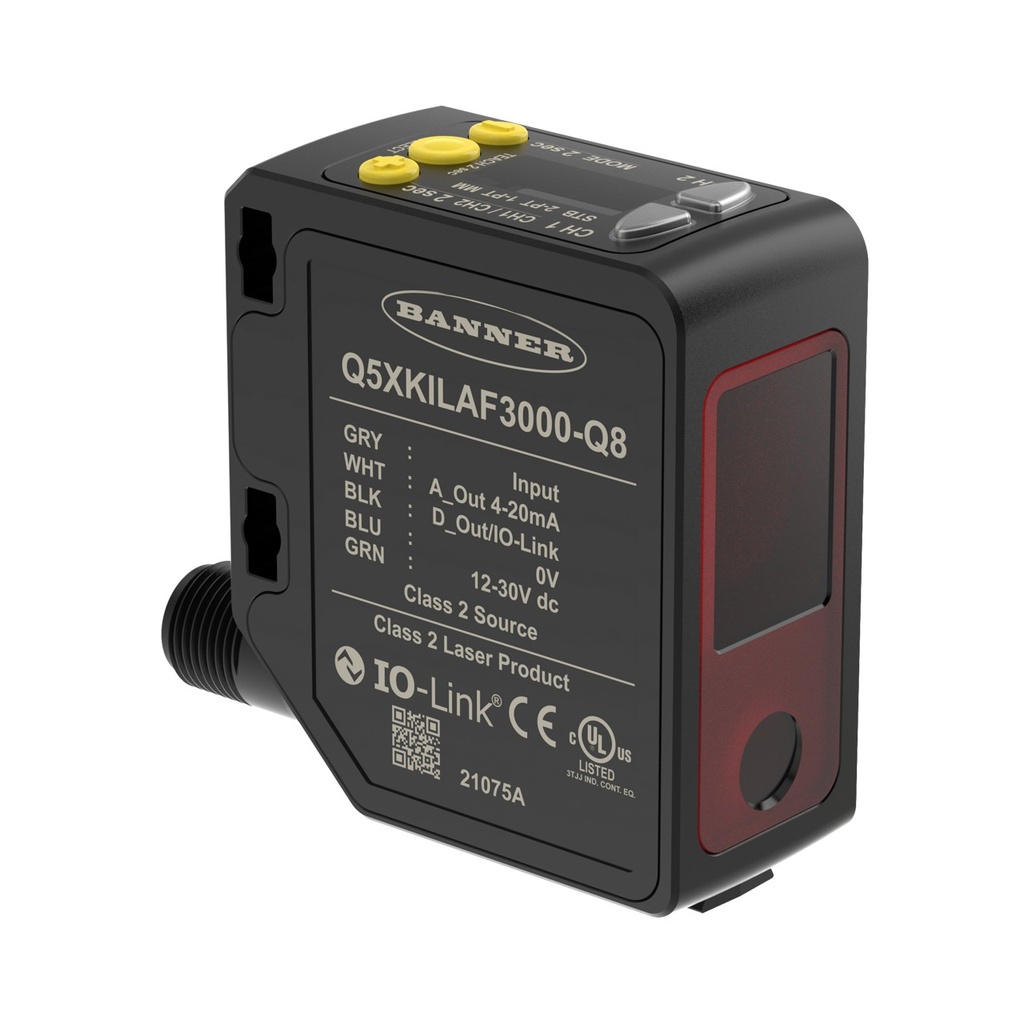

Q5X Series: Laser Adjustable Field (Q5XKILAF3000-Q8)

https://www.branom.com/web/image/product.template/194746/image_1920?unique=c26756c
(0 review)

Features:

  • Q5X Series: Laser Adjustable Field
  • Range: 3000 mm
  • Input 12-30 V dc
  • Analog: 4-20 mA Discrete: PNP/NPN with IO-Link
  • Connection: Euro M12 5-Pin Integral Connector
  • Analog Current Output Rating: 0.3 kΩ max @24 V dc, max load resistance = [(Vcc-4.5 V)/0.02 A] Ω
  • Min Operating Temperature: -10 °C
  • Max Operating Temperature: 50 °C
  • Power/Current Consumption (exclusive of load): < 1 W
  • Power Supply: 12-30 VDC
  • Temperature Effect (mm/°C): < +/- 0.5 mm/°C < 500 mm,< +/- 1.0 mm/°C at < 1000 mm, < +/- 3.5 mm/°C at < 2000 mm, < +/- 5.0 mm/°C at < 3000 mm
  • Delay at Power-Up: 2500 ms
  • Ingress Protection: IP67
  • Sensing Beam: Visible Red Laser
  • Housing Style: Rectangular
  • Max Sensing Distance: 3000 mm
  • Sensing Mode (Detailed): Background/Foreground Suppression
  • Sensing Mode (General): Proximity
  • Device Type: Sensor
  • Housing Material_: ABS
  • Feature: RS-232: No
  • Feature: RS-485: No
  • RS-422: No
  • Laser Classification: Class 2
  • Feature: IO Link: Yes
  • Feature: Wireless: No
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M12
  • Max Op. Relative NC Humidity: 95% @ 50 °C
  • Feature: Chemical Resistant: No
  • Storage Temp: -25 to 70 °C
  • Number of Pins: 4
  • Adjustments: Push Button; Remote Teach
  • Feature: Timing (Hold/Delay): Yes
  • Input/Output: Analog & Discrete
  • Min Response Time: 0.5 ms
  • Vibration: MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
  • Mechanical Shock: MIL-STD-202G, Meth. 213B, Cond. I (100G 6x along X, Y & Z axes, 18 total shocks) w/ sensor operating
  • Output Saturation Voltage PNP Outputs: < 2.5 V @ 50 mA
  • Analog Resolution/Discrete Repeatability: 95 to 300 +/- 0.5 mm, 300 to 1000 +/- 0.25%, 1000 to 2000 +/- 0.5%, 2000 to 3000+/- 1.0%
  • Max Discrete (Switched) Output (mA): 50
  • Min Sensing Distance: 95 mm
  • Feature: Clear Object Detection: Yes
  • Min Window Size: 1 mm
  • Discrete (Switched) Outputs: 1 NPN/PNP Configurable
  • Max Measurement Range: 1-20 m
  • Output Protection: Protected against continuous overload and short circuit
  • Profibus: No
  • Feature: Remote Teach: Yes
  • Output Saturation Voltage NPN Outputs: <2.5 V @ 50 mA
  • Supply Protection Circuitry: Protected against reverse polarity and transient overvoltages
  • Spot Size (@ Reference Distance): 7.8 mm x 4.7 mm @ 3000 mm
  • Feature: Analog Output(s): 4 to 20 mA
  • Connection Type: Integral QD
  • Feature: Common Ethernet Protocol: No
  • Feature: Pump-In/Pump-Out: No
  • Feature: Laser Control: Yes
  • Feature: PC Configurable: No
  • Feature: PFM Output: Yes
  • Indicator Type: LED
  • Max Ambient Light: ≤ 5000 lux
  • Warm-Up Time: 10 min
  • Discrete Output Hysteresis: Auto Adjust
