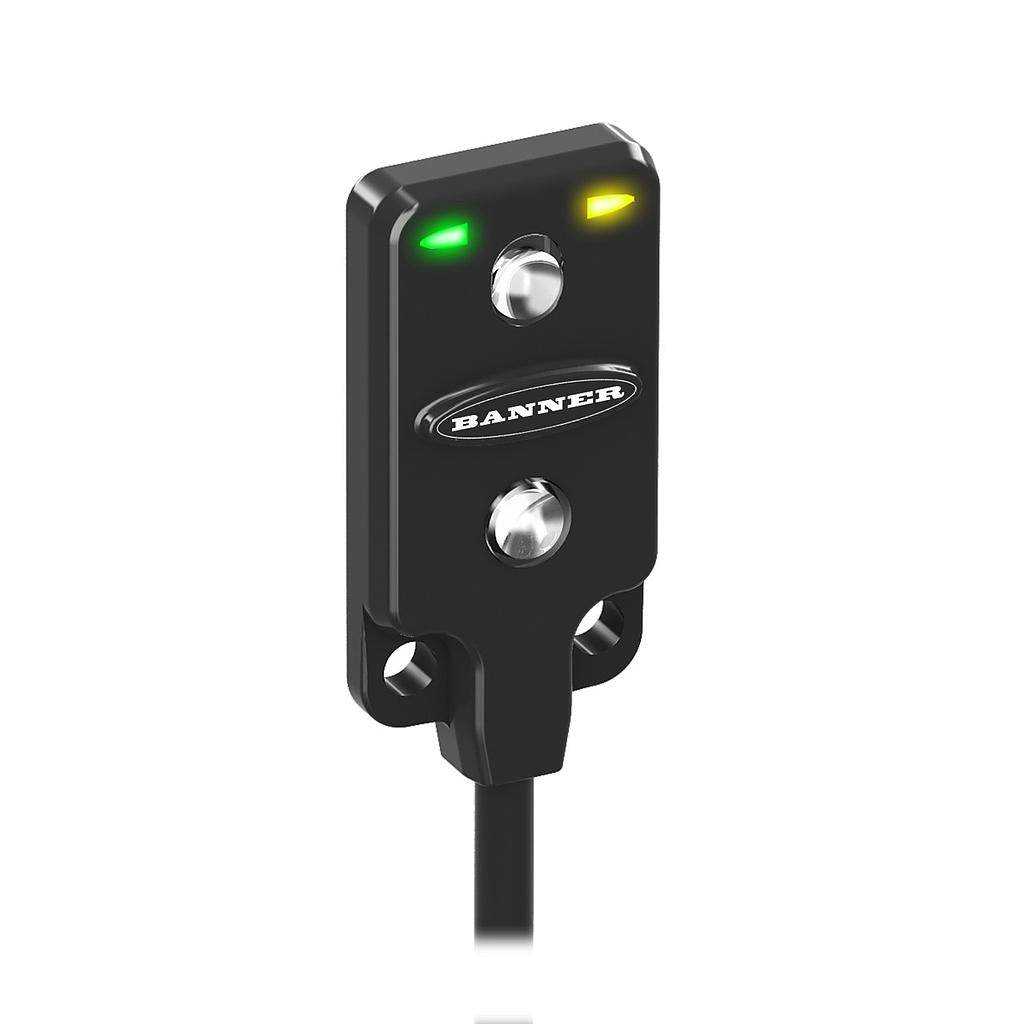

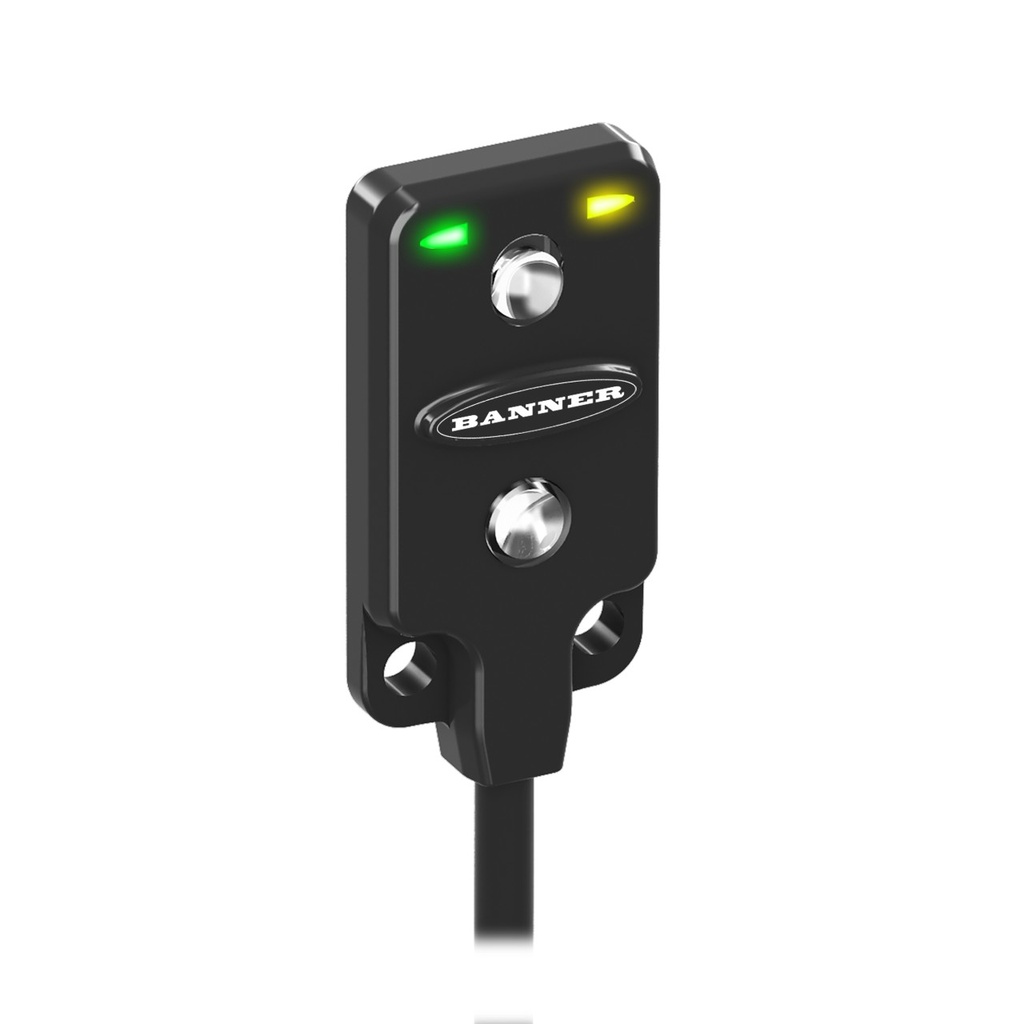

4-PIN EURO 6IN NPN Light Operate (VS2AN5CV15Q5)

https://www.branom.com/web/image/product.template/52235/image_1920?unique=c26756c
(0 review)

Features:

  • VS2AN5CV15Q5 4-PIN EURO 6IN NPN Light Operate
  • Min Operating Temperature: -20 °C
  • Lens Material: MABS
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 100
  • Sensing Beam Wavelength: 660
  • Housing Style: Rectangular
  • Max Sensing Distance: 15 mm
  • Sensing Mode (Detailed): Convergent
  • Sensing Mode (General): Proximity
  • Max Relative Humidity: 80% @ 50 °C
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12 (Euro)
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 1 ms ON/0.5 ms OFF
  • Operation: Light Operate
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection: Pigtail QD
  • NEMA / UL: NEMA 6
  • Indicator Type: LED

$ 140.00 140.0 USD $ 140.00

$ 140.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share

    Features:

    • VS2AN5CV15Q5 4-PIN EURO 6IN NPN Light Operate
    • Min Operating Temperature: -20 °C
    • Lens Material: MABS
    • Power Supply: 10-30 VDC
    • Delay at Power-Up: 100 ms
    • Ingress Protection: IP67
    • Repeatability (µs): 100
    • Sensing Beam Wavelength: 660
    • Housing Style: Rectangular
    • Max Sensing Distance: 15 mm
    • Sensing Mode (Detailed): Convergent
    • Sensing Mode (General): Proximity
    • Max Relative Humidity: 80% @ 50 °C
    • Feature: Hazardous Area: No
    • DeviceNet: No
    • Feature: IO Link: No
    • Feature: Quick Disconnect: Yes
    • Feature: Audible: No
    • Quick Disconnect Type: M12 (Euro)
    • Feature: Chemical Resistant: No
    • Feature: Water Detection: No
    • Number of Pins: 4
    • Output Response Time: 1 ms ON/0.5 ms OFF
    • Operation: Light Operate
    • Adjustments: N/A
    • Feature: Timing (Hold/Delay): No
    • Feature: Encapsulated: No
    • Feature: Remote Teach: No
    • Feature: Intrinsically Safe: No
    • Connection: Pigtail QD
    • NEMA / UL: NEMA 6
    • Indicator Type: LED
