Emergency Stop With Isd: Flush Mount 40 Mm Push Button (SSA-EB1PLXR-0DED1Q8R)
Representative photo. Please check item description for details.

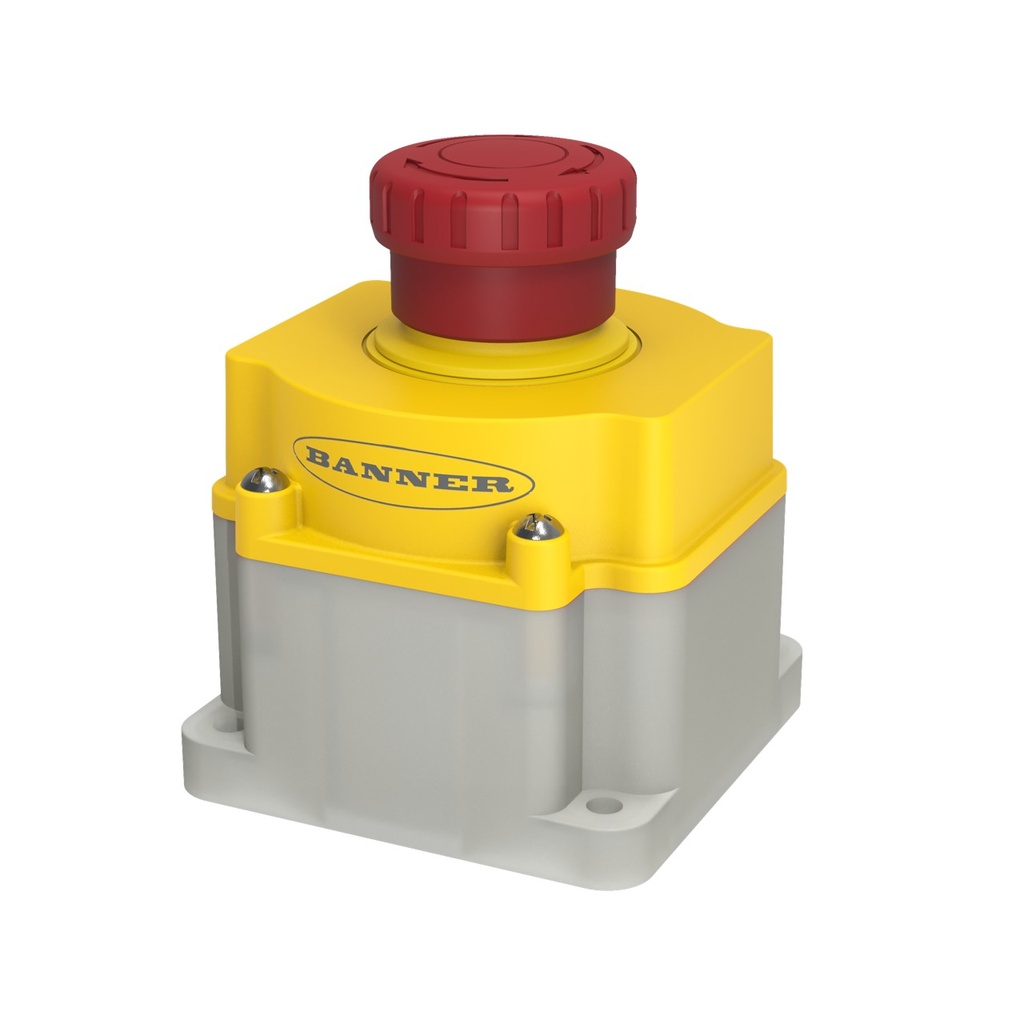

Emergency Stop With Isd: Flush Mount 40 Mm Push Button (SSA-EB1PLXR-0DED1Q8R)

https://www.branom.com/web/image/product.template/202148/image_1920?unique=c26756c
(0 review)

Features:

    Emergency Stop with ISD: Flush Mount 40 mm Push Button; Illuminated Color: Off/Red Flashing; 2 N.C. OSSD Safety Contacts, IP65; 8 Pin Euro-style Quick-Disconnect Connector; Local Reset Input
    • Valve: Actuation: Twist-to-Release
  • Min Operating Temperature: -25 °C
  • Max Operating Temperature: 50 °C
  • Ingress Protection: IP65
  • Housing Style: Base
  • Device Type: Push Button
  • Housing Material_: Polycarbonate
  • Physical Dimensions: 103 x 110 x 81 mm
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M12
  • Contact Quantity: 2 NC OSSD
  • Actuated Color: Red - Flash
  • Actuator/Button Material: Thermoplastic
  • Contact Rating: 24 VDC @ 0.1 A each
  • Mounting Thread/Style: Flat
  • Feature: Illuminated: Yes
  • Feature: Lockable: No
  • Illumination Type: Base
  • Armed Color (Solid): Off
  • Connection Type: M12
  • Button Diameter: 40 mm
  • Feature: Button Shroud: No
  • Feature: In-Series Diagnostics: Yes
  • Feature: Actuation: Twist-to-Release

$ 281.00 281.0 USD $ 281.00

$ 281.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
