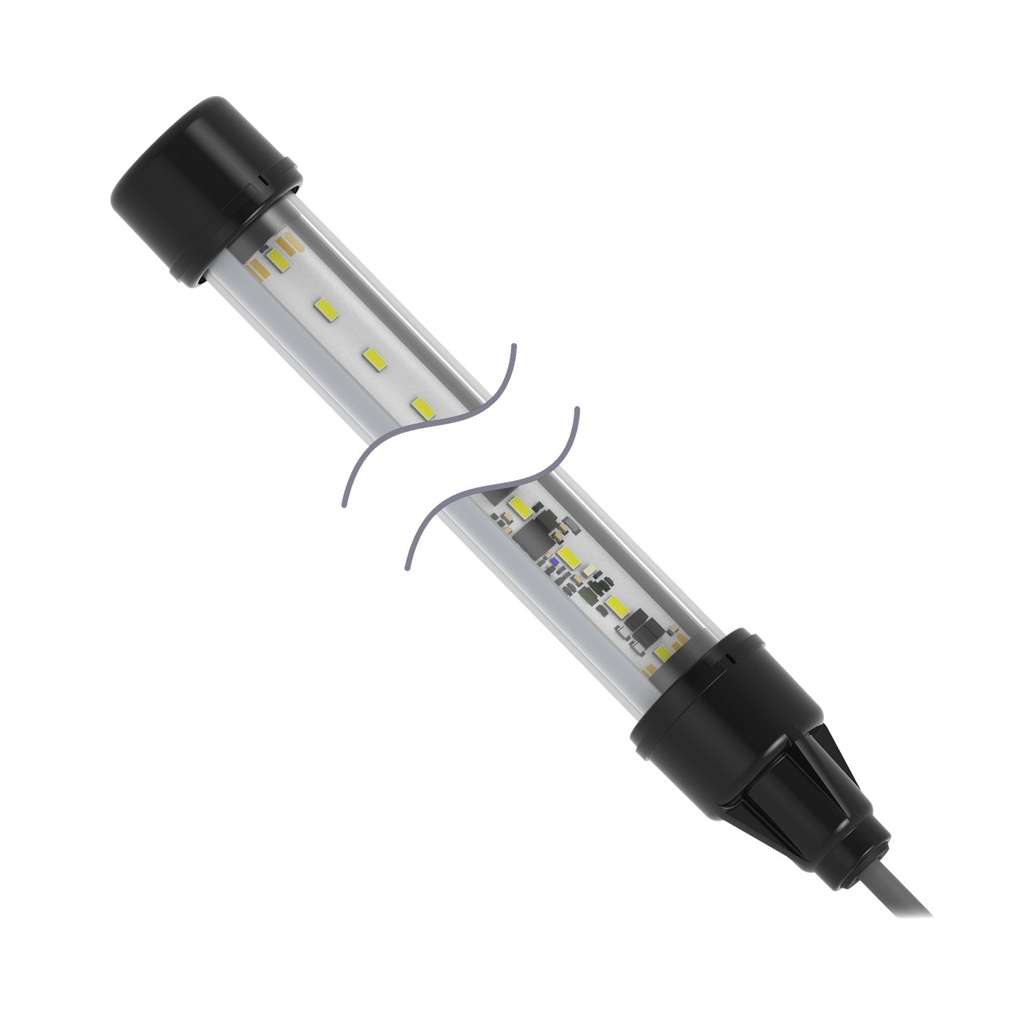

Representative photo. Please check item description for details.
Hls27 Hazardous Location Three Segment Strip Light (HLS27DGYR3S-430C24)
Features:
- HLS27 Hazardous Location Three Segment Strip Light; Length: 430 mm; Voltage: 24 V dc; Environmental Rating: IP66; IP67;; Colors: Green, Yellow, Red; 2m (6.5ft) ITC-ER 4-wire Cable
- Power: DC
- Feature: Display: No
- Feature: Display Lighting: No
- Max Current Color: 600 mA
- Min Operating Temperature: -40 °C
- Max Operating Temperature: 60 °C
- Power Source: VDC
- Ingress Protection: IP66/67
- Housing Style: Linear Strip
- Max Relative Humidity: 90% @ 50 °C (NC)
- Housing Material_: Polycarbonate
- Feature: Hazardous Area: Yes
- Feature: IO Link: No
- Feature: Modbus RTU: No
- Physical Dimensions: 38.1 x 511.0 mm
- Feature: Wireless: No
- Feature: Indication: Yes
- Color Option 3: Red
- Supply Voltage: 24 VDC
- Color Option 2: Yellow
- Feature: Quick Disconnect: No
- Lumens Color 1: 160
- Animation Option 3: Solid On
- Color Technology: Standard LED
- Feature: Audible: No
- Color Option 1: Green
- Animation Option 2: Solid On
- Color 1 - Wavelength/Color Temp/Coordinates: 525 nm
- Color Input Control: Individual (One wire/color, same number of colors as input wires)
- Multi-Color Device: Simultaneous Colors On
- Animation Option 1: Solid On
- Number of Colors / Segments: 3
- Color 3 - Wavelength/Color Temp/Coordinates: 625 nm
- Lumens Color 2: 225
- Lumens Color 3: 75
- Product Size (mm): 27 mm
- Color 2 - Wavelength/Color Temp/Coordinates: 580 nm
- Number of Input Pins/Conductors: 4
- Max Op. Relative NC Humidity: 90% @ 50 °C
- Feature: Pro-Editor Compatible (Discrete): No
- Mounting Thread: No Thread
- Feature: Chemical Resistant: Yes
- Storage Temp: -40 to 70 °C
- Number of Tower Light Segments: 3
- Illuminated Length (LxWxH): 423.0 mm
- Feature: Illumination: Yes
- Connection Type: Cable
- Cord/Cable Length: 2 m
