Illuminated E-Stop Button (Push On) (SSA-EB1PL2-12EB1Q12K50LT)
Representative photo. Please check item description for details.

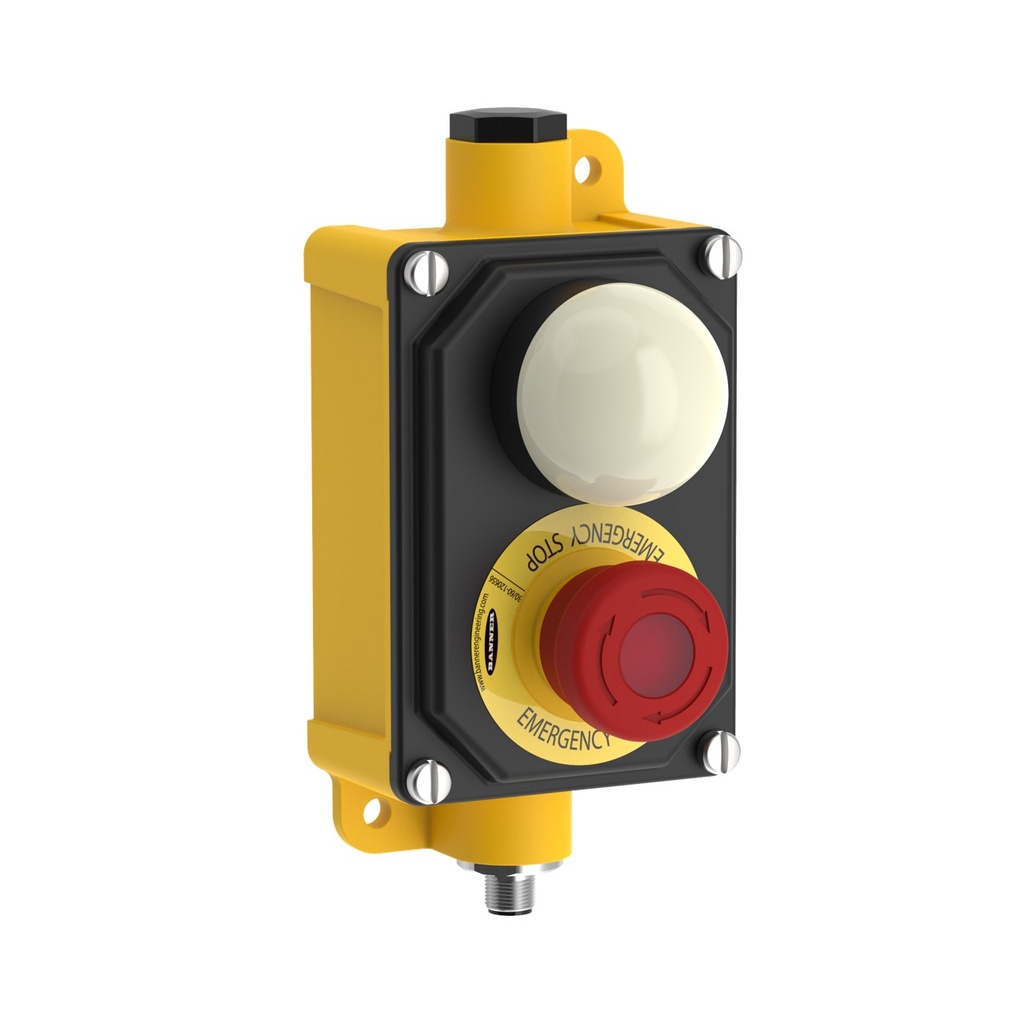

Illuminated E-Stop Button (Push On) (SSA-EB1PL2-12EB1Q12K50LT)

https://www.branom.com/web/image/product.template/203889/image_1920?unique=c26756c
(0 review)

Features:

    Illuminated E-Stop Button (Push On); 2 NC/1 NO; E-Stop Legend; 3 Color K50 Touch, BENC Enclosure; 12-pin Euro QD Left Cable
    • Valve: Actuation: Twist/Pull-to-Release
  • Min Operating Temperature: -25 °C
  • Max Operating Temperature: 50 °C
  • Ingress Protection: IP65
  • Housing Style: Flat
  • Device Type: Push Button
  • Housing Material_: Polycarbonate
  • Feature: Quick Disconnect: Yes
  • Contact Quantity: 2 NC, 1 NO
  • Actuated Color: Red
  • Actuator/Button Material: Thermoplastic
  • Contact Rating: 2 A @ 30 VDC
  • Mounting Thread/Style: Flat
  • Feature: Illuminated: Yes
  • Illumination Type: Button
  • Armed Color (Solid): Off
  • Connection Type: M12
  • Button Diameter: 40 mm
  • Feature: Button Shroud: No
  • Feature: In-Series Diagnostics: No

$ 760.00 760.0 USD $ 760.00

$ 760.00

Not Available For Sale

    This combination does not exist.
