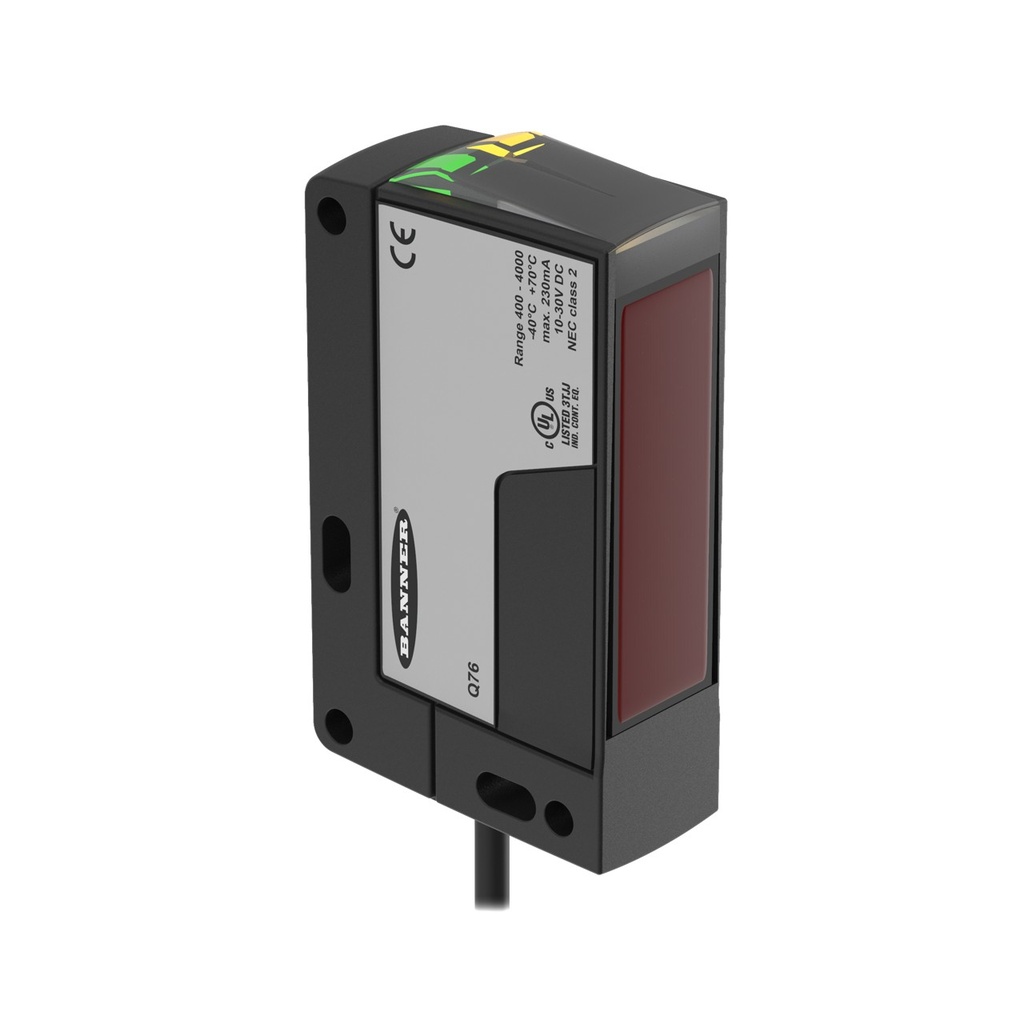

Q76 Expert Wide Beam Non-Polarized Retro Area Detector (Q76E-VN-ZLVC-Q5)
Representative photo. Please check item description for details.

Q76 Expert Wide Beam Non-Polarized Retro Area Detector (Q76E-VN-ZLVC-Q5)

https://www.branom.com/web/image/product.template/204209/image_1920?unique=c26756c
(0 review)

Features:

    Q76 Expert Wide Beam Non-Polarized Retro Area Detector; Range: 0.4 to 4 m; Input 10
  • 30 V dc; Output: Complementary NPN; 200 mm (7.5 in) Pigtail M12 Euro-style Quick Disconnect
    • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 60 °C
  • Lens Material: PMMA
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 300 ms
  • Ingress Protection: IP67/69
  • Sensing Beam: Visible Red LED
  • Sensing Beam Wavelength: 620
  • Housing Style: Rectangular
  • Max Sensing Distance: 4000 mm
  • Sensing Mode (Detailed): Wide Beam Retroreflective (Non-Polarized)
  • Sensing Mode (General): Retroreflective
  • Housing Material_: Thermoplastic
  • Feature: Washdown Rated: Yes
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 2 ms
  • Operation: Light/Dark Operate
  • Adjustments: Teach Button
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Feature: Clear Object Detection: Yes
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Pigtail QD
  • Indicator Type: LED

$ 279.00 279.0 USD $ 279.00

$ 279.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
