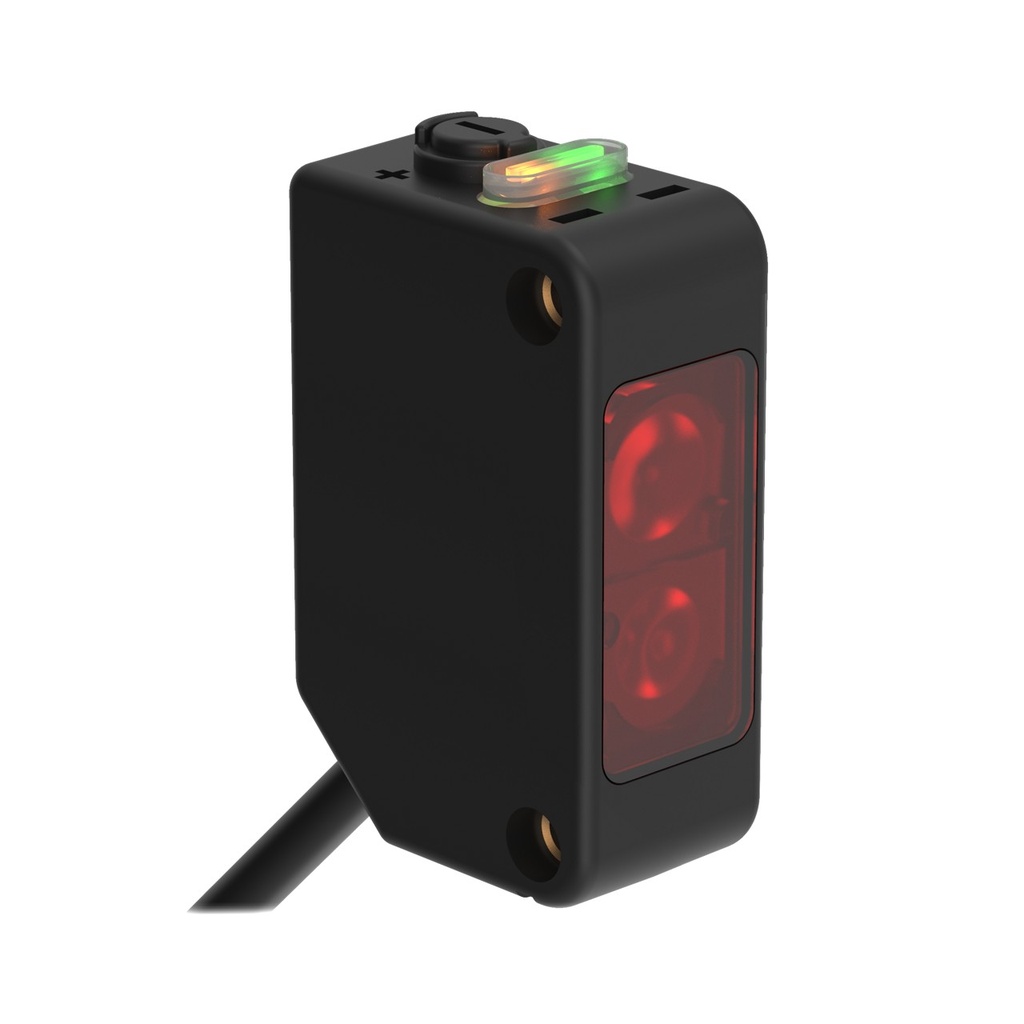

Q20 Series: Retro (Q20NLV-808692)
Representative photo. Please check item description for details.

Q20 Series: Retro (Q20NLV-808692)

https://www.branom.com/web/image/product.template/204072/image_1920?unique=c26756c
(0 review)

Features:

    Q20 Series: Retro; Range: 2 m; Input 10-30 V dc; Output: Complementary Solid State NPN; 2 m (6.5 ft) Cable
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 60 °C
  • Lens Material: N/A
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 155
  • Sensing Beam: Visible Red LED
  • Sensing Beam Wavelength: 645
  • Housing Style: Rectangular
  • Max Sensing Distance: 2000 mm
  • Sensing Mode (Detailed): Non-Polarized
  • Sensing Mode (General): Retroreflective
  • Max Relative Humidity: 95% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: No
  • Feature: Audible: No
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 0.8 ms
  • Operation: Light/Dark Operate
  • Adjustments: Potentiometer
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Cable
  • NEMA / UL: NEMA 6
  • Cord/Cable Length: 2 m
  • Indicator Type: LED
