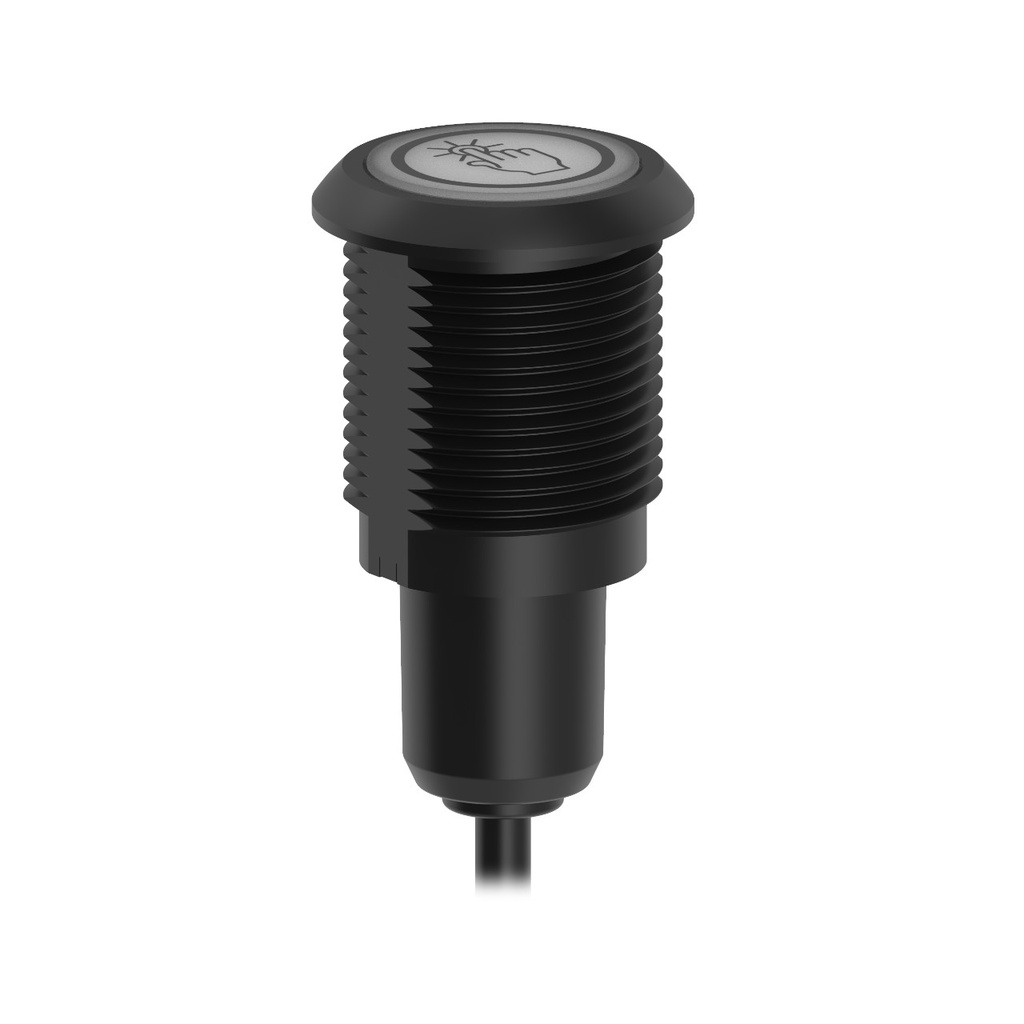

S22 Pro Series: 7-Color Rgb Indicator (S22L2SRGB7-808523)

(0 review)

Features:

Power: DC

Feature: Display Lighting: No
Max Current Color: 70 mA
Power Source: VDC
Ingress Protection: IP66/67/69
Housing Style: Barrel Mount - Flat Window
Feature: Washdown Rated: Yes
Feature: Hazardous Area: No
Feature: IO Link: No
Feature: Modbus RTU: No
Physical Dimensions: 27.3 x 47.8 mm
Feature: Wireless: No
Feature: Indication: Yes
Color Option 3: Blue
Supply Voltage: 10-30 VDC
Color Option 2: Green
Feature: Quick Disconnect: No
Lumens Color 1: 0.4
Color Technology: RGB Configurable
Feature: Audible: No
Color Option 7: Cyan
Color Option 1: Red
Color 1 - Wavelength/Color Temp/Coordinates: 625 nm
Housing Color: Black
Color Input Control: Multiple (One or more wires/color, enables more colors than input wires)
Multi-Color Device: Single Color On
Number of Colors / Segments: 7
Color 3 - Wavelength/Color Temp/Coordinates: 465 nm
Lumens Color 2: 0.9
Lumens Color 3: 0.15
Product Size (mm): 22 mm
Color 2 - Wavelength/Color Temp/Coordinates: 527 nm
Number of Input Pins/Conductors: 5
Input Type: Bimodal (PNP/NPN)
Max Op. Relative NC Humidity: 90% @ 50 °C
Feature: Pro-Editor Compatible (Discrete): Yes
Mounting Thread: M22 x 1.5
Max Input Response Time (ms): 250 ms
Feature: Chemical Resistant: No
Storage Temp: -40 to 70 °C
Color Option 4: Yellow
Color 4 - Wavelength/Color Temp/Coordinates: 571 nm
Color 6 - Wavelength/Color Temp/Coordinates: 0.345, 0.161
Color Option 5: White
Color 5 - Wavelength/Color Temp/Coordinates: 5700K
Lumens Color 5: 2.5
Color 7 - Wavelength/Color Temp/Coordinates: 492 nm
Lumens Color 4: 2.5
Lumens Color 6: 1.2
Lumens Color 7: 2
Wire Selectable Function: Flashing
Color Option 6: Magenta
Feature: I/O Block Compatible: Yes
Connection: Cable
Cord/Cable Length: 2 m
Max Input Response Time: 250 ms
